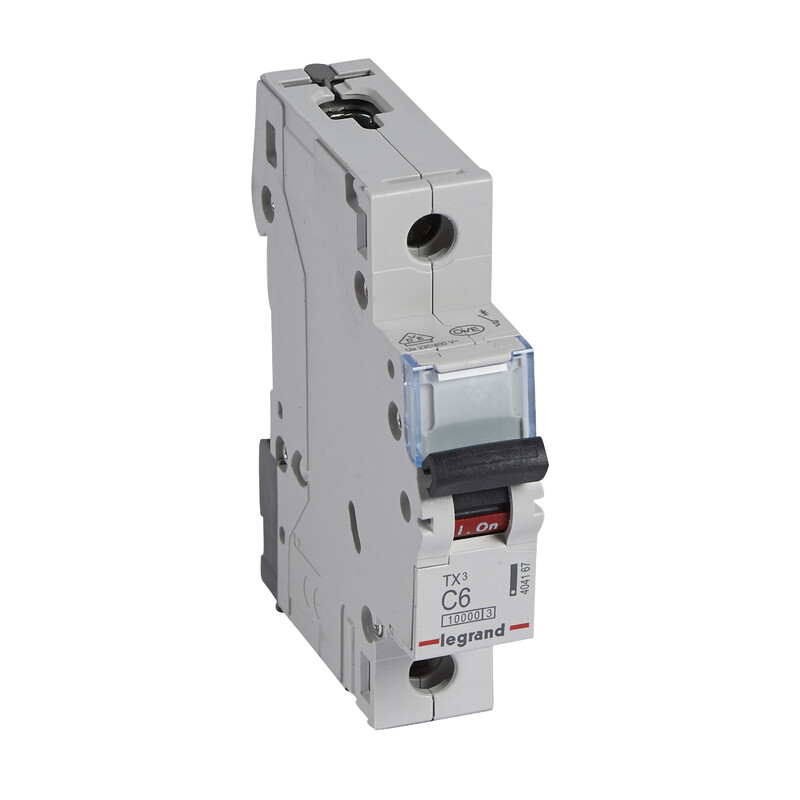

CIRCUIT BREAKER MCB, 1 POLE C6,10KA
Product code
3235063
The magnetic circuit breaker protects installations in buildings and industrial installations against overloads and short circuits. Breaking capacity of 10kA in accordance with IEC 60898-1 standard. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth44 mm
Release characteristicC
Number of poles (total)1
Number of protected poles1
Rated current6 A
Rated voltage230 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Frequency50-60 Hz
Current limiting class3
Flush-mounted installationno
Concurrently switching neutral conductorno
Product codes
SAPHEC585
STK3235063
PLC3235063
GTIN/EAN3414970393494
Manufacturer part number404167
Vendor material number404167
Basic information
Package measurements (L x W x H)184 x 100 x 88 mm
Package volume1.619 l
Package weight1.28 kg
Base uniteach
Package units10 / 3000
Package contents–
UNSPSC39121603
BrandLEGRAND
VendorLEGRAND DANMARK A/S
