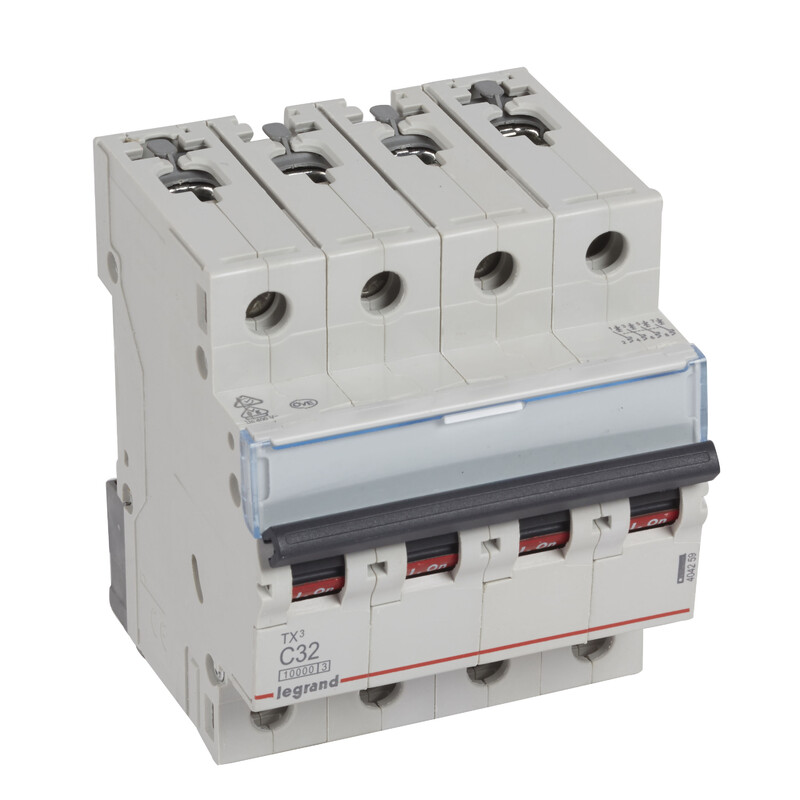

CIRCUIT BREAKER TX3 MCB, 4-POLE, C32, 10KA
Product code
3235234
The magnetic circuit breaker protects installations in buildings against overloads and short circuits. Breaking capacity of 6kA in accordance with IEC 60898-1 standard. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth44 mm
Release characteristicC
Number of poles (total)4
Number of protected poles4
Rated current32 A
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Frequency50 - 60 Hz
Current limiting class3
Flush-mounted installationyes
Concurrently switching neutral conductoryes
Product codes
SAPHEC616
STK3235234
PLC3235234
GTIN/EAN3414970394958
Manufacturer part number404259
Vendor material number3235234
Basic information
Package measurements (L x W x H)70.8 x 88 x 77.8 mm
Package volume0.485 l
Package weight0.531 kg
Base uniteach
Package units1 / 216
Package contents–
UNSPSC39121603
BrandLEGRAND
VendorLEGRAND DANMARK A/S
