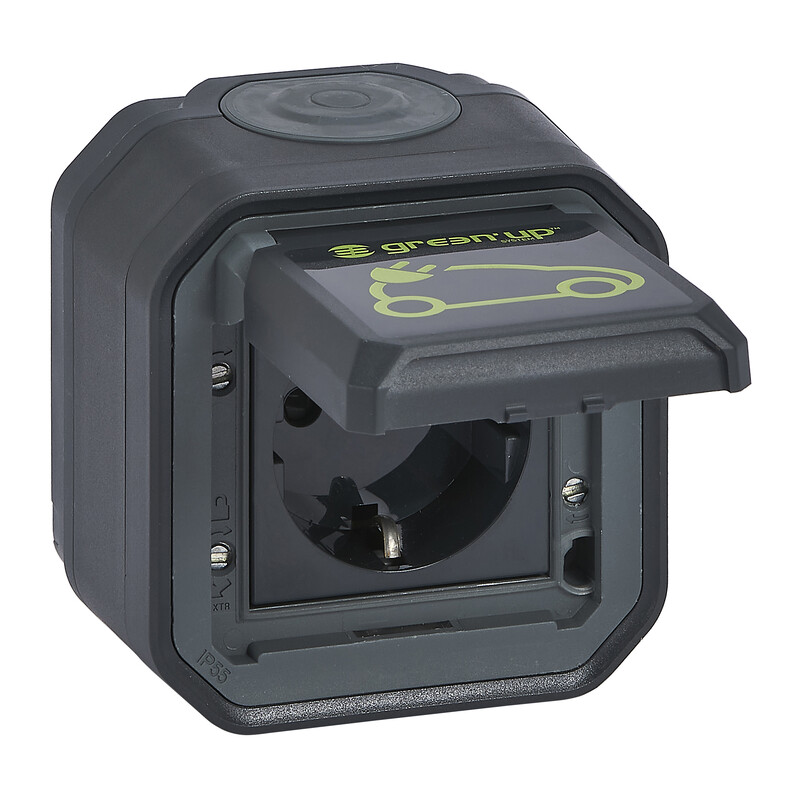

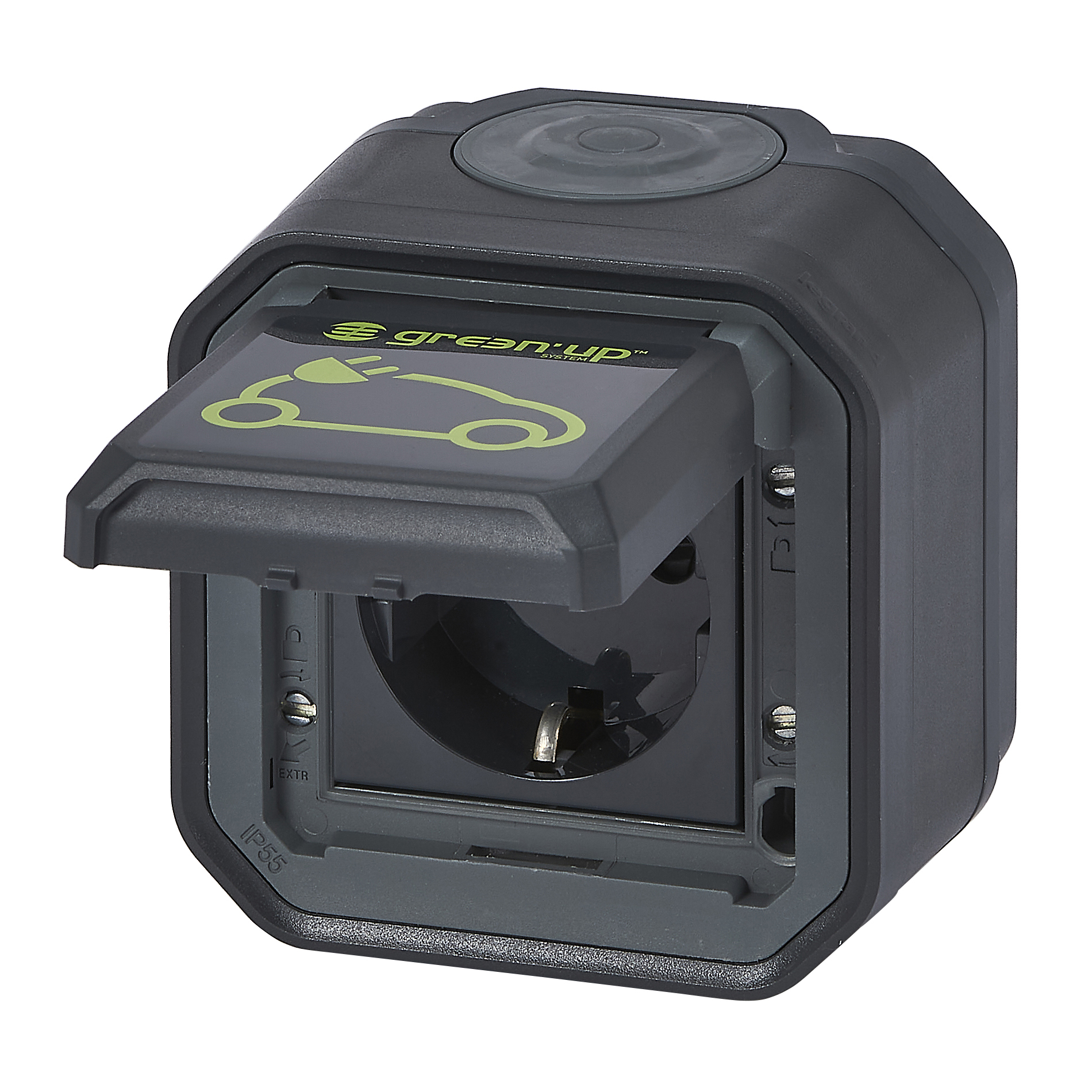

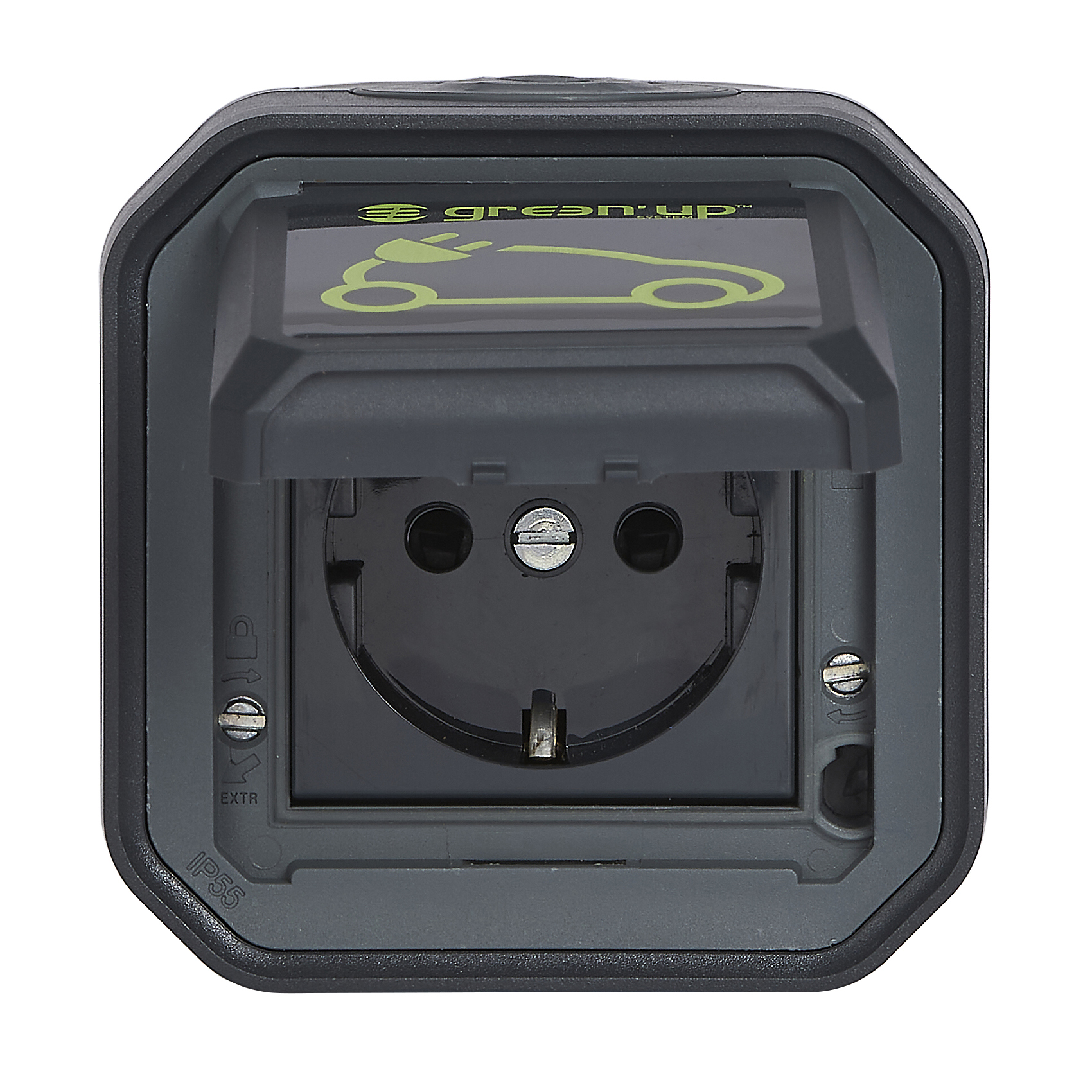

SOCKET OUTLET PLEXO GERM SKT E VEHI ANT SURF
Product code
2407729
Socket for electric vehicle charging, Plexo, 1-gang, Suko, continuous 16A, 230V, IP55, IK08, screw terminals, surface-mounted, anthracite This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Charging connector for electric vehicles (EC002898)
ModelCharging socket outlet
StandardOther
Connection systemScrew connection
With interlocking actuatorno
With access interlockingno
Degree of protection (IP)Other
Width82 mm
Height85 mm
Depth64 mm
Nominal voltage250 V
Max. nominal current16 A
Type of currentAC single phase
LED integratedno
Cross section of the power contacts1.5 - 2.5 mm²
Contact materialOther
Product codes
SAPDHM812
STK2407729
PLC2407729
GTIN/EAN3414972567688
Manufacturer part numberLG-069708L
Vendor material number2407729
Basic information
Package measurements (L x W x H)82 x 85 x 64 mm
Package volume0.446 l
Package weight0.181 kg
Base uniteach
Package units1 / 20 / 200
Package contents–
UNSPSC39122211
BrandLEGRAND
VendorLEGRAND DANMARK A/S
