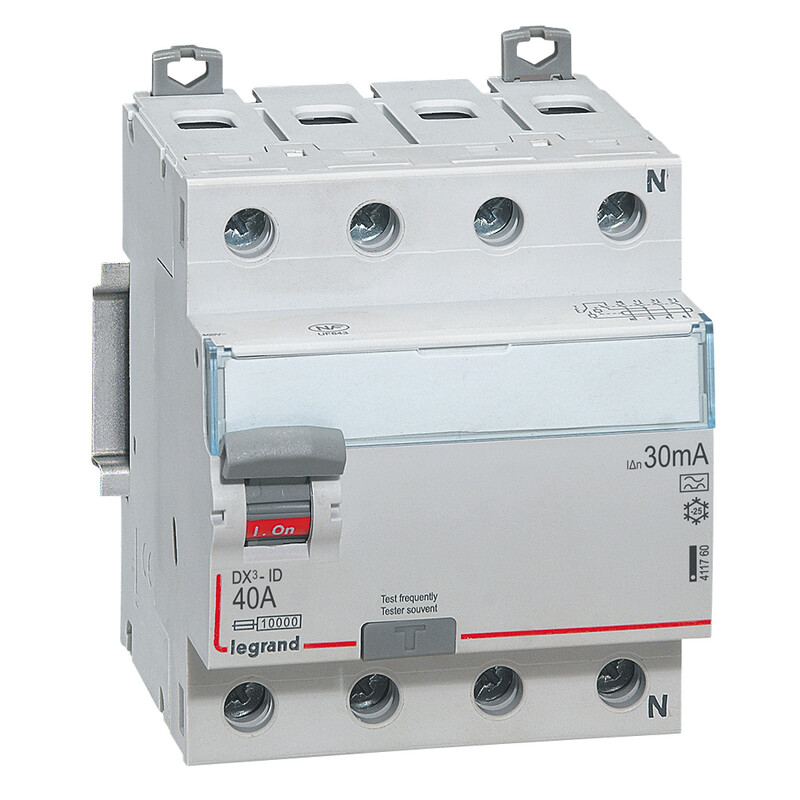

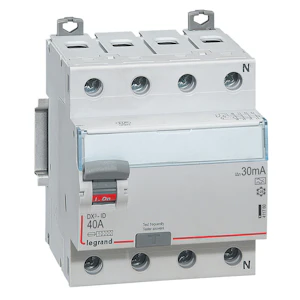

RESIDUAL CURRENT DEVICE DX3 RCCB, 4-POLE, 40A, 30MA
Product code
3235315
The residual current device protects people from direct and indirect contact and from the danger of electric shock. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) (EC000003)
Number of poles4
Rated voltage400 V
Rated current40 A
Rated fault current0.03 A
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Mounting methodDIN rail
Leakage current typeA
Selective protectionno
Short-time delayed trippingno
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity0.25 kA
Voltage typeAC
With interlocking deviceyes
Frequency50 Hz
Product codes
SAPCSL378
STK3235315
PLC3235315
GTIN/EAN3245064117609
Manufacturer part number411760
Vendor material number3235315
Basic information
Package measurements (L x W x H)71.2 x 83 x 77.8 mm
Package volume0.46 l
Package weight0.452 kg
Base uniteach
Package units1 / 12 / 1440
Package contents–
UNSPSC39121614
BrandLEGRAND
VendorLEGRAND DANMARK A/S
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.2058
GWP, uniteach
Source for GWP dataEPD
