COMBINATION LASER LEICA LINO L2G-1

Product code
6436203

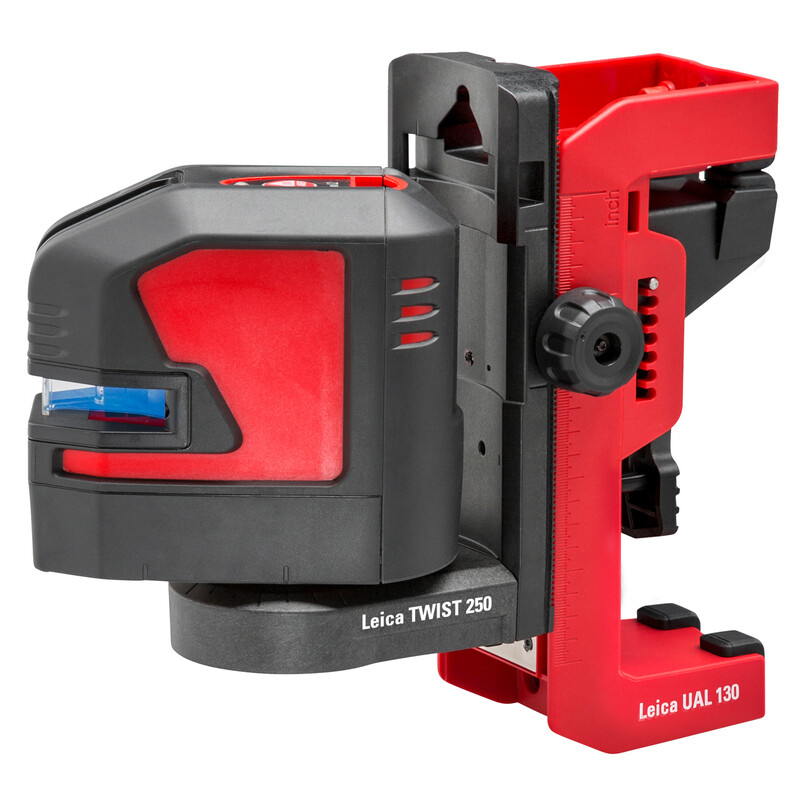

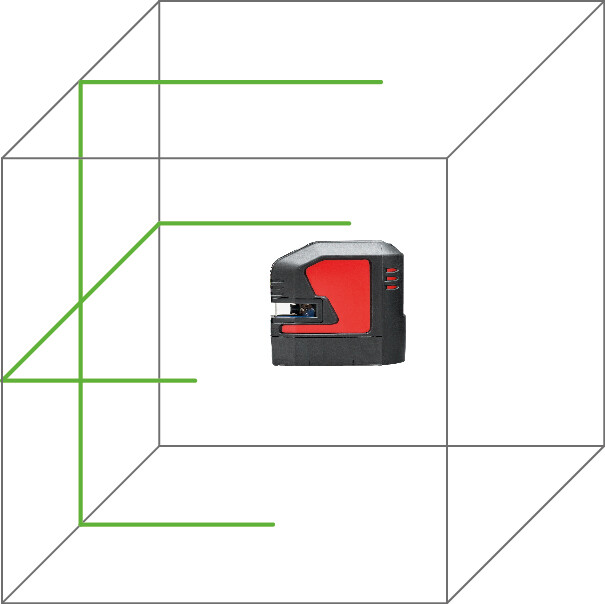

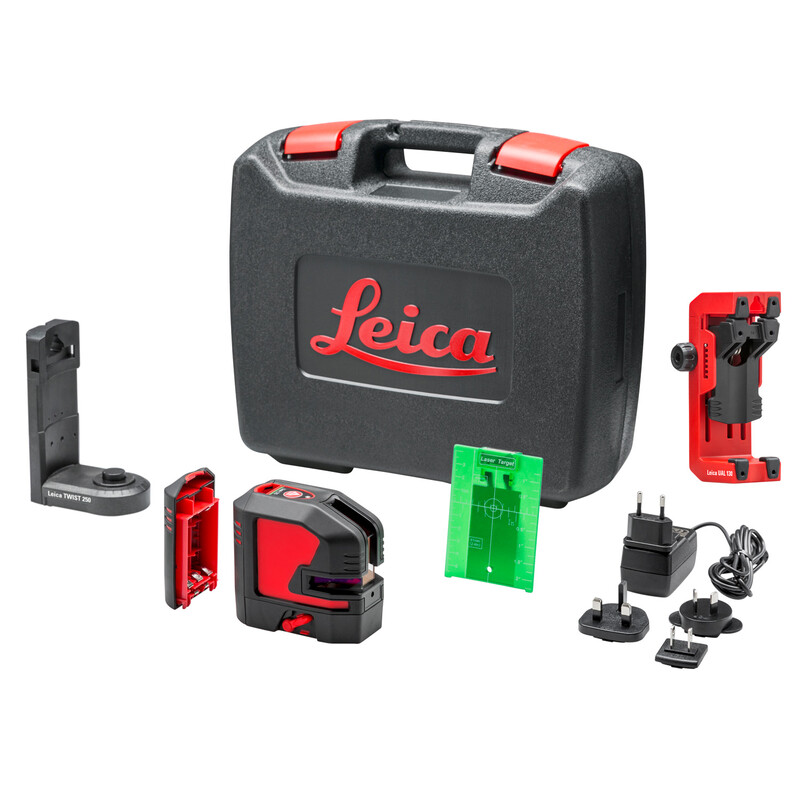

The Leica Lino L2G is a battery-powered cross-line laser with a green laser featuring one vertical and one horizontal laser line. It comes with versatile magnetic mounts and a durable carrying case. Latest green laser technology – excellent visibility even under demanding lighting conditions and at long distances. MAGNETIC SMART MOUNTS Magnetic smart mounts enable fast and precise positioning. The swivel mount is easy to place on corners and trim or attach to iron pipes, rails, or rods. The UAL 130 additional mount allows the device to be secured to edges, metal columns, and rods – ideal for ceiling installations, transfer of reference heights, and complex interior wall structures. TRIPLE POWER CONCEPT The Triple Power system ensures uninterrupted operation. The device operates up to 28 hours on rechargeable Li-Ion batteries. Alternatively, you can use AA alkaline batteries or mains power with the included charger. ALWAYS LEVELS CORRECTLY The Leica Lino L2G is a self-leveling laser that automatically corrects its position if the tilt is within ±4°. If the tilt exceeds this limit, the laser lines flash as a warning of potential measurement error. DESIGNED FOR CONSTRUCTION SITES The Leica Lino L2G is dust and splash-proof (IP54 rating) and is supplied in a durable protective case that keeps all accessories protected and easily transportable on site. Features: • Cross-line laser with horizontal and vertical lines • Excellent visibility thanks to green Ultra-power laser diodes • Wide working area due to extremely wide opening angles • Fully self-leveling • Working range up to 35 meters • Up to 28 hours of operation with Li-Ion battery • Uninterrupted operation thanks to the Triple Power concept • Smart magnetic mounts simplify positioning • Mount with 130 mm height adjustment facilitates height setting • Can be used with the RGR 200 receiver Package contents: Leica Lino L2G, Li-Ion battery pack, charger, TWIST 250 magnetic mount, UAL 130 wall mount, target plate, quick start guide, calibration certificate (blue), durable carrying case. Optional accessories (sold separately): Lino Li-Ion battery pack 5200 mAh / 18.7 Wh, UAL 130 wall mount, TRI 70 tripod, TRI 100 tripod with tiltable head, CLR 290 measuring rod, RGR 200 receiver, GLB 10G green laser glasses. Extended warranty: Register your product within 8 weeks of purchase at www.disto.com/warranty to receive a 3-year warranty (2 years for Li-Ion batteries). This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Laser leveling device (EC000641)
Laser classClass 2
Wavelength525 nm
Laser beam colorGreen
Levelling accuracy+/- 0.2 mm/m
Measured value memoryno
Interfaceno
With remote controlno
With stand holderno
Rotating signalling lineno
Battery typeLithium-ion
Housing colourRed
Degree of protection (IP)IP54
Width370 mm
Height150 mm
Length330 mm

Product codes

SAPDLA958
STK6436203
PLC6436203
GTIN/EAN7640110697535
Manufacturer part number864420
Vendor material number864420

Basic information

Package measurements (L x W x H)380 x 170 x 335 mm
Package volume21.641 l
Package weight3.92 kg
Base uniteach
Package units1
Package contents
UNSPSC41111615
BrandLEICA GEOSYSTEMS
VendorINFRADEX OY
