COMBINATION LASER LEICA LINO L2GS-1
Product code
6436202

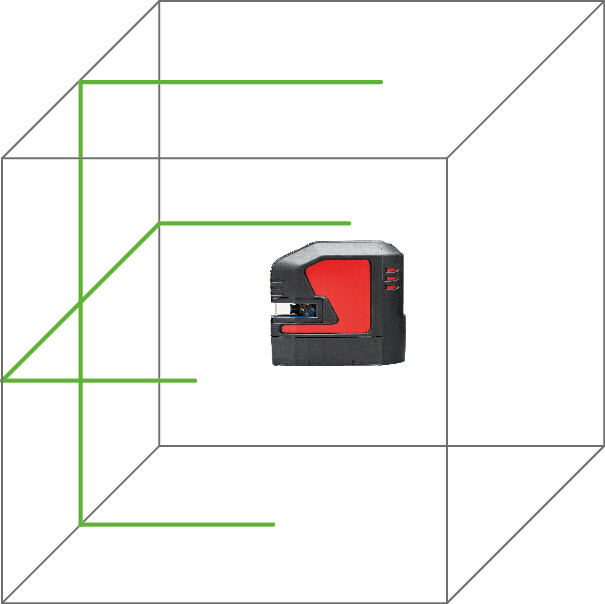

The Leica Lino L2Gs is a battery-powered cross line laser with a green laser featuring one vertical and one horizontal laser line.
New green laser technology – excellent visibility even under demanding lighting conditions and from long distances.
MAGNETIC SMART MOUNTS

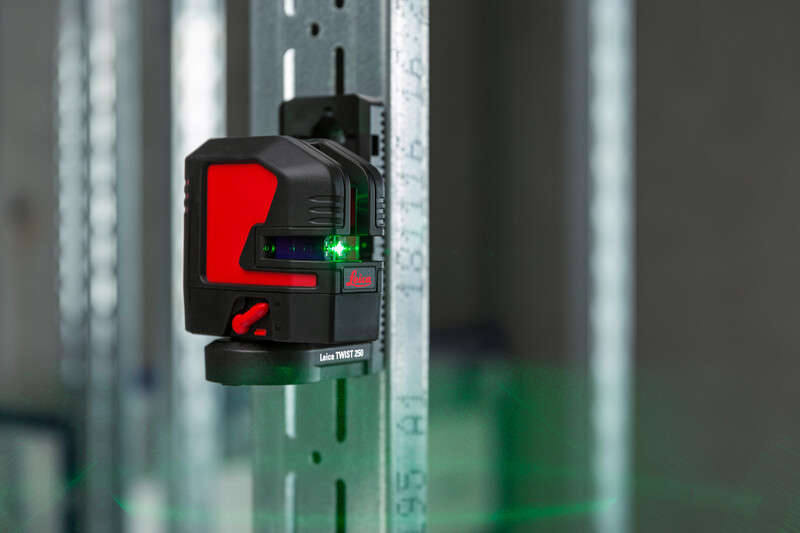

Magnetic smart mounts enable fast and precise positioning. The swivel mount is easy to place on corners and trim or attach to iron pipes, rails, or rods.
TRIPLE POWER CONCEPT
The Triple Power system ensures uninterrupted operation. The Lino L2Gs operates on 3 x AA alkaline batteries, and an optional Li-ion battery pack and mains power charger are available.
ALWAYS LEVELS CORRECTLY
The Leica Lino L2Gs is a self-leveling laser that automatically corrects its position if the tilt is within ±4°. If the tilt exceeds this limit, the laser lines flash as a warning of potential measurement error.
DESIGNED FOR CONSTRUCTION SITE USE
The Leica Lino L2Gs is dust and splash protected (IP54 rating).
Features:
• Cross line laser with horizontal and vertical lines
• Excellent visibility thanks to green Ultra-power laser diodes
• Wide working area due to extremely wide opening angles
• Fully self-leveling
• Working range up to 35 meters
• Battery-powered: 3 x AA alkaline batteries
• Smart magnetic mounts simplify positioning

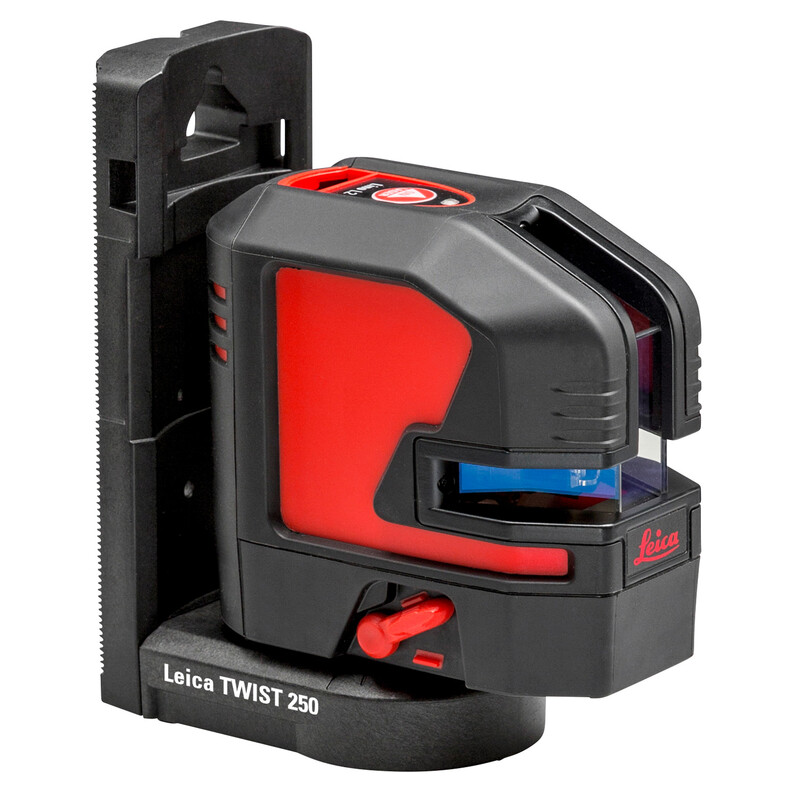

• Mount with 130 mm height adjustment facilitates height adjustment
• Can be used with the RGR 200 receiver

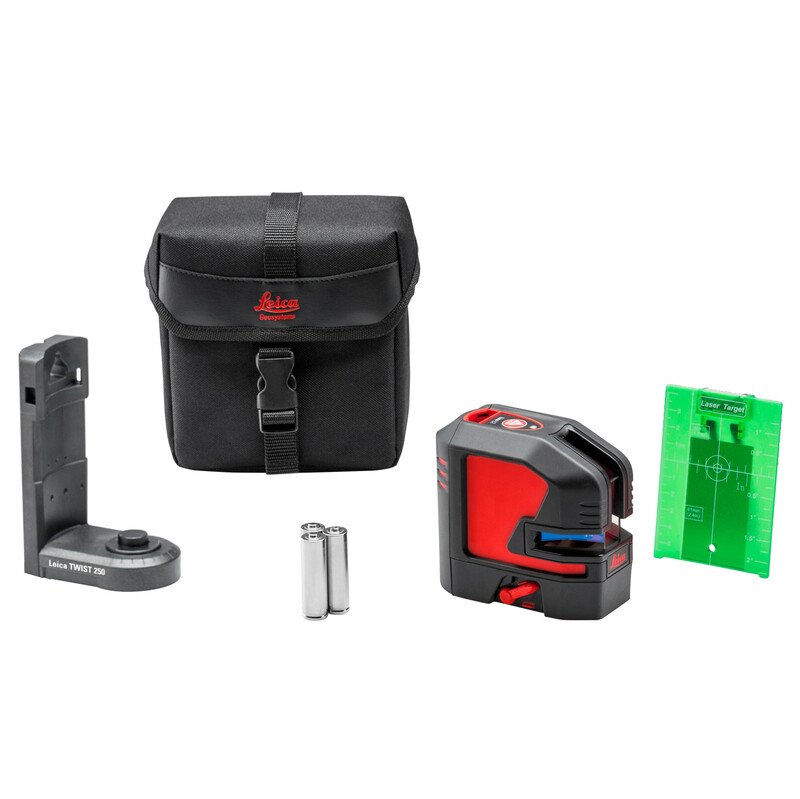

Package contents: Leica Lino L2Gs, Battery compartment for alkaline batteries, 3 x AA alkaline batteries, TWIST 250 magnetic mount, Target plate, Quick start guide, Calibration certificate (blue), Protective case
Optional accessories (sold separately): Lino Li-Ion battery pack 5200 mAh / 18.7 Wh, UAL 130 wall mount, TRI 70 tripod, TRI 100 tripod with tiltable head, CLR 290 measuring rod, RGR 200 receiver, GLB 10G green laser glasses
Extended warranty: Register your product within 8 weeks of purchase at www.disto.com/warranty to enjoy a 3-year warranty. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Laser leveling device (EC000641)
Laser classClass 2
Wavelength525 nm
Laser beam colorGreen
Levelling accuracy+/- 0.2 mm/m
Measured value memoryno
Interfaceno
With remote controlno
With stand holderno
Rotating signalling lineno
Battery typeOther
Housing colourRed
Degree of protection (IP)IP54
Width110 mm
Height100 mm
Length60 mm
Product codes
SAPDLA957
STK6436202
PLC6436202
GTIN/EAN7640110699928
Manufacturer part number912932
Vendor material number912932
Basic information
Package measurements (L x W x H)190 x 168 x 95 mm
Package volume3.032 l
Package weight1.2 kg
Base uniteach
Package units1
Package contents–
UNSPSC41111615
BrandLEICA GEOSYSTEMS
VendorINFRADEX OY
