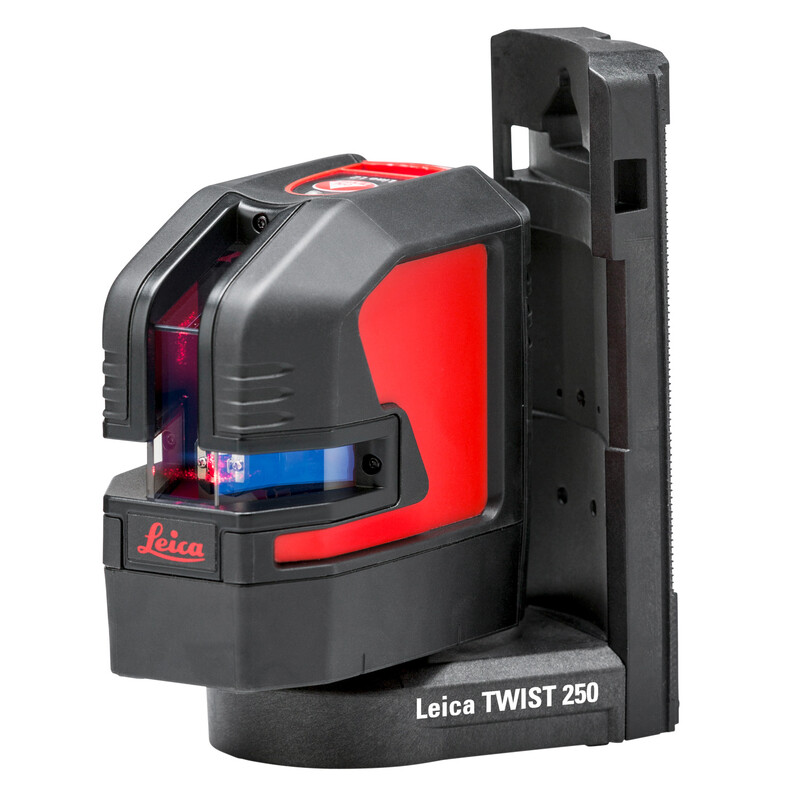

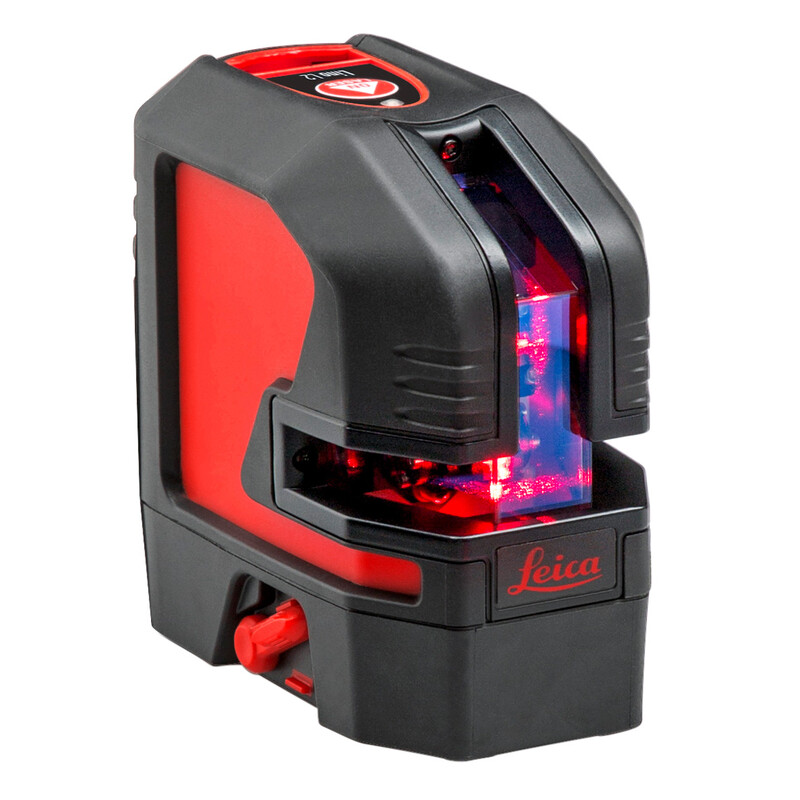

COMBINATION LASER LEICA LINO L2S-1

Product code
6436200

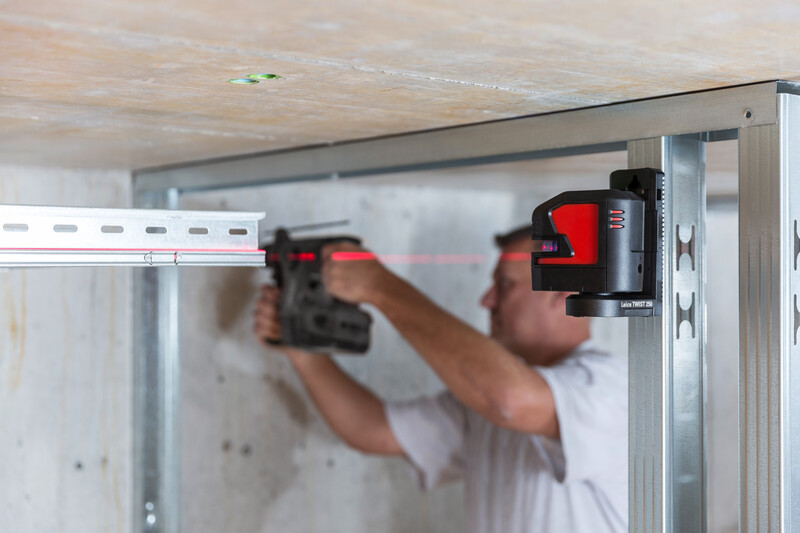

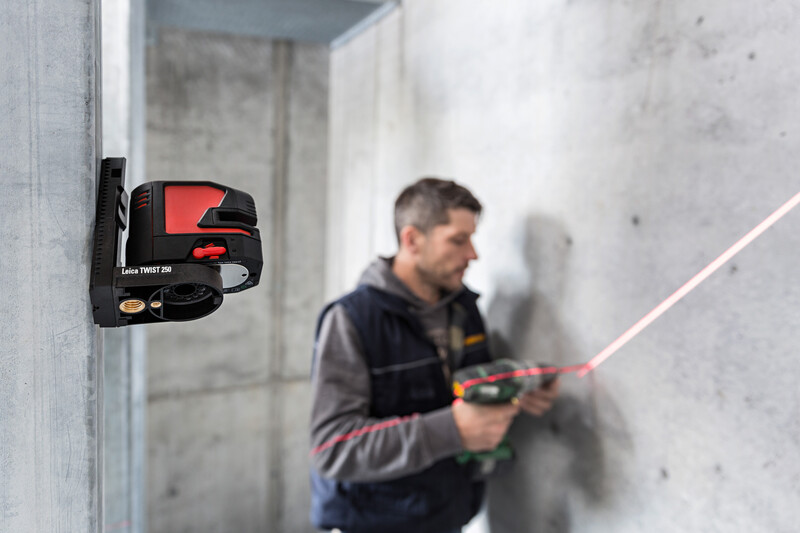

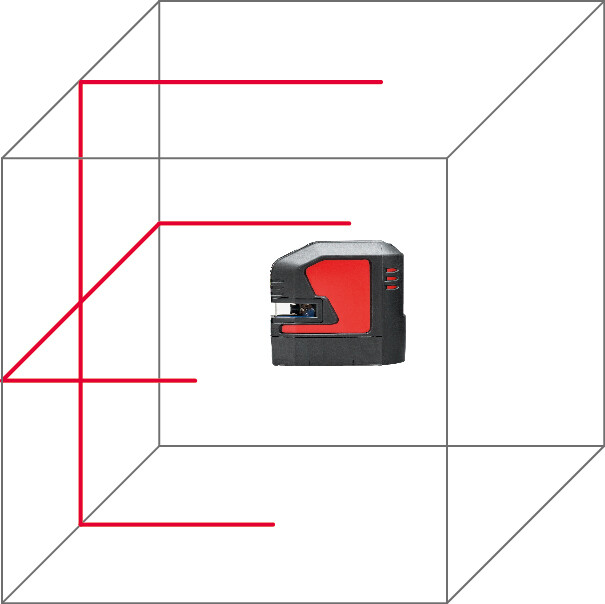

The Leica Lino L2s is a battery-powered cross-line laser with a red laser beam featuring one vertical and one horizontal laser line. Forget time-consuming and cumbersome wall line marking. Precise laser lines are quickly and effortlessly projected – allowing you to start work immediately. EXCELLENT LASER LINE VISIBILITY High-quality optical components ensure excellent laser line visibility up to 25 meters depending on lighting conditions. Exceptionally long horizontal and vertical lines are projected onto floors, walls, and ceilings over an angle of more than 180 degrees. TRIPLE POWER CONCEPT The Triple Power system ensures uninterrupted work. The Lino L2s operates on 3 x AA alkaline batteries, and an optional Li-ion battery pack and mains power adapter are available. MAGNETIC SMART MOUNTS Smart mounts enable fast and accurate positioning. Rotatable mounts easily rest on corners and trim or attach to iron pipes, rails, and rods. AUTO-LEVELING The Lino L2s automatically levels itself if slightly tilted (±4°). If the tilt exceeds this range, the device visually alerts you to prevent errors. Features: • Cross-line laser with horizontal and vertical lines • Excellent visibility thanks to ultra-power red laser diodes • Wide working area due to extremely wide opening angles • Fully auto-leveling • Operating range up to 25 meters • Battery-powered: 3 x AA alkaline batteries • Smart magnetic mounts simplify positioning • Compatible with RGR 200 laser receiver Package contents: Leica Lino L2, Battery compartment for alkaline batteries, 3 x AA alkaline batteries, TWIST 250 magnetic mount, Target plate, Quick start guide, Calibration certificate (blue), Protective case Optional accessories (sold separately): Lino Li-Ion battery pack 5200 mAh / 18.7 Wh, UAL 130 wall mount, TRI 70 tripod, TRI 100 tripod with tilting head, CLR 290 measuring rod, RGR 200 receiver, GLB 10R red laser glasses Extended warranty: Register your product within 8 weeks of purchase at www.disto.com/warranty to enjoy a 3-year warranty. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Laser leveling device (EC000641)
Laser classClass 2
Wavelength635 nm
Laser beam colorRed
Levelling accuracy+/- 0.2 mm/m
Measured value memoryno
Interfaceno
With remote controlno
With stand holderno
Rotating signalling lineno
Battery typeOther
Housing colourRed
Degree of protection (IP)IP54
Width110 mm
Height100 mm
Length60 mm

Product codes

SAPDLA955
STK6436200
PLC6436200
GTIN/EAN7640110697511
Manufacturer part number848435
Vendor material number848435

Basic information

Package measurements (L x W x H)188 x 165 x 95 mm
Package volume2.947 l
Package weight1.2 kg
Base uniteach
Package units1

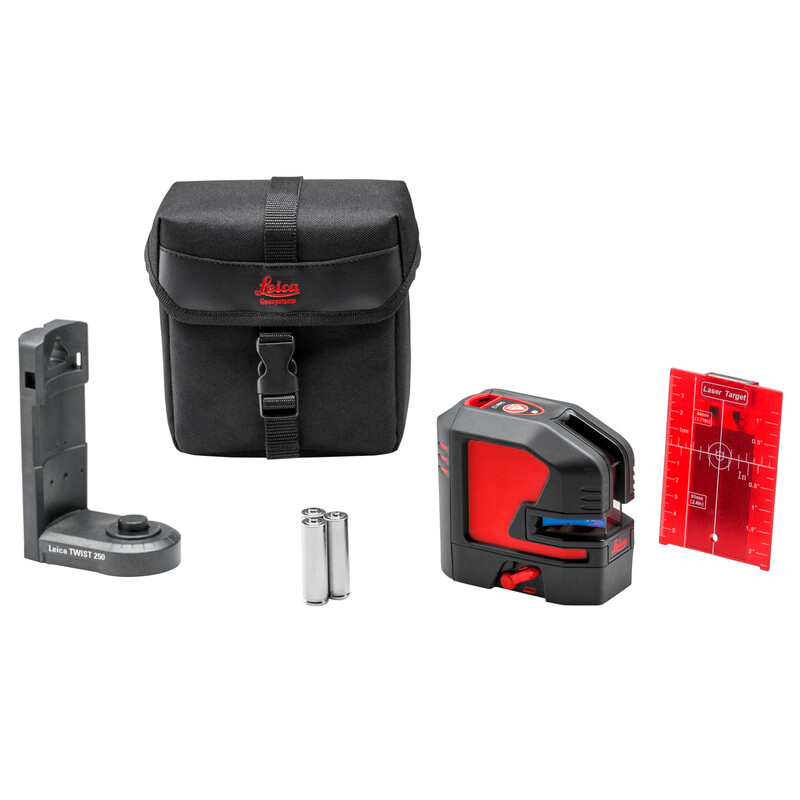

Package contents
UNSPSC41111615
BrandLEICA GEOSYSTEMS
VendorINFRADEX OY
