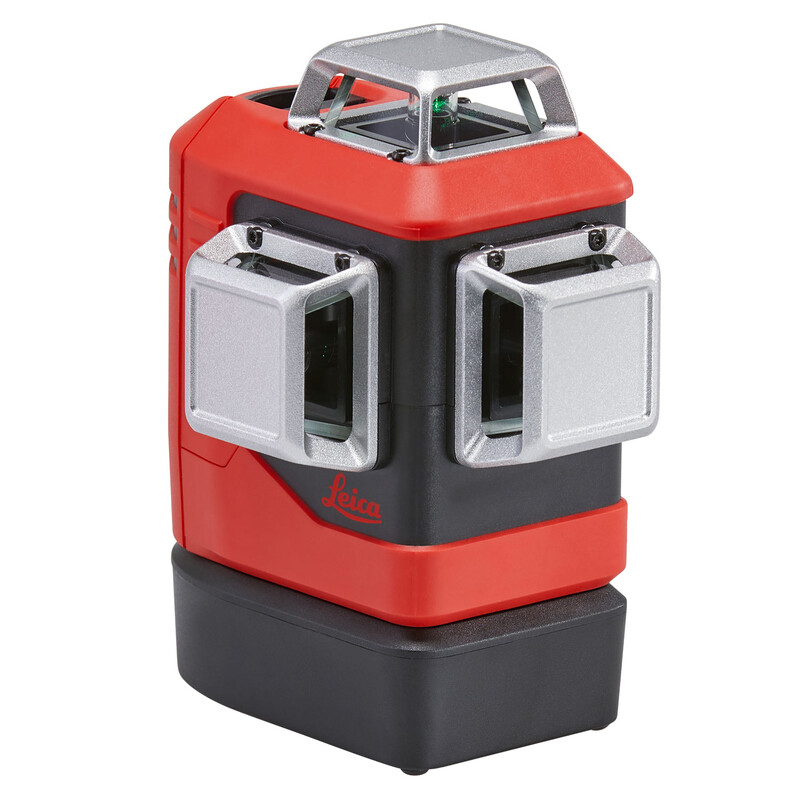

COMBINATION LASER LEICA LINO L6GS-1

The Leica Lino L6Gs is a battery-powered cross-line laser with a green laser and 3 x 360° laser lines.

Projection of 360° green laser lines for multi-directional alignment – perfect for large and bright spaces. The vertical laser lines can be easily adjusted when the plumb point (the intersection of the two vertical lines) located outside the device is set in place.

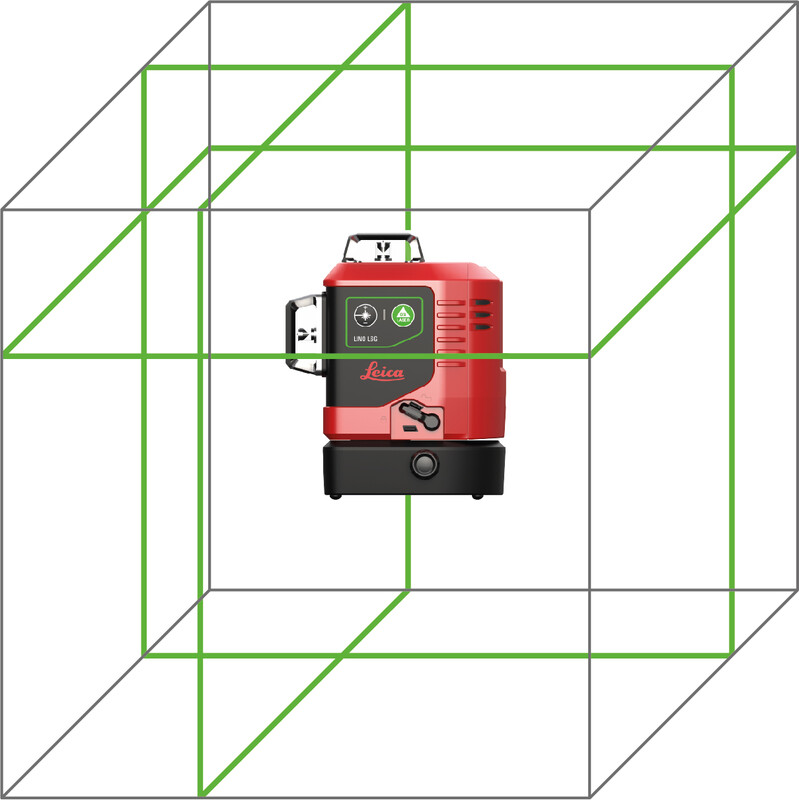

3 x 360° VISIBLE GREEN LASER LINES

Three extremely bright, thin, and sharp 360° green laser lines are up to four times more visible than red lines, making them ideal for bright and large work environments.

EASY TO SET UP AND POSITION

The vertical laser lines can be precisely adjusted once the plumb point is in place. The device’s integrated base plate enables accurate positioning of the intersection point of the vertical lines, and the lines can be adjusted ±10° while keeping the plumb point fixed.

CONTINUOUS OPERATION

The Triple Power concept ensures uninterrupted work, with a Li-Ion battery providing up to 11 hours of operation. Laser power can be adjusted (100%, 75%, 50%), which also reduces line brightness and extends battery life. Alternatively, alkaline batteries or mains power can be used.

WORKING RANGE

The green laser lines extend up to a 70-meter diameter, making the L6Gs ideal for large and bright spaces. The working range can be extended up to 140 meters with the RGR 200 receiver.

DESIGNED FOR JOB SITE CONDITIONS

The impact-resistant construction and dust and splash protection (IP54) make this device an excellent choice for construction sites.

MULTI-DIRECTIONAL ALIGNMENT

The adjustment handles and the device’s eccentric base plate allow the laser lines to be rotated ±10° around the plumb point while keeping the lines in place – enabling fast and precise setup for alignment, verticality, leveling, and squaring.

SAVE SETTINGS

You can individually select which of the three 360° green laser lines activate upon startup. The device’s memory retains the settings and brightness levels – ready to use immediately upon power-on.

AUTO-LEVELING

The Lino L6Gs automatically adjusts its position when tilted up to ±4° – without manual alignment.

Features

• One horizontal and two vertical 360° green laser lines
• Best visibility thanks to Ultra-Power green laser diodes
• Auto-leveling within ±4°
• Fixed plumb point thanks to integrated base
• Laser line intensity adjustable
• Working range up to 35 m (up to 140 m with receiver)
• Up to 11 hours operation with Li-Ion battery
• Triple Power power supply concept

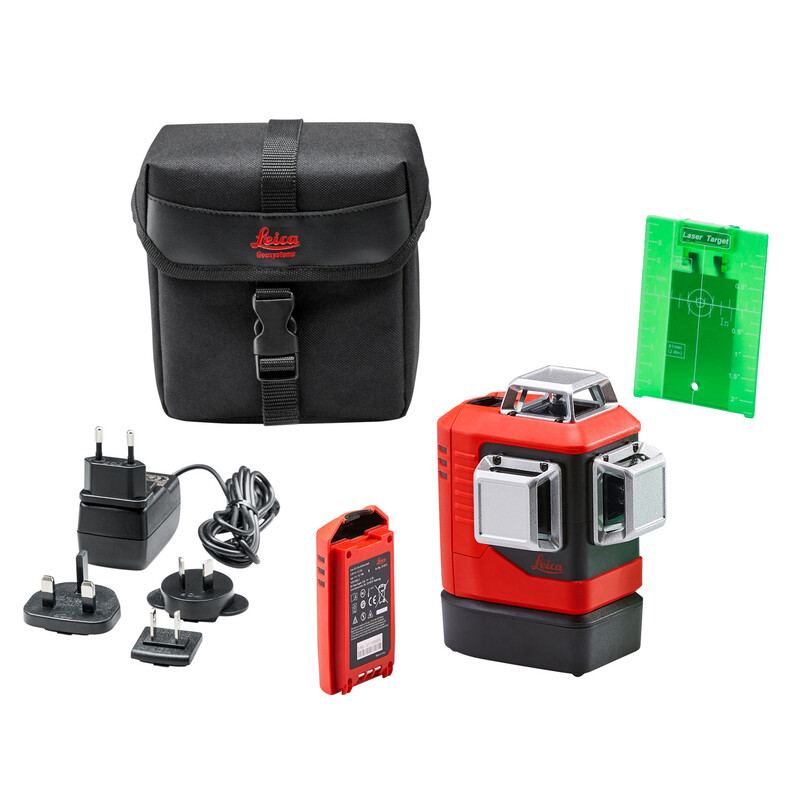

Package contents

• Leica Lino L6G
• Li-Ion battery pack
• Charger for Li-Ion battery
• Battery case for alkaline batteries
• Target plate
• Quick start guide
• Calibration certificate (blue)
• Protective case

Optional accessories (sold separately)

• Lino Li-Ion battery pack 5200 mAh / 18.7 Wh
• Twist 250 magnetic mount
• UAL 130 wall mount
• TRI 70 tripod
• TRI 100 tripod with tiltable head
• CLR 290 measuring rod
• RGR 200 receiver
• Safety strap for drop protection

Extended warranty: Register your product within 8 weeks of purchase at www.disto.com/warranty to receive a 3-year warranty (2 years for Li-Ion batteries).

This product description is an automated translation of the original Finnish description.
