COMBINATION LASER LEICA LINO L6R-1

Leica Lino L6R – 3x360° red multi-line laser

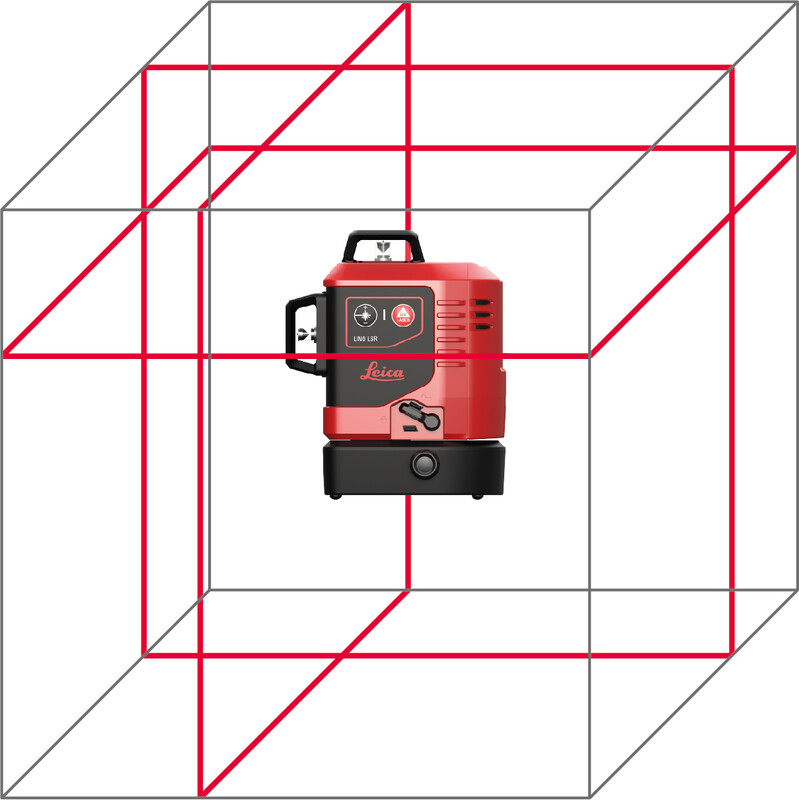

The Leica Lino L6R is a professional multi-line laser that projects one horizontal and two vertical 360° lines. These lines create precise 90° angles and alignments throughout the entire room, making it an excellent tool for construction and interior fitting tasks.

Red Ultra-power laser diodes ensure excellent visibility even in brighter indoor environments. The self-leveling mechanism operates within a range of ±4° and corrects errors in less than three seconds. Additionally, the user can adjust the laser line brightness (100%, 75%, or 50%), extending operating time and adapting the device to various working conditions.

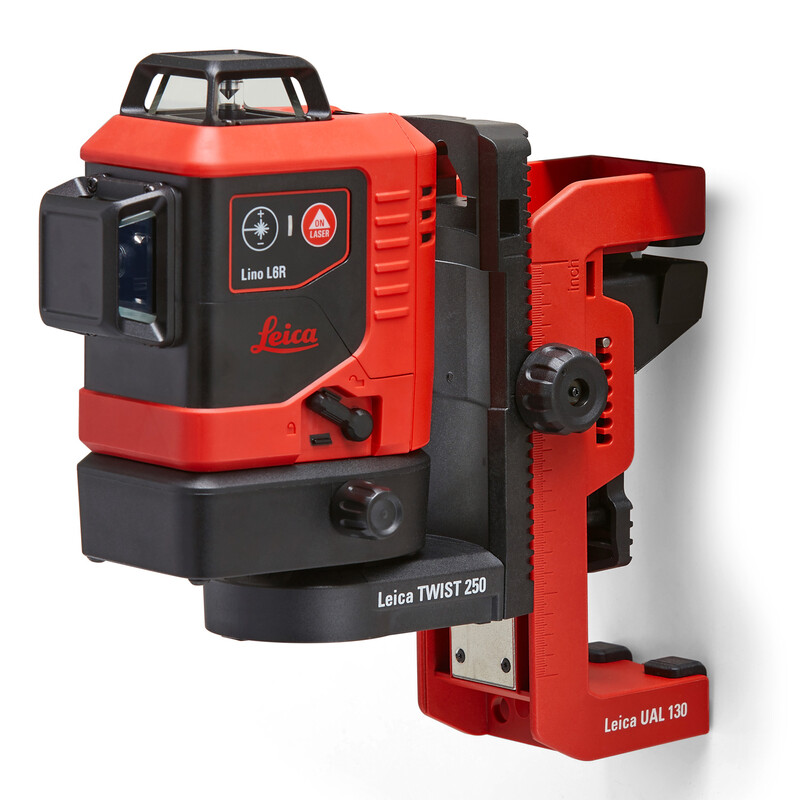

The Leica Lino L6R operates on a Li-Ion battery for up to 36 hours and supports the Triple-Power concept, meaning it can be powered by a Li-Ion battery, AA batteries, or mains electricity. The included smart magnetic adapters enable fast and accurate mounting on various surfaces, and the fixed base provides a permanent reference point.

The laser’s operating range is up to 25 meters, and when used with the Leica RGR 200 receiver, the range extends to 70 meters (diameter 140 m). The device’s IP54 rating protects against dust and water splashes, making it well-suited for demanding job site conditions.

Technical specifications briefly

• 1x horizontal line and 2x vertical 360° lines
• Range: 25 m (50 m diameter), with receiver up to 70 m (140 m diameter)
• Leveling accuracy: ±0.2 mm/m
• Line width at 5 m distance: < 2 mm
• Self-leveling range: ±4°, leveling time < 3 s
• Operating time with Li-Ion battery up to 36 h (at 50% power)
• IP54 dust and splash protection
• Dimensions 124 × 107 × 154 mm, weight 781 g
• Operating temperature –10...+50 °C

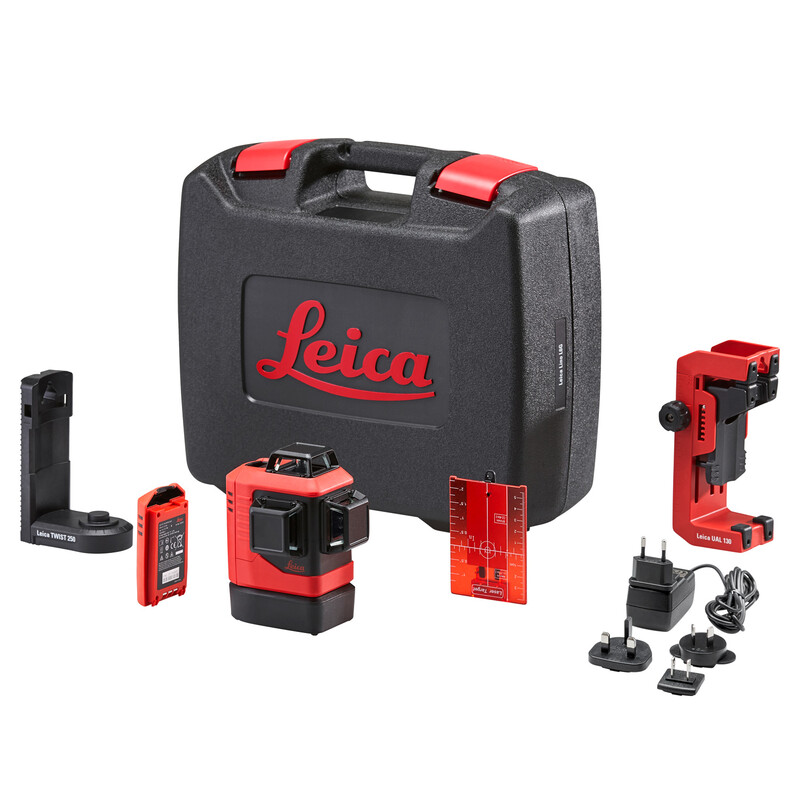

Delivery contents: The Leica Lino L6R is delivered in a robust transport case containing the Twist 250 magnetic adapter, UAL 130 wall adapter, Li-Ion battery and charger, AA battery holder, target plate, quick start guide, and calibration certificate

Additional accessories (sold separately): Lino Li-Ion battery pack 5200 mAh / 18.7 Wh, Twist 250 magnetic mount, UAL 130 wall mount, TRI 70 tripod, TRI 100 tripod with tilting head, CLR 290 measuring rod, RGR 200 receiver, safety strap for drop protection

Extended warranty: Register your product within 8 weeks of purchase at www.disto.com/warranty to receive a 3-year warranty.
