COMBINATION LASER LEICA LINO P5-1

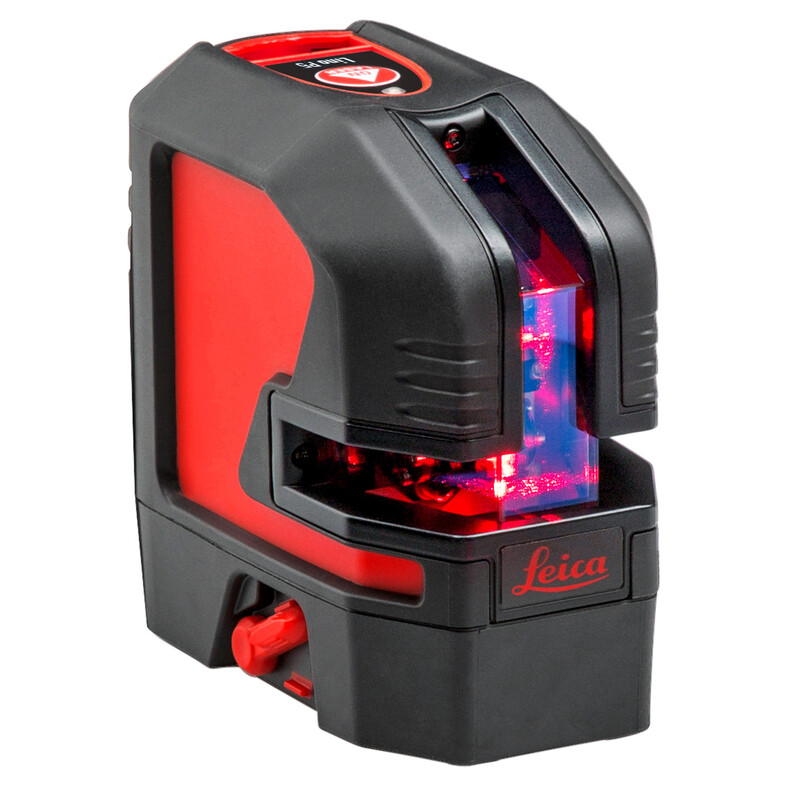

The Leica Lino P5-1 is a compact five-point laser designed for demanding vertical and angular alignment tasks.

The Leica Lino P5-1 is designed for precise positioning and transfer tasks on construction sites and interior fit-outs. It projects five laser points – up, down, forward, right, and left – forming accurate 90° angles with each other. Ultra-Power red laser points ensure excellent visibility even in challenging conditions.

PRECISE LASER POINTS

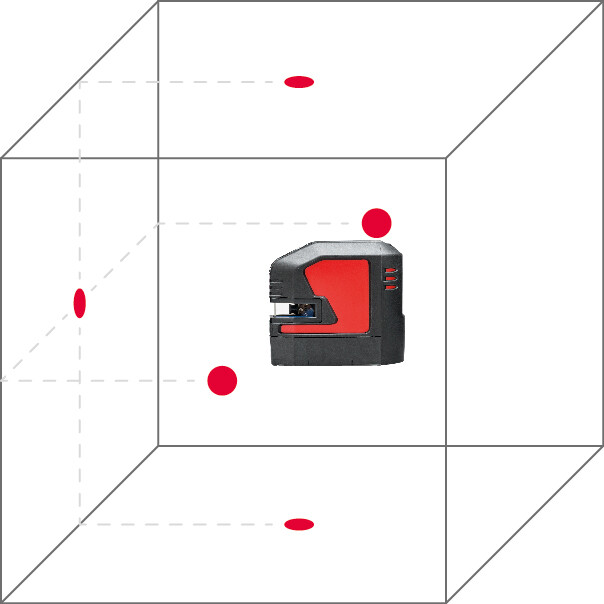

Five precise laser points (up, down, forward, right, and left) simplify the transfer of corners, lines, and alignments to floors, walls, and ceilings.

EASY ONE-BUTTON OPERATION

With one button, you can quickly and effortlessly activate all five points. The compact design is ideal for daily professional use.

AUTOMATIC SELF-LEVELING

The Lino P5-1 automatically levels itself up to ±4° tilt. If the tilt exceeds this limit, the laser points flash to alert the user.

360° ROTATION AND SMART MAGNETIC ADAPTERS

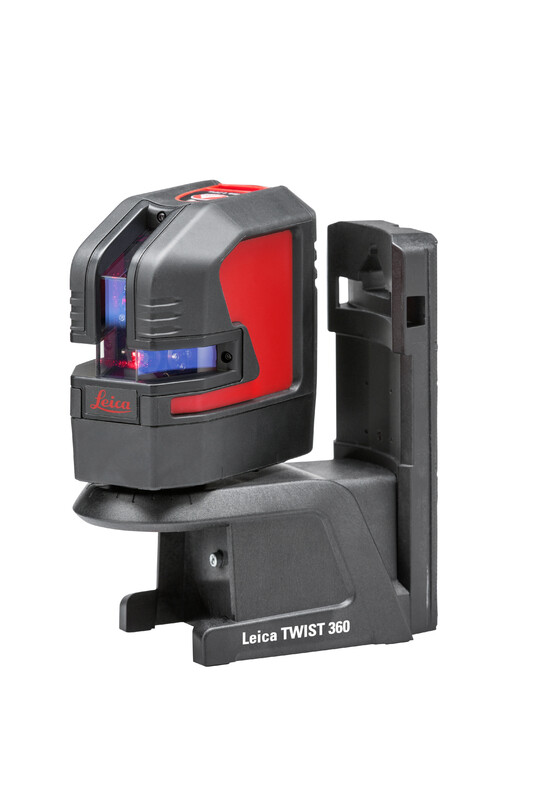

The included magnetic adapters allow the device to quickly attach to edges, pipes, rails, or profiles. The device can be rotated 360° around the vertical point, facilitating the definition of 90-degree angles.

TRIPLE POWER CONCEPT

The Triple Power system ensures uninterrupted operation. You can use AA alkaline batteries or mains power with the included charger. An optional rechargeable Li-Ion battery is available, enabling up to 100 hours of operation.

BUILT FOR TOUGH JOB SITES

IP54 protection ensures dust and splash resistance – the device withstands demanding conditions.

Features

• Laser points: 5 points: up, down, forward, right, left (90°/180°)
• Excellent visibility thanks to red laser diodes
• Leveling accuracy: ± 0.2 mm/m (± 1.0 mm @ 5 m / ± 2.0 mm @ 10 m)
• Point accuracy: ± 0.2 mm/m
• Self-leveling range: ± 4°
• Self-leveling time: < 3 s
• Out-of-level warning: Yes (laser flashes every 5 seconds)
• Pendulum lock: Yes
• Laser type: 635 ± 5 nm, Class 2 (IEC 60825-1)
• Operating time (alkaline batteries): 25 h (5 points), 37 h (2 points)
• Temperature range: -10…+50 °C
• Operating range up to 30 meters
• Thread for tripod mount: 1/4” (includes 5/8” adapter)
• Uninterrupted operation thanks to the Triple Power concept

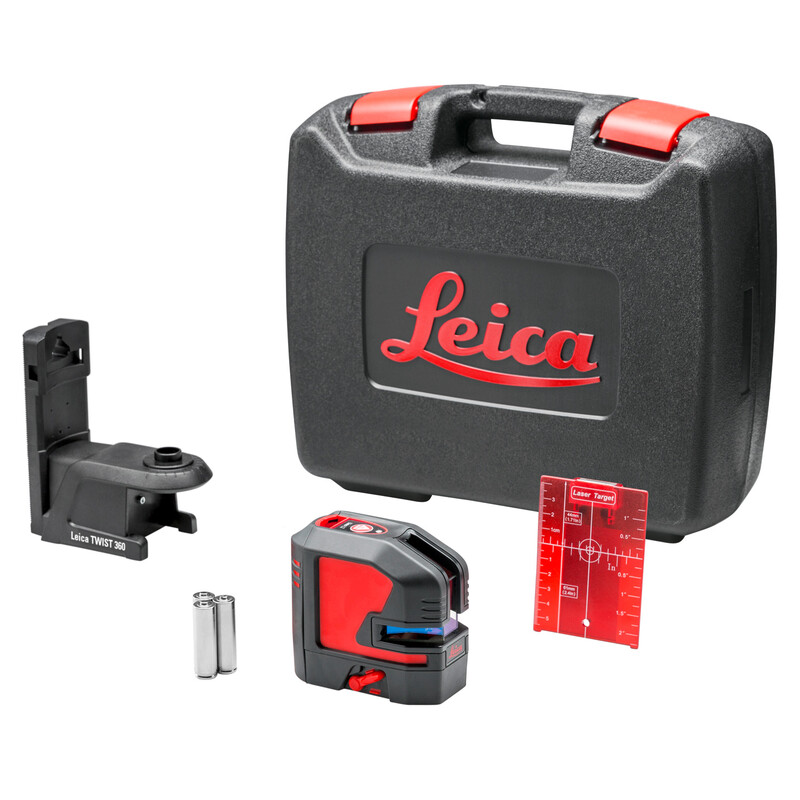

Package contents: Leica Lino P5-1 Point Laser, Battery compartment for alkaline batteries, 3 x AA alkaline batteries, TWIST 360 magnetic adapter, Target plate, Quick start guide, Calibration certificate (Blue), Transport case.

Optional accessories (sold separately): Lino Li-Ion battery pack 5200 mAh / 18.7 Wh, UAL 130 wall mount, TRI 70 tripod, TRI 100 tripod with tiltable head, CLR 290 measuring rod, GLB 10R Red laser safety glasses.

Extended warranty: Register your product within 8 weeks of purchase at www.disto.com/warranty and receive a 3-year warranty (2 years for Li-Ion batteries).

This product description is an automated translation of the original Finnish description.
