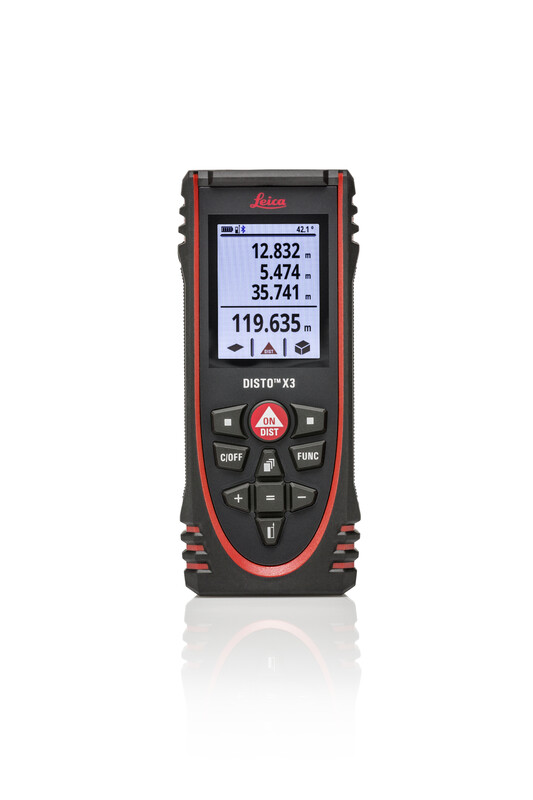

DISTANCE METER LEICA DISTO X3-1

The Leica DISTO X3 combines ultra-durable design with a 360° tilt sensor, enabling complex indoor measurements even under the most demanding conditions, up to 150 meters.

Ultra-durable and expandable

The Leica DISTO X3 is the perfect choice for demanding construction sites. It withstands drops of up to 2 meters and is protected against water jets and dust according to the IP65 standard. This rugged laser distance meter designed for indoor use can be easily converted into a Point-to-Point measurement solution using the DST 360 adapter, enabling measurement of the distance between two points from a single position.

Smart horizontal measurement and Leica Disto Plan app

The combination of tilt and distance data enables accurate horizontal measurements even around obstacles. Documentation and visualization of measurement data are simplified with the Disto Plan app. All measurement data can be easily transferred to smartphones and tablets via Bluetooth® Smart technology.

Smart Room and intelligent end cap

New DISTO technologies combined with the Smart Room function of the Disto Plan app enable rapid creation of scale-based floor plans on smartphones or tablets (in-app purchase). The built-in sensor automatically detects the position of the end cap, enabling accurate measurements from corners and edges.

Rotating display

Measurement results are easy to read from any angle thanks to the display’s automatic rotation.

Measurement distance

X-Range Power technology ensures fast and reliable measurements up to 150 meters in accordance with ISO 16331-1 standard.

Flexible data transfer

Measurement data can be sent directly to desired programs such as Word or Excel via computer, tablet, or smartphone. This reduces the need for manual entry and prevents errors.

Intuitive user interface

A clear menu structure makes operation easy and intuitive. The device includes built-in help that explains various functions.

Leica DISTO™ X3 – Technical specifications:

• Indoor use
• Measurement range: up to 150 m
• Accuracy: ± 1.0 mm
• Resolution: 0.1 mm
• Durability according to IP65 rating
• Automatically recognized 5 cm end cap
• Drop test: 2 m height
• Tilt sensor
• Graphical user interface for intuitive operation
• Bluetooth® technology for error-free data transfer
• Compatible with Disto Plan app (iOS, Android) and Disto Transfer software (Windows)
• Bluetooth® data transfer simulating keyboard input
• Developed in Switzerland and manufactured in Europe (ISO 9001-certified factory)
• Calibration certificate
• 3-year warranty

Delivery contents: Leica DISTO™ X3, Soft case, Lanyard, 2 x AA batteries, Calibration certificate (Silver), Quick start guide.

Optional accessories (sold separately): TRI 100 universal tripod, FTA 360 aiming adapter, DST 360 P2P adapter, DST 360 P2P adapter and TRI 120 tripod in a robust carrying case, GZM 26 target plate for long distances, GZM 3 target plate for modeling, Powerline charger including 4 AA batteries.

Extended warranty: Register your product within 8 weeks of purchase at www.disto.com/warranty to enjoy the 3-year warranty.
