DISTANCE METER LEICA DISTO X6-1 P2P PACKAGE
Product code
6711807
Leica DISTO X6 P2P package

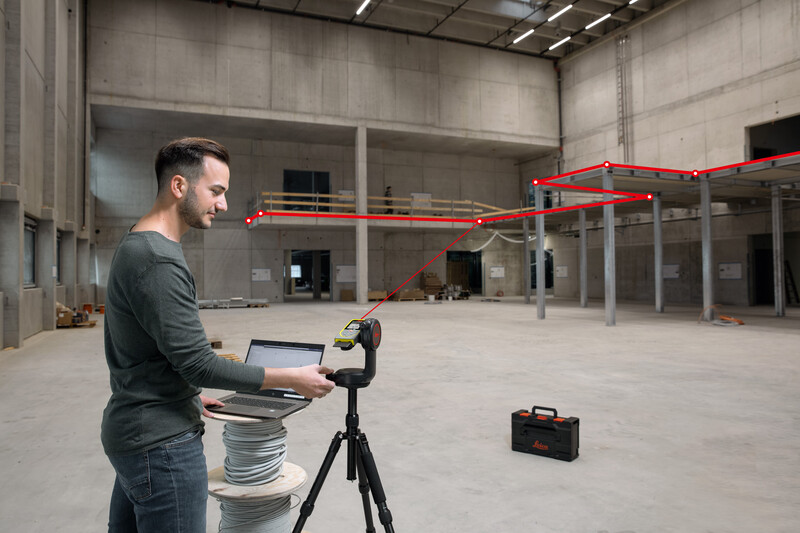

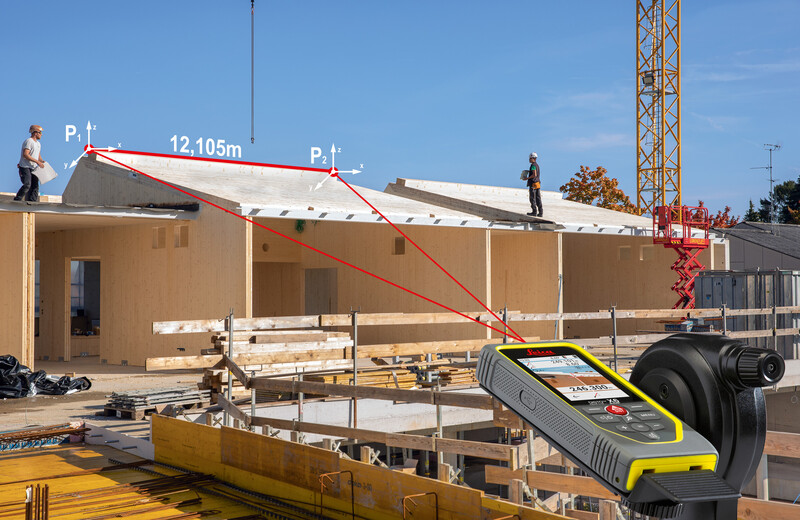

The combination of the Leica DISTO X6 and the Leica DST 360-X adapter enables the use of P2P technology, allowing measurements between any two points or complex areas from a safe location—even from hard-to-reach targets. Measurement results can then be downloaded as organized DXF files for further processing in any CAD software. Visualization of measurement results is possible directly on-site using the DISTO Plan app, enabling immediate detection of missing measurement points. This supports digitalization, accelerates workflows, saves money, and reduces errors.
Features:
• Suitable for indoor and outdoor use
• Measurement range up to 250 m
• Accuracy: ±1.0 mm
• Resolution: 0.1 mm
• Fast startup time

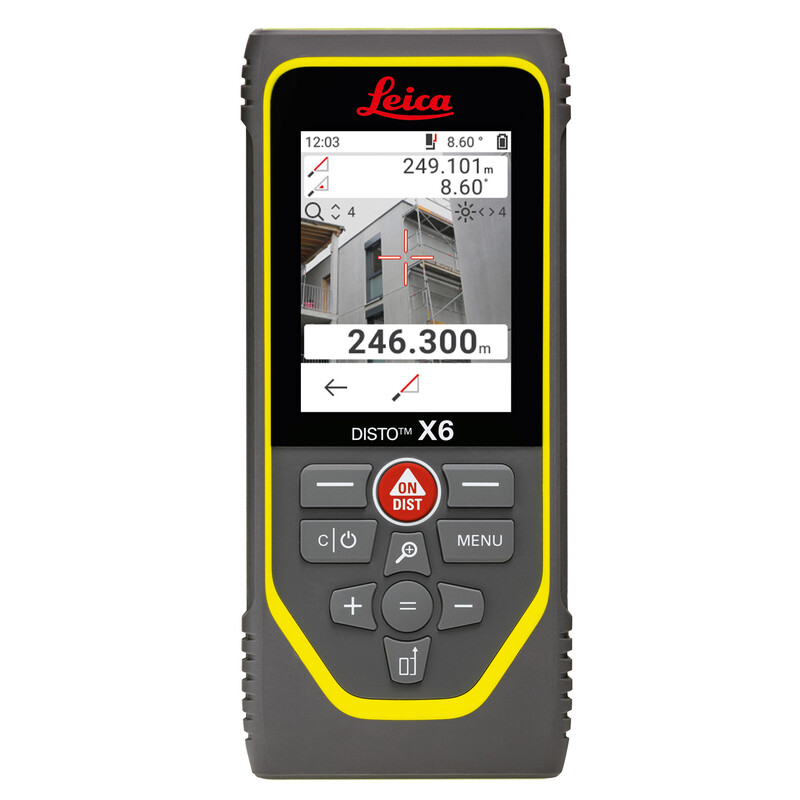

• Bright and clear 2.8” IPS touch display with scratch-resistant lens
• DISTO measurement button on the side for intuitive operation
• IP65 protection rating and drop-tested from 2 meters
• Start measurement via gesture control
• Memory for up to 300 reports
• Rechargeable Li-Ion battery
• USB-C charging and data transfer
• Bluetooth® keyboard emulation for data transfer
• Bluetooth® 5.0 technology for flawless data transmission
• Compatible with DISTO Plan app (iOS and Android) and DISTO transfer software (Windows)
• Compatible with DST 360-X adapter for P2P measurements

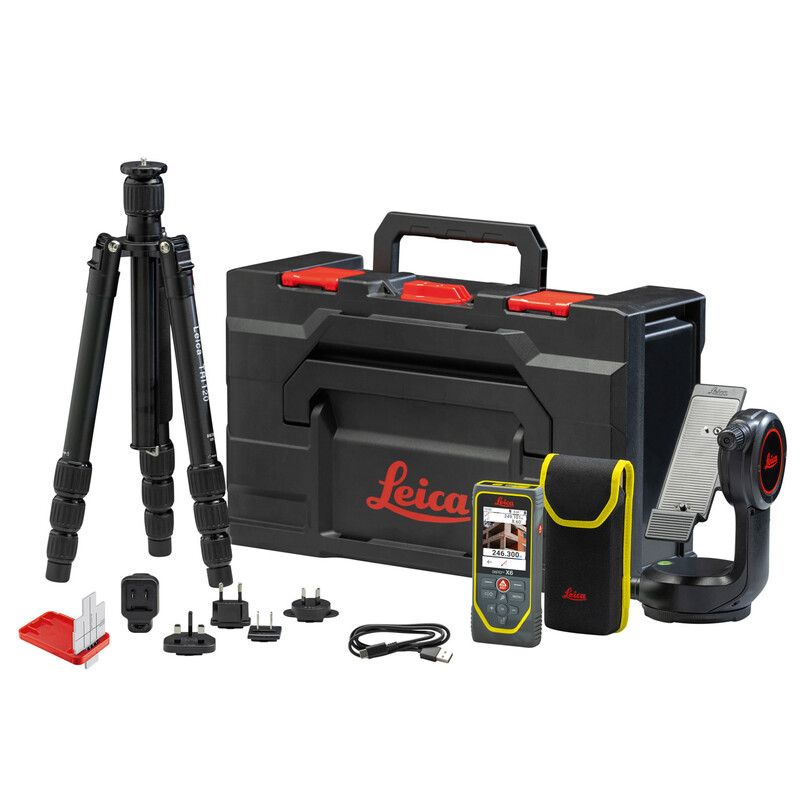

Package contents: Leica DISTO X6 laser distance meter, wrist strap, soft case, charger (includes four different plugs) and USB cable, Leica DST 360-X adapter, Leica TRI 120 tripod, Leica GZM 3 target plate, metaBOX storage box, safety instructions, calibration certificate (Silver), quick start guide (QR code to online manual), 3-year warranty certificate
Additional accessories (sold separately): DST 360-X adapter, USB charger + USB-C cable, adapter plate for metaBOX systems, mounting plate for metaBOX, USB-C protective plug set (5 pieces) for DISTO X6, TRI 120 universal tripod, GZM 26 target plate for long distances, GZM 30 installation target plate 274 x 197 mm, TPD 100 alignment rod set
Extended warranty: Register your product within 8 weeks of purchase at www.disto.com/warranty to receive a 3-year warranty (2 years for Li-Ion batteries). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Laser distance meter (EC004933)
Laser classClass 2
Wavelength635 nm
Laser beam colorRed
Measuring range0.05 - 250 m
Measuring range according to ISO 16331-1yes
Accuracy of measurement+/- 1.0 mm
Accuracy of measurement according to ISO 16331-1yes
Bluetoothyes
Degree of protection (IP)IP65
With stand holderyes
Inclination sensoryes
Product codes
SAPDLB197
STK6711807
PLC6711807
GTIN/EAN7640180531272
Manufacturer part number950878
Vendor material number950878
Basic information
Package measurements (L x W x H)495 x 295 x 160 mm
Package volume23.364 l
Package weight6 kg
Base uniteach
Package units1
Package contents–
UNSPSC41111917
BrandLEICA GEOSYSTEMS
VendorINFRADEX OY
