MEASURING INSTRUMENT ACC LEICA REMOTE COMBO+
Product code
6436225

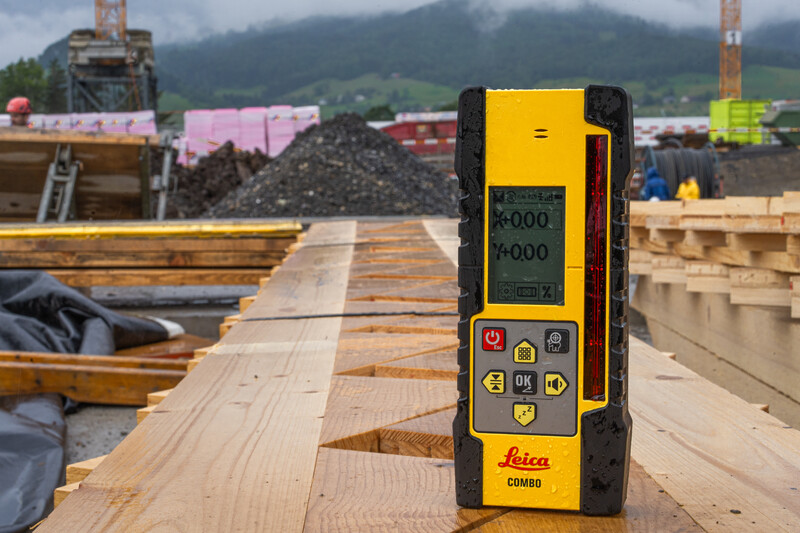

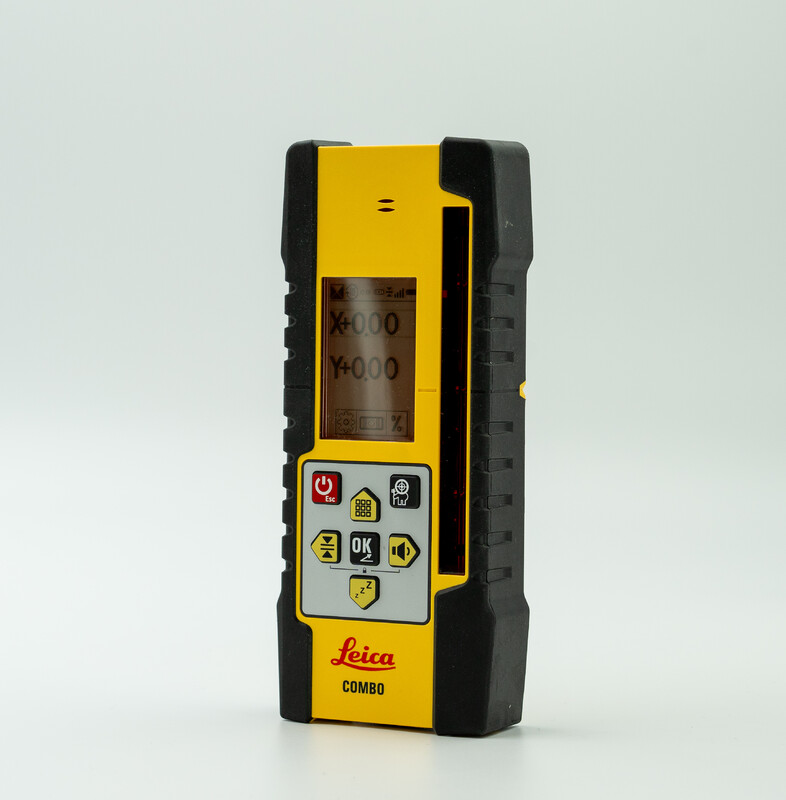

Leica Combo+ Remote/Receiver – Receiver and remote in one
Leica Combo+ is an intelligent combined device that functions as both a laser receiver and a remote control for Leica Rugby CLH and CLAx series construction lasers. It offers industry-leading features including a digital display, slope catch function, remote control up to 600 m range, and a fast-chargeable battery.
Combo+ provides full control over the job site laser system—enabling input and locking of slope angles, adjustment of laser head speed, management of audio signals, and precise digital readings. The device is robustly protected for demanding job site conditions according to IP67 standards.
Features:
• Two-in-one device: laser receiver and remote control in one unit
• Remote control: up to 600 m range (width)
• Operating range as receiver: up to 1350 m (diameter)
• Display: backlit LCD on front and rear
• Digital reading: accurately displays height difference in millimeters
• Detection window: 120 mm
• Detection zones: selectable from 0.5 mm to 5 mm
• Audio levels: 4 settings (including mute)
• Calibration and setting control: directly from the receiver
• Fast-chargeable battery (Li-Ion): up to 50 hours operation, 1 hour charge = 8 hours operation
• USB-C charging and power bank compatible
Durable construction:
• Protection rating: IP67 – fully dustproof and waterproof
• Operating temperature: –20...+50 °C
• Dimensions: 205 × 86 × 32 mm
• Weight: 0.4 kg with battery
• Protection: MIL-STD-810G compliant
Also enables software-level control for Leica Rugby CLx250, 550, and 700 lasers.
Compatibility: Leica Rugby CLAx series (e.g., CLAx250, 550, 700) and Leica Rugby CLH series
Product code: 986299 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Accessories/spare parts for measuring tools (EC003009)
Type of accessory/spare partRemote control
Accessoryyes
Spare partno
Product codes
SAPDLA934
STK6436225
PLC6436225
GTIN/EAN7640180533269
Manufacturer part number986299
Vendor material number986299
Basic information
Package measurements (L x W x H)230 x 130 x 40 mm
Package volume1.196 l
Package weight0.71 kg
Base uniteach
Package units1
Package contents–
UNSPSC41111917
BrandLEICA GEOSYSTEMS
VendorINFRADEX OY
