PIPE LASER LEICA PIPER 200G PACKAGE W/ REMOTE

Product code
6436249

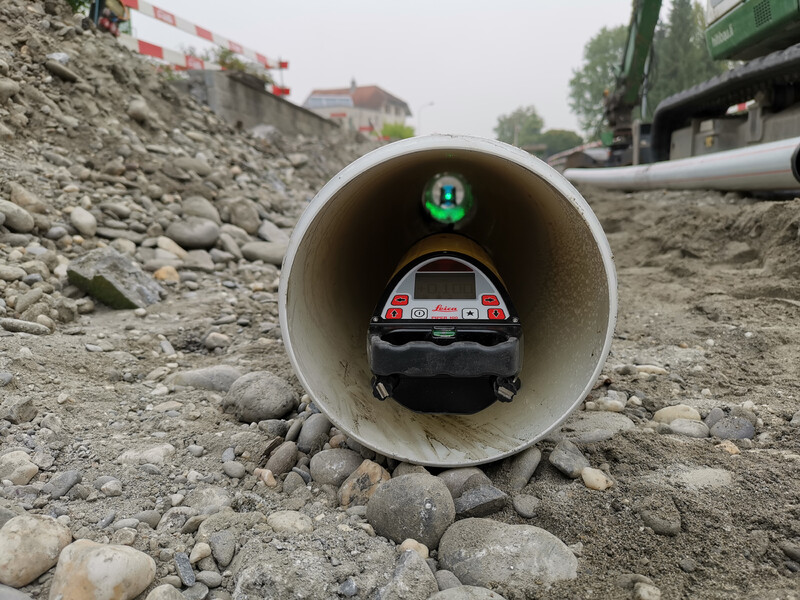

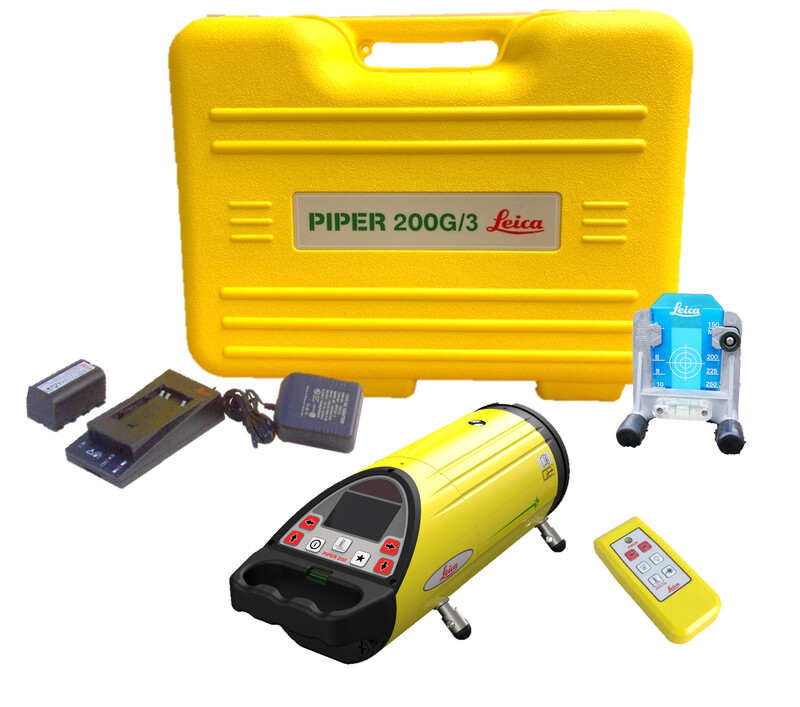

Leica Piper 200G green beam pipe laser package The professional's choice for precise alignment – automatic targeting and premium performance The Leica Piper 200G is a compact and extremely robust pipe laser designed specifically for pipe and sewer construction. It is one of the smallest pipe lasers on the market and is capable of operating inside pipes with a diameter of up to 100 mm. A standout feature of this model is its green laser beam, which is up to four times more visible than a traditional red beam. This makes the Piper 200G an excellent choice for bright working conditions and long-distance operations where visibility is critical. The device features the Alignmaster™ function, which automatically targets the laser and significantly speeds up daily tasks. The self-leveling system ensures precise slope control, and slope adjustment is achieved seamlessly without manual tilting. The durable die-cast aluminum housing and IPX8 water resistance rating guarantee reliable operation even under the most demanding conditions. The long-lasting Li-Ion battery ensures the laser remains operational throughout the entire workday. The included remote control facilitates setting adjustments even from outside the pipe. This package includes everything you need: a rechargeable Li-Ion battery, charger, remote control, targeting plate, support legs, and a transport case. The device is designed to withstand harsh job site conditions, and its IPX8-rated construction ensures water and dust resistance. Features: - Compact size – fits into pipes up to 100 mm (4") in diameter - Housing height of only 100 mm, length under 260 mm - Designed for direct placement inside pipes - Durable housing made of die-cast aluminum - Bright green laser beam, up to 4x more visible than red - Laser diode: 520 nm (green), power 4.8 mW - Slope range: –10 % ... +25 % - Automatic single-axis slope leveling - Self-leveling range: –15 % ... +30 % - Accuracy: ±1.5 mm / 30 m User-friendly: - Alignmaster™ function – automatic targeting - Wireless remote control – range up to 150 m ahead - Clear LCD display – easy readability - Battery life: up to 40 hours on a single charge Package contents: - Leica Piper 200 pipe laser - GEB221 Li-Ion battery - GKL211 charger - Infrared remote control - Targeting plate (300 mm) - 4 x support legs (150 mm) - User manual - Hard transport case Suitability: - Installation of sewer and stormwater pipes - Utility and earthwork alignment tasks - Pipe line construction requiring precise slope - Confined and damp working environments 5-year manufacturer's warranty. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Laser leveling device (EC000641)
Laser classClass 3R
Wavelength520 nm
Laser beam colorGreen
Levelling accuracyOther
Measured value memoryno
Interfaceyes
With remote controlyes
With stand holderyes
Rotating signalling lineno
Battery typeLithium-ion
Housing colourOther
Degree of protection (IP)Other
Width268 mm
Height103 mm
Length110 mm

Product codes

SAPDNF298
STK6436249
PLC6436249
GTIN/EAN7640180530800
Manufacturer part number6016958
Vendor material number6016958

Basic information

Package measurements (L x W x H)645 x 355 x 510 mm
Package volume116.777 l
Package weight8.903 kg
Base uniteach
Package units1
Package contents
UNSPSC41111917
BrandLEICA GEOSYSTEMS
VendorINFRADEX OY
