MAIN AMPLIFIER DSP15-5G MAIN AMPLIFIER

Programmable DVB-T/T2 channel filter-amplifier

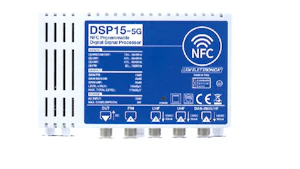

Programmable, compact amplifier for channel-specific filtering or channel switching of DVB-T/T2 signals. The device features a built-in 5G SAW-LTE filter to prevent mobile frequencies from entering the amplifier and distribution network.
Thanks to its output level, the DSP15-5G is ideally suited for small and medium-sized antenna networks, such as single-family homes, twin houses, and small to medium-sized apartment buildings.
No separate programming devices are required, as the DSP15-5G can be programmed via a smartphone using the LEM NFC app.

Features:

• 4 inputs and 1 output
• Programming/configuration via LEM NFC app (Android/iOS)
• 5G SAW filters against LTE interference
• Real-time, automatic gain adjustment in each filter
• 32 high-selectivity digital filters
• DC remote power supply via coaxial cable (MATV OUT)
• Zamak housing ensures high RF emission tightness
• Internal 230 VAC power supply

Technical specifications:

• Inputs: 4 (1 x ULA/BI, 1 x VHFIII/DAB, 2 x UHF LTE700)
• Input frequency ranges (MHz): ULA/BI: 88-108, BIII: 170-230, DAB: 170-240, UHF: 470-694
• Outputs: 1 (1 x MATV)
• LTE protection: LTE700
• Programmable channel filters: 32
• Number of channel packages per filter: 1…2
• Input power levels from antennas by region (dBµV): ULA/BI: 35-90, BIII/DAB: 45-100, UHF: 45-90
• BIII/DAB/UHF input amplifier (dB): 0 / +16 (ON/OFF)
• BIII/DAB - UHF input AVS range (dB): 40
• Digital filter selectivity (dB): 35@1MHz
• FM amplification (dB): -10/+15
• UHF amplification (dB): 50
• Output level range (dBµV): 85 - 105
• Maximum output level (dBµV): 115 (IM3 DIN 45004B -60dBc)
• Reflection attenuation input/output (dB): > 10
• DC voltage supply for preamplifier: 12VDC 50 mA
• Operating voltage and power consumption: 230 VAC 8W
• Operating temperature range: -15 ... +40
• Dimensions (mm): 135 x 91 x 45

This product description is an automated translation of the original Finnish description.
