LED-LIGHT RAIL LED-DUO20LUX 28W 4000K AL VA

Product code
4129673

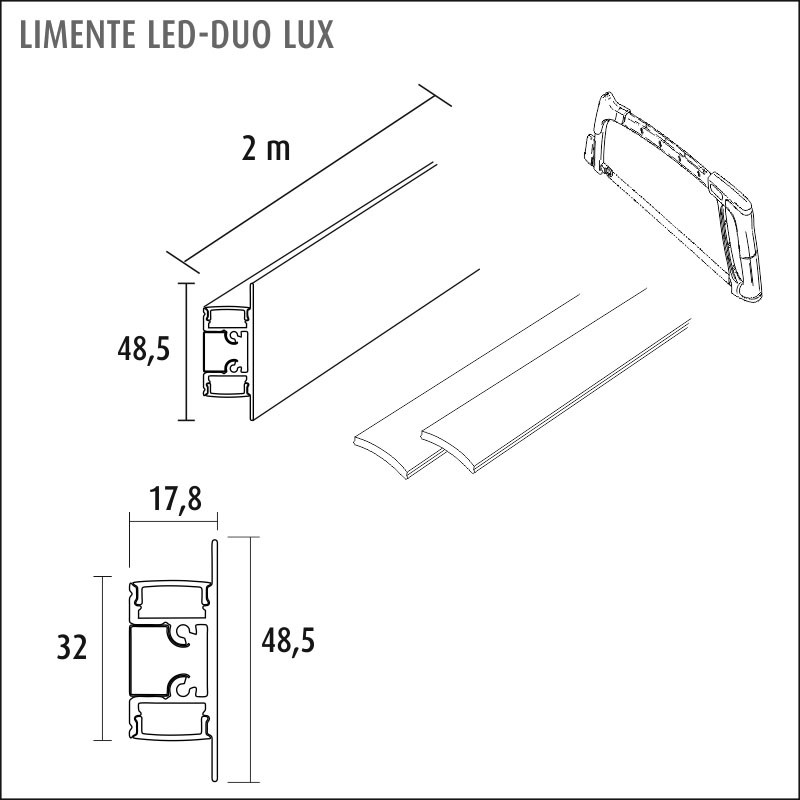

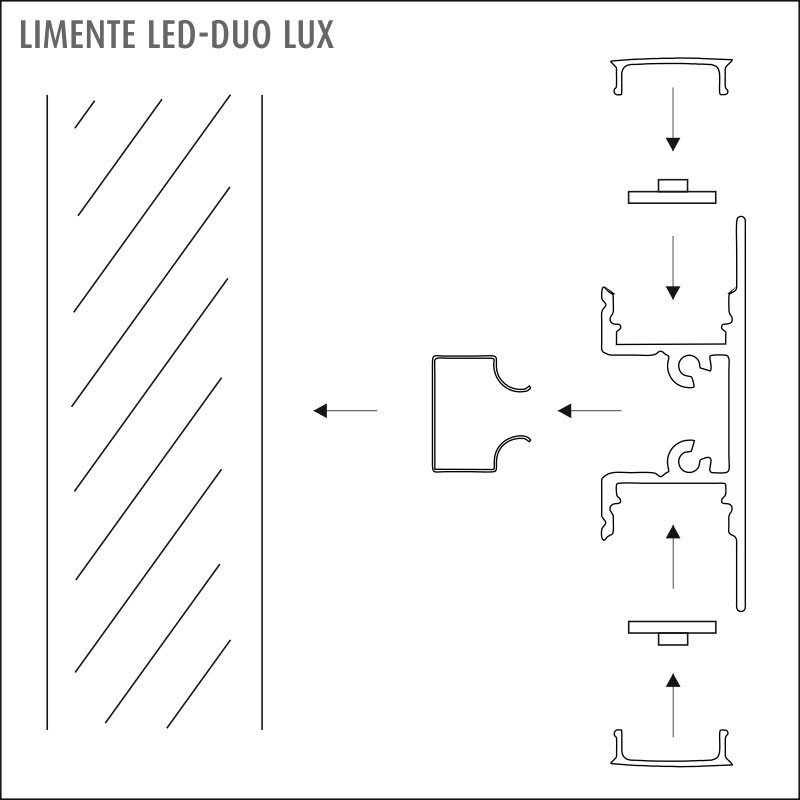

LIMENTE LED-DUO 20 LUX, white, 2m, 24V, 4000K, wall-mounted light emitting in two directions LED-DUO is a wall-mounted profile light emitting upwards and downwards, suitable for both home and public spaces. Available standard in 2m and 4m lengths, in white and black, with color temperatures of 3000K and 4000K. Dimming LIMENTE LED-DUO LUX is dimmable with the LIMENTE SMART 500 series 24V dimmer (no. 640540) and can be controlled by wireless wall switches no. 640541, 640542, and 640544. The dimmer is installed between the power supply and the lights. Note that you must select a 24V dimmer. LIMENTE LED-DUO LUX must be used with a compatible, separately ordered 24V power supply. Installation The light profile is cut to the desired length and mounted using the included brackets. The light strip is pressed into the profile using double-sided tape, and finally the power cable is connected to the light strip and the power supply. All electrical connections are made simply with quick-connect terminals. The LED strip has power connections at both ends and can be cut every 3.3 cm to the desired length. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip

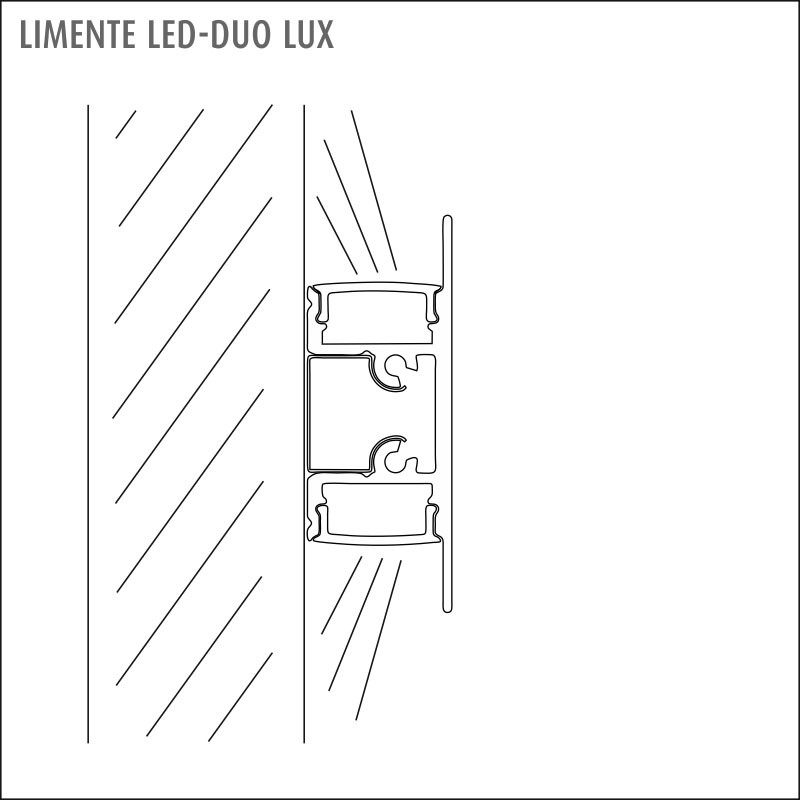

Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter180
Number of nodes per foot60
Lamp power per meter14 W
Lamp power per foot5 W

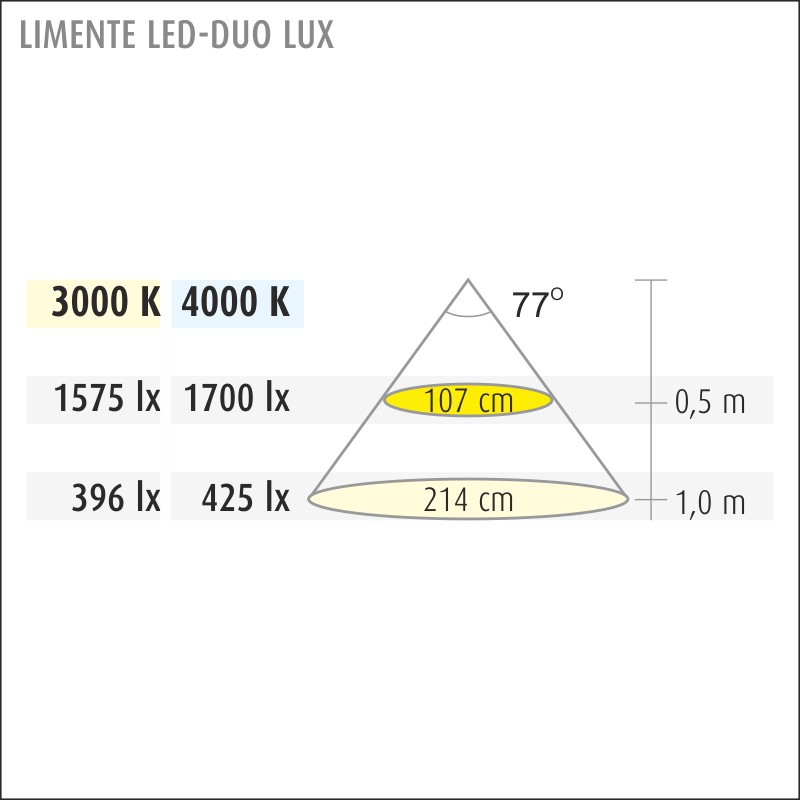

Luminous flux per meter1700 lm
Voltage typeDC
Lamp voltage24-24 V
Beam angle117 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno
Exchangeable control gearno
Energy efficiency class of the light source according to EU regulation 2019/2015E

Product codes

SAPCZG331
STK4129673
PLC4129673
GTIN/EAN6438400001022
Manufacturer part number68942
Vendor material number68942

Basic information

Package measurements (L x W x H)2050 x 70 x 70 mm
Package volume10.045 l
Package weight1.81 kg
Base uniteach
Package units1
Package contents
UNSPSC39111544
BrandLIMENTE
VendorLIMENTE OY AB

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)23.53
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameOy Limente Ab
Postal addressHermannin Rantatie 2B, B9, 00580 Helsinki, Finland
