LED-LIGHT RAIL LED-INSER20LUX 28W 4000K AL

Product code
4129669

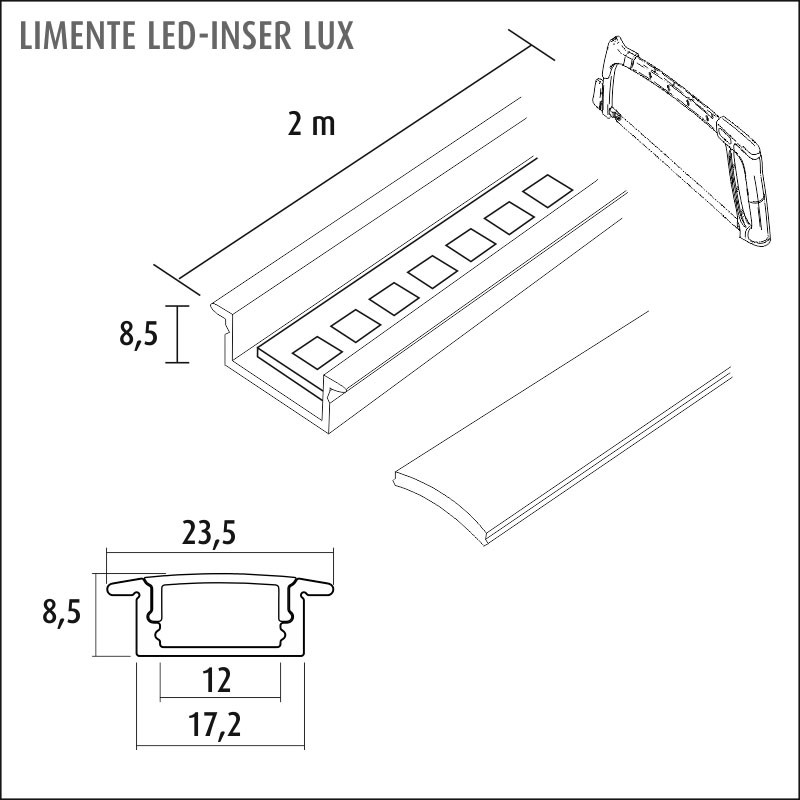

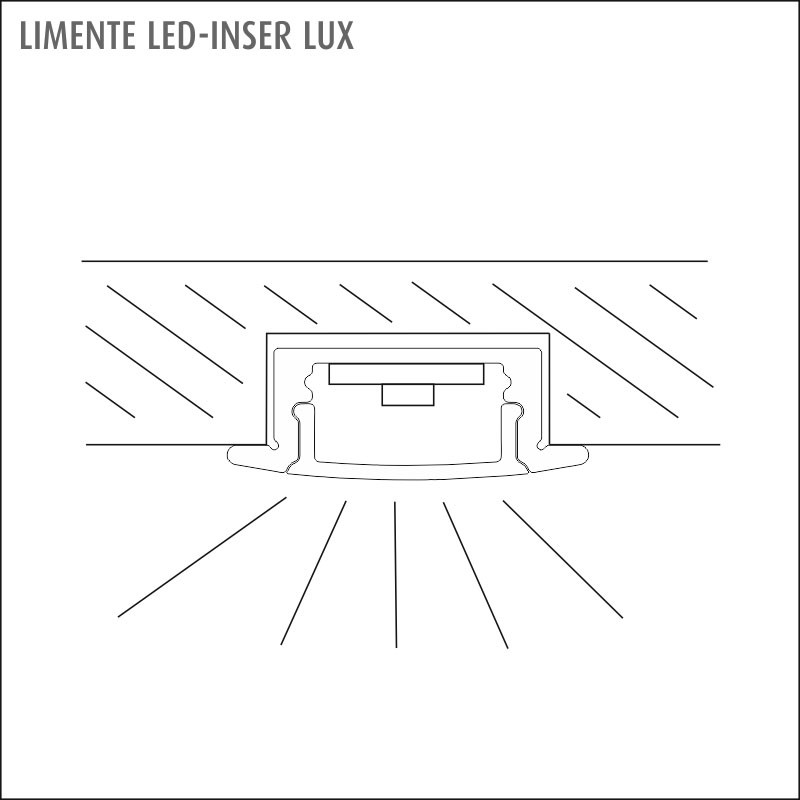

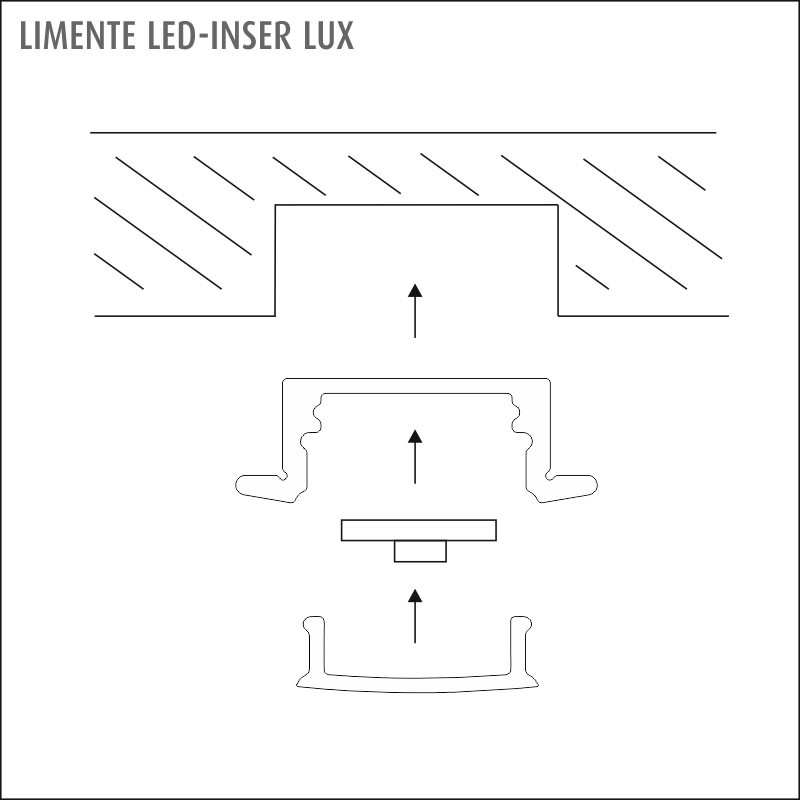

LIMENTE LED-INSER 20 LUX, 2m, 24V, 4000K Invisible recessed LED profile from the Lux series Designed for recessed installation in fixtures, this adjustable work and ambient light fixture Installation Cut the light profile to the desired length and press it into the pre-cut groove. Press the light strip into the profile using double-sided tape, then connect the power cable to the light strip and the power supply. All electrical connections are made simply using quick-connect terminals. The power cable at both ends of the light fixture enables the LED-INSER to be used as two separate lights. Dimming LIMENTE LED-INSER LUX is dimmable with the LIMENTE SMART 500 series 24 V dimmer (no. 640540) and can be controlled by wireless wall switches no. 640541, 640542, and 640544. The dimmer is installed between the power supply and the light fixtures. Note that you must select a 24 V dimmer. LIMENTE LED-INSER LUX must be used with a compatible, separately ordered 24 V power supply. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodBuilt-in
Lamp typeLED not exchangeable
Number of nodes per meter180
Number of nodes per foot60
Lamp power per meter14 W
Lamp power per foot5 W
Luminous flux per meter1700 lm
Voltage typeDC
Lamp voltage24-24 V

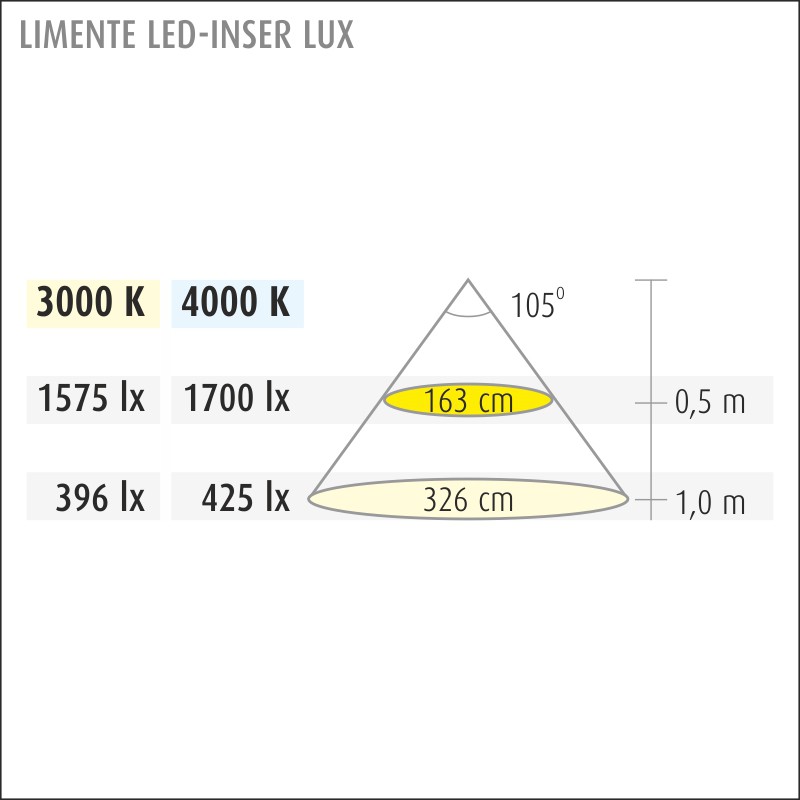

Beam angle117 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno
Exchangeable control gearno
Energy efficiency class of the light source according to EU regulation 2019/2015E

Product codes

SAPCZG327
STK4129669
PLC4129669
GTIN/EAN6438400000988
Manufacturer part number68932
Vendor material number68932

Basic information

Package measurements (L x W x H)2050 x 35 x 35 mm
Package volume2.511 l
Package weight0.785 kg
Base uniteach
Package units1
Package contents
UNSPSC39111544
BrandLIMENTE
VendorLIMENTE OY AB

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)10.205
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameOy Limente Ab
Postal addressHermannin Rantatie 2B, B9, 00580 Helsinki, Finland
