LED-LIGHT RAIL LED-INSER40LUX 57W 4000K AL
Product code
4129670
LIMENTE LED-INSER 40 LUX, 4m, 24V, 4000K

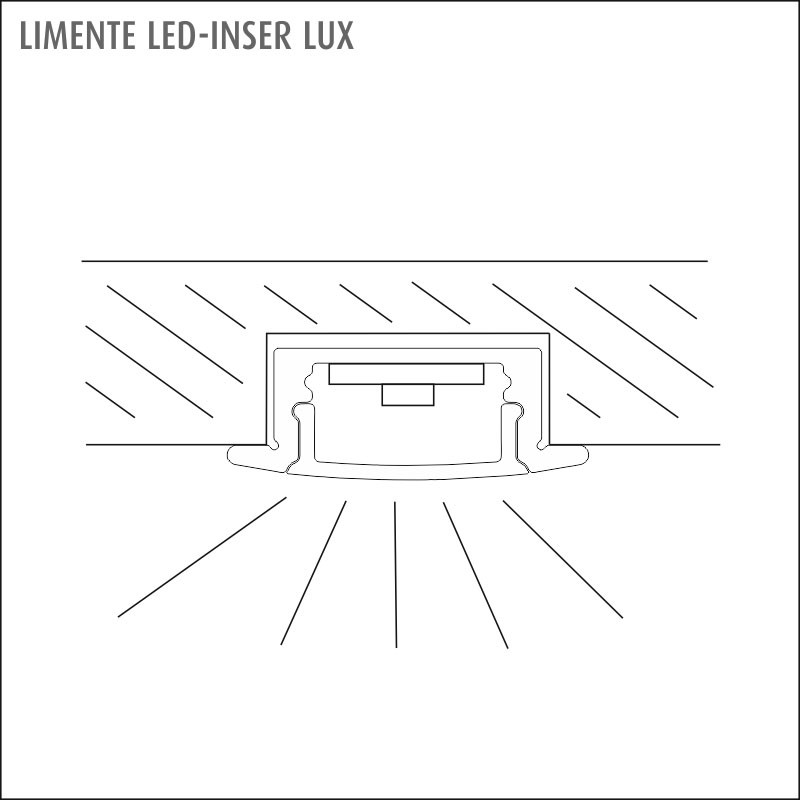

Invisible recessed LED profile from the Lux series
Designed for recessed installation in fixtures, this adjustable work and ambient light fixture

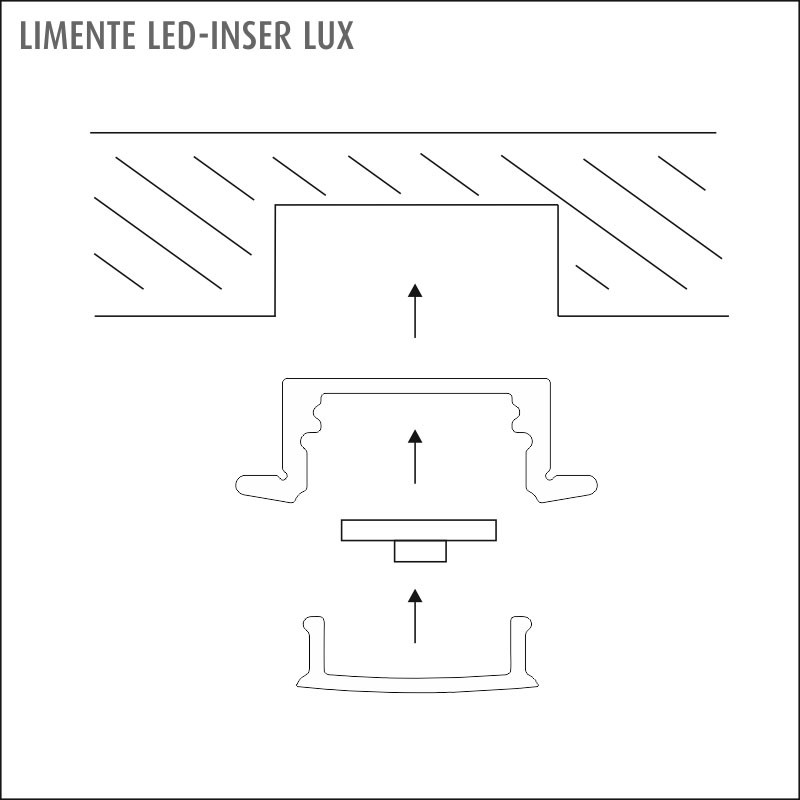

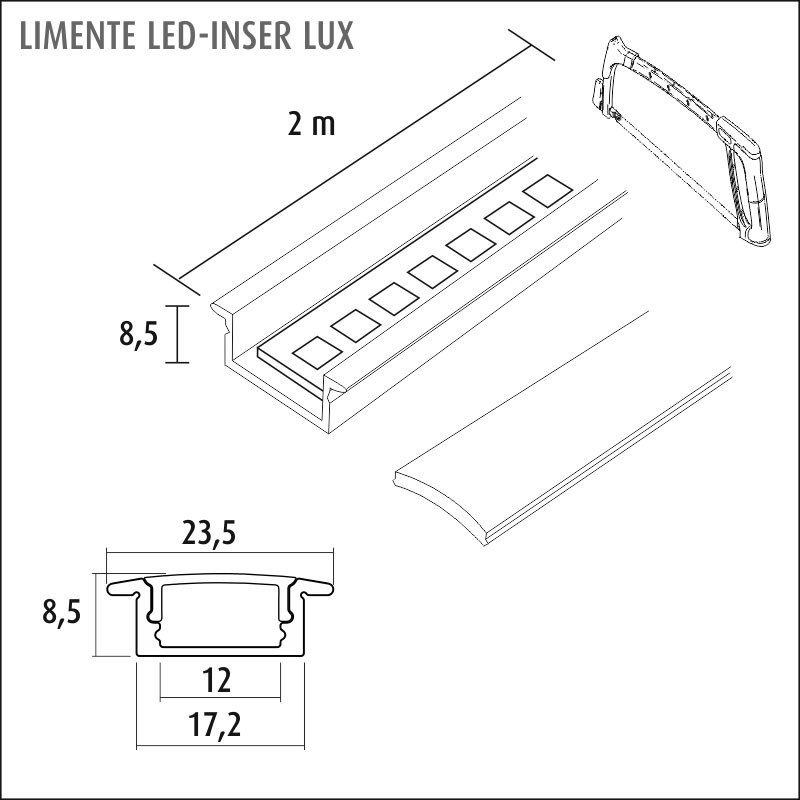

Installation: Cut the light profile to the desired length and press it into the pre-cut groove. Press the light strip into the profile using double-sided tape, then press the power cable onto the light strip and connect it to the power supply. All electrical connections are made simply using quick-connect terminals. The power cable at both ends of the light fixture enables the LED-INSER to be used as two separate lights.
Dimming: LIMENTE LED-INSER LUX is dimmable with the LIMENTE SMART 500 series 24V dimmer (no. 640540) and can be controlled by wireless wall switches no. 640541, 640542, and 640544. The dimmer must be installed between the power supply and the light fixtures. Note that you must select a 24V dimmer.
LIMENTE LED-INSER LUX must be used with a compatible, separately ordered 24V power supply. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodBuilt-in
Lamp typeLED not exchangeable
Number of nodes per meter180
Number of nodes per foot60
Lamp power per meter14 W
Lamp power per foot5 W
Luminous flux per meter1700 lm
Voltage typeDC
Lamp voltage24-24 V

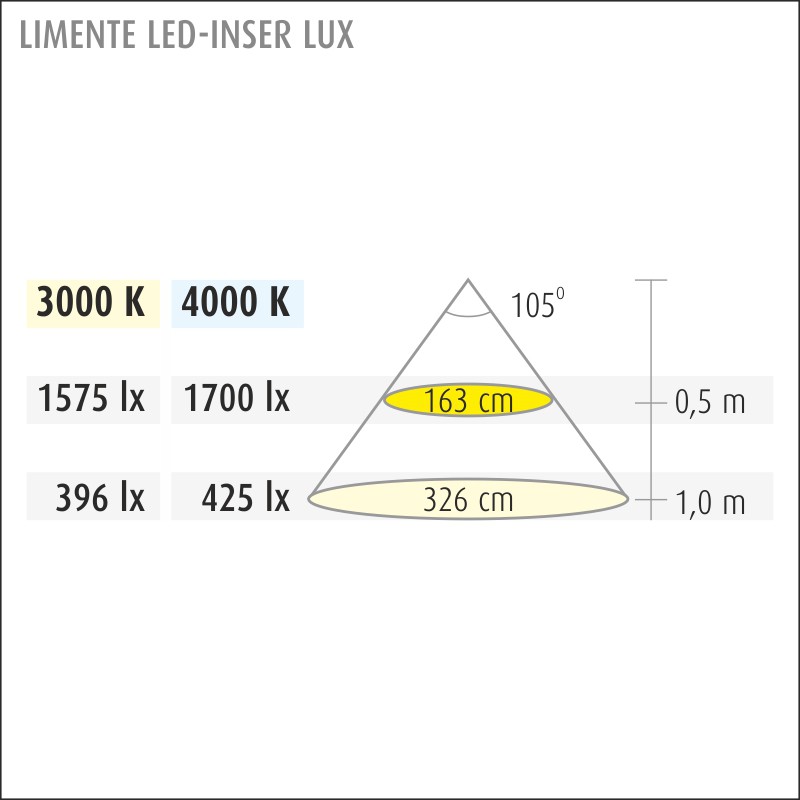

Beam angle117 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno
Exchangeable control gearno
Energy efficiency class of the light source according to EU regulation 2019/2015E
Product codes
SAPCZG328
STK4129670
PLC4129670
GTIN/EAN6438400000995
Manufacturer part number68933
Vendor material number68933
Basic information
Package measurements (L x W x H)2050 x 35 x 70 mm
Package volume5.022 l
Package weight1.45 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandLIMENTE
VendorLIMENTE OY AB
Documents (6)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)18.85
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameOy Limente Ab
Websitehttps://www.limente.fi
Postal addressHermannin Rantatie 2B, B9, 00580 Helsinki, Finland
