LED-LIGHT RAIL LED-LILO20-8 20W 4000K AL

Product code
4129728

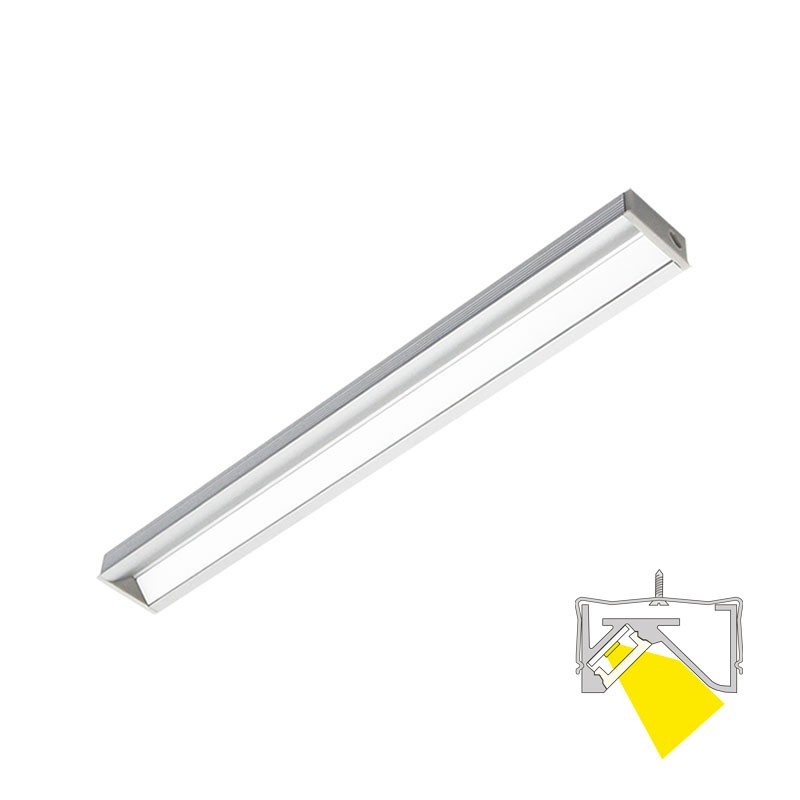

Versatile, light-directing, cuttable lighting profile. LED-LILO is surface-mounted. The profile is very compact and, unlike other LIMENTE profiles, it uses an 8 mm LED strip. LED-LILO is available in two cuttable standard lengths of 2 m and 4 m (2+2 m) and in two color temperatures (3000K and 4000K). The light provides a stylish continuous glow without visible joints; the unified profile delivers even, stylish illumination across the entire area indirectly through another surface. The delivery includes the aluminum profile with mounting brackets and the light strip. The aluminum profile is always 2 m in length and is cuttable. The LED-LILO profile is cut to the desired length and secured using the included mounting brackets. The light strip is cuttable in 5 cm increments. Both ends of the strip have power supply cables, allowing LED-LILO to be used as a full-length unit or as two separate lights. A compatible 24V power supply must be used with LIMENTE LED-LILO. Dimmable with LIMENTE SMART series products. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter140
Number of nodes per foot46.5
Lamp power per meter10 W
Lamp power per foot3.33 W
Luminous flux per meter1300 lm
Voltage typeDC
Lamp voltage24-24 V
Beam angle117 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno
Exchangeable control gearno
Energy efficiency class of the light source according to EU regulation 2019/2015E

Product codes

SAPCZG365
STK4129728
PLC4129728
GTIN/EAN6438400002005
Manufacturer part number682356
Vendor material number682356

Basic information

Package measurements (L x W x H)2050 x 35 x 35 mm
Package volume2.511 l
Package weight0.608 kg
Base uniteach
Package units1
Package contents
UNSPSC39111544
BrandLIMENTE
VendorLIMENTE OY AB

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)7.904
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameOy Limente Ab
Postal addressHermannin Rantatie 2B, B9, 00580 Helsinki, Finland
