LED-LIGHT RAIL LED-LINEA20LUX 28W 4000K AL
Product code
4129615
LIMENTE LED-LINE 20 LUX, 2m, 24V, 4000K

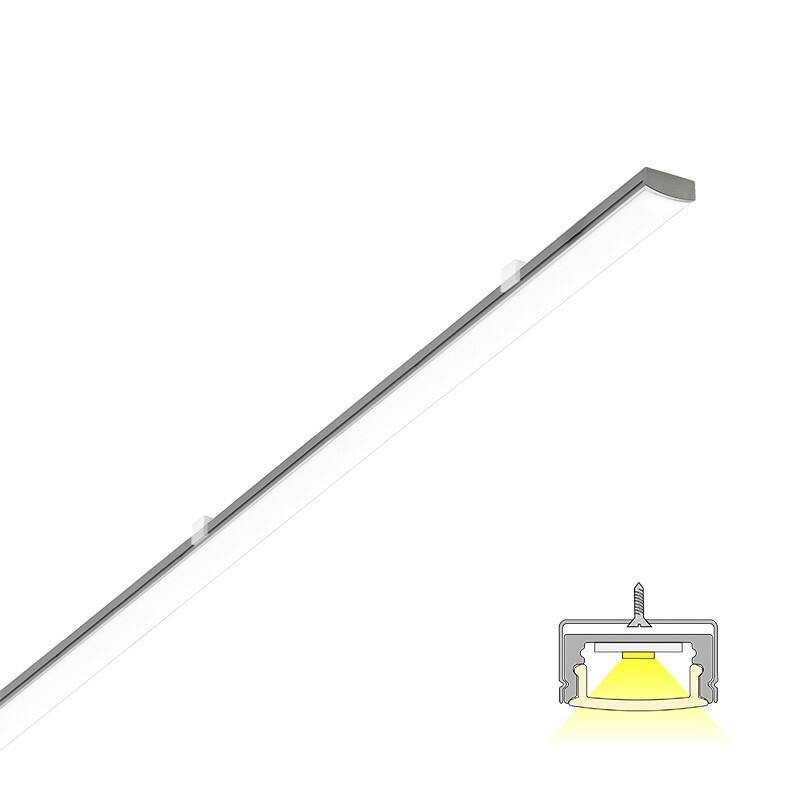

Lighting profile with uniform light

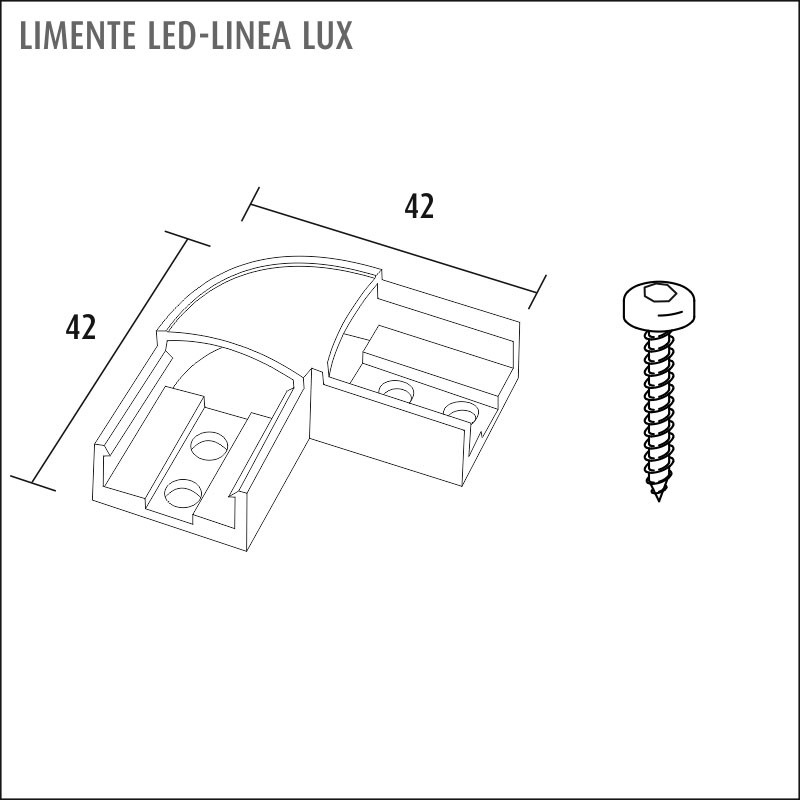

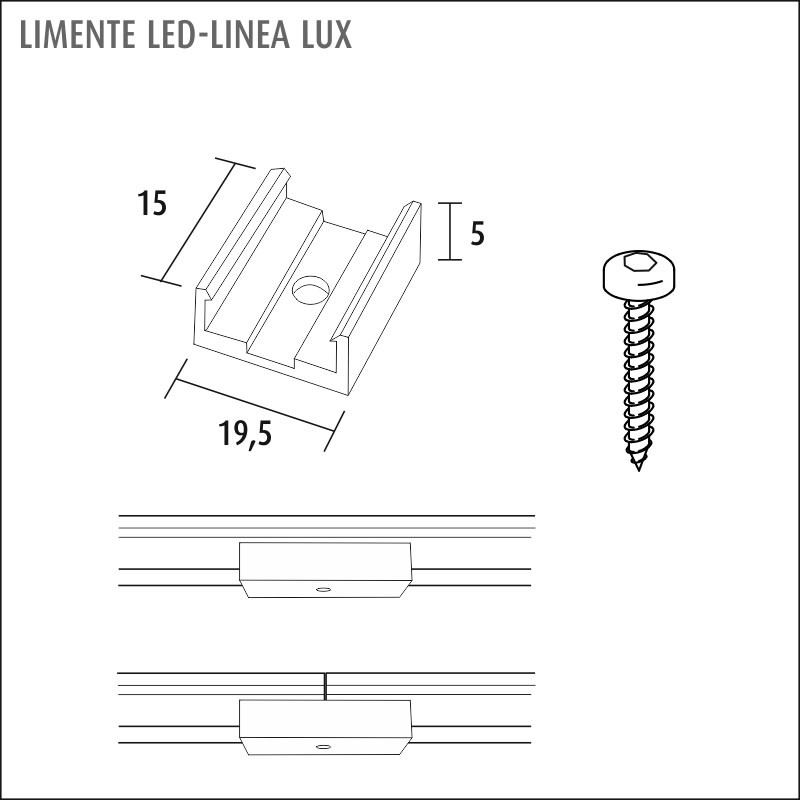

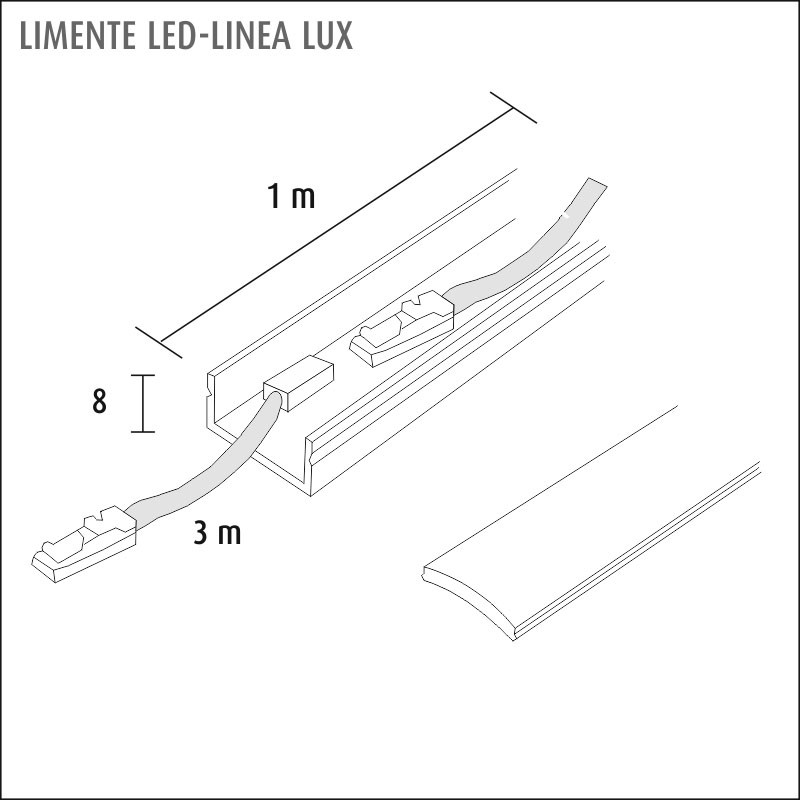

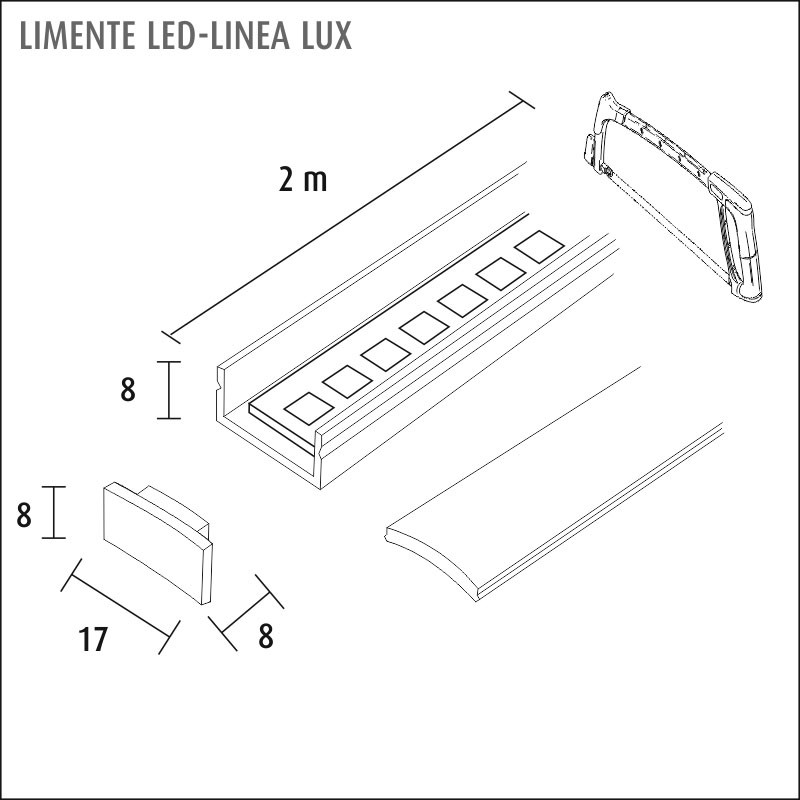

A versatile, cuttable task and ambient light suitable not only for kitchen work lighting but also as indirect lighting behind mirrors, in skirting boards, ceilings, etc. The light provides a stylish continuous glow without visible joints. The LED-Linea LUX includes a 2-meter light rail with accessories (corner, end cap, extension, mount), LED strip, and power supply profile. The LED strip is attached to the inside of the LED-Linea profile using double-sided tape. The power supply wires at both ends of the strip allow the strip to be cut and both LED segments to be used separately. The LED strip can be cut every 3.3 cm to the desired length.
Dimming
LIMENTE LED-LINEA LUX is dimmable with the LIMENTE SMART 500 series 24V dimmer (no. 640540) and can be controlled by wireless wall switches no. 640541, 640542, and 640544. The dimmer is installed between the power source and the lights. Note that you must select a 24V dimmer. LIMENTE LED-LINEA LUX requires a compatible, separately ordered 24V power supply. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter180
Number of nodes per foot60
Lamp power per meter14 W
Lamp power per foot5 W
Luminous flux per meter1700 lm
Voltage typeDC
Lamp voltage24-24 V

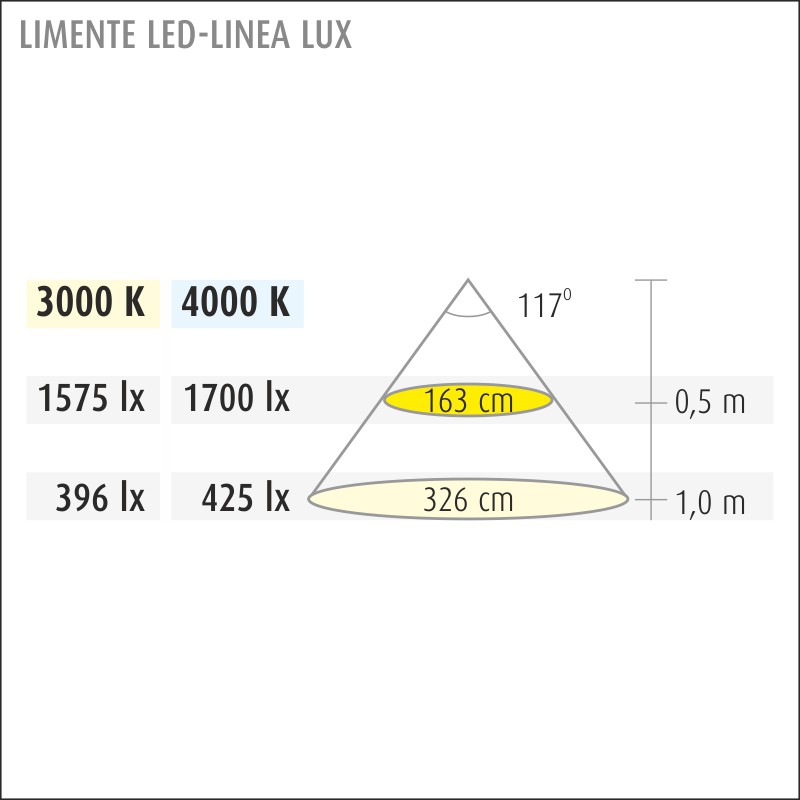

Beam angle117 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno
Exchangeable control gearno
Energy efficiency class of the light source according to EU regulation 2019/2015E
Product codes
SAPCZG303
STK4129615
PLC4129615
GTIN/EAN6438400000155
Manufacturer part number682318
Vendor material number682318
Basic information
Package measurements (L x W x H)2060 x 35 x 35 mm
Package volume2.524 l
Package weight0.921 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandLIMENTE
VendorLIMENTE OY AB
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)11.973
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameOy Limente Ab
Websitehttps://www.limente.fi
Postal addressHermannin Rantatie 2B, B9, 00580 Helsinki, Finland
