LED-LIGHT RAIL LED-UP20 CCT 29W 2700-6000K BL
Product code
4129739

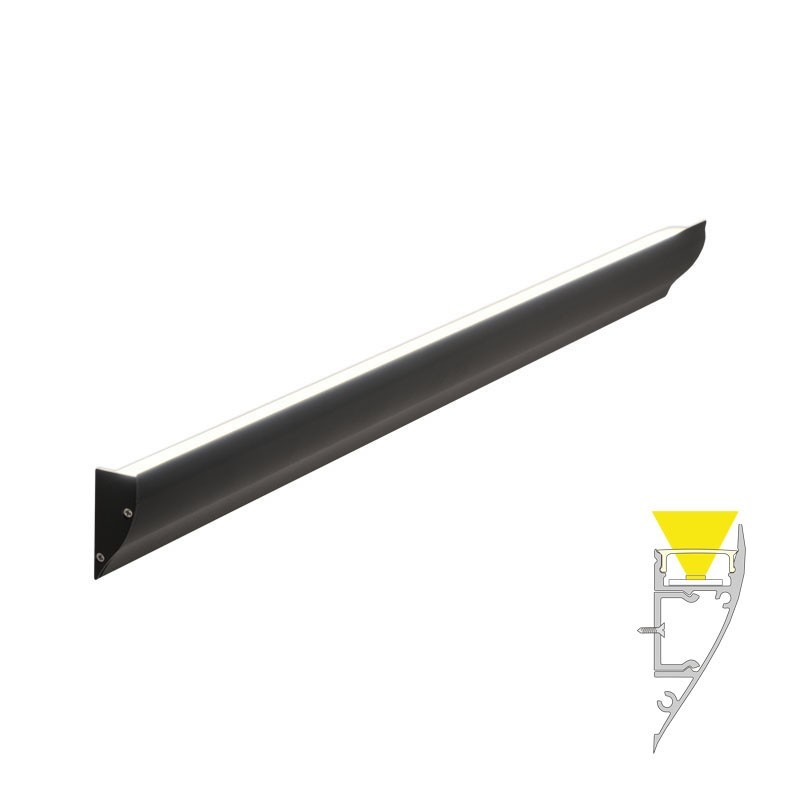

Wall-mounted profile light that can be directed upwards or downwards, available in white or black. The light can be used in both homes and public spaces where lighting such as the ceiling is desired. LED-UP is available in standard lengths of 2 m and 4 m (2+2 m), in two different colors (black, white), and in three different color temperatures (3000K, 4000K, 2700-6000K).

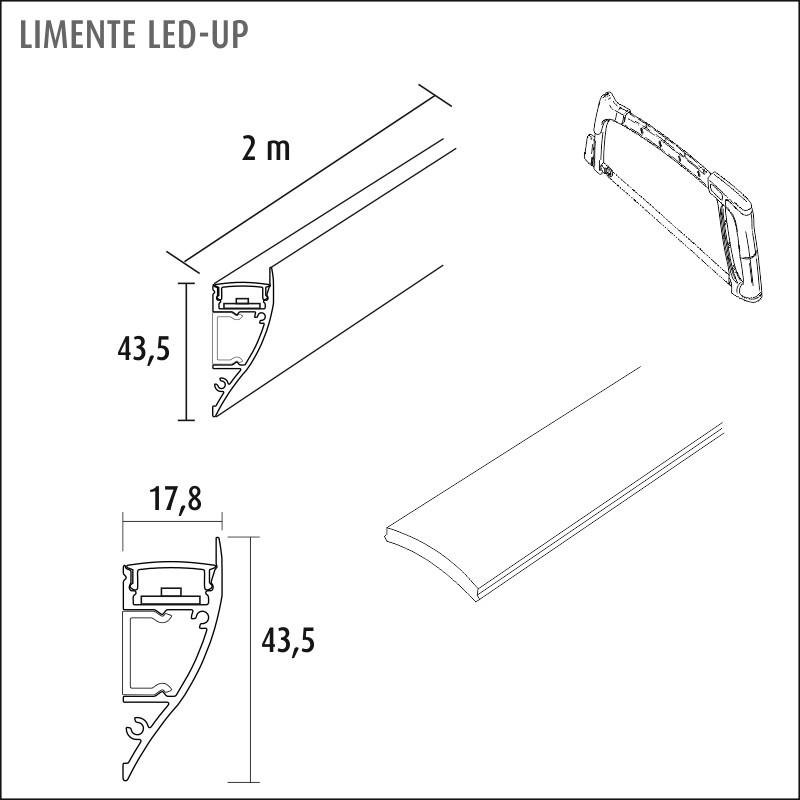

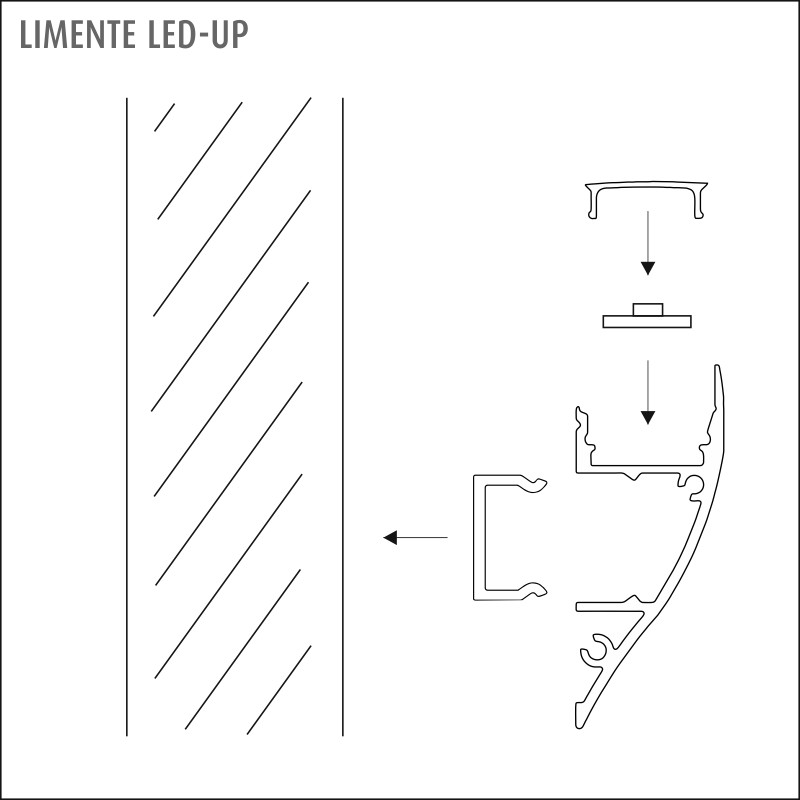

The standard lengths for LED-UP CCT are 2 m and 4 m (2+2 m). The delivery includes an aluminum profile with mounting brackets and the light strip. The aluminum profile is always 2 m in length and can be shortened. The LED-UP profile is cut to the desired length and mounted using the included mounting brackets. The light strip can be cut every approximately 6.6 cm. Both ends of the strip have power supply cables, allowing the LED-UP to be used as a full-length unit or as two separate lights.
When using LIMENTE LED-UP CCT, a compatible 24V power supply must be used. Dimmable with the LIMENTE SMART CCT dimmer (no. 640560) and wireless wall controllers (no. 640561 and 640562). The dimmer is installed between the power supply and the lights. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter90
Number of nodes per foot60
Lamp power per meter12 W
Lamp power per foot4 W
Luminous flux per meter800 lm
Voltage typeDC
Lamp voltage24-24 V
Beam angle117 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno
Exchangeable control gearno
Energy efficiency class of the light source according to EU regulation 2019/2015G
Product codes
SAPCZG376
STK4129739
PLC4129739
GTIN/EAN6438400002111
Manufacturer part number682367
Vendor material number682367
Basic information
Package measurements (L x W x H)2050 x 70 x 70 mm
Package volume10.045 l
Package weight1.66 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandLIMENTE
VendorLIMENTE OY AB
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)21.58
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameOy Limente Ab
Websitehttps://www.limente.fi
Postal addressHermannin Rantatie 2B, B9, 00580 Helsinki, Finland
