LED STRIP INSER 23,5X8,5X2000 ALU
Product code
4118868

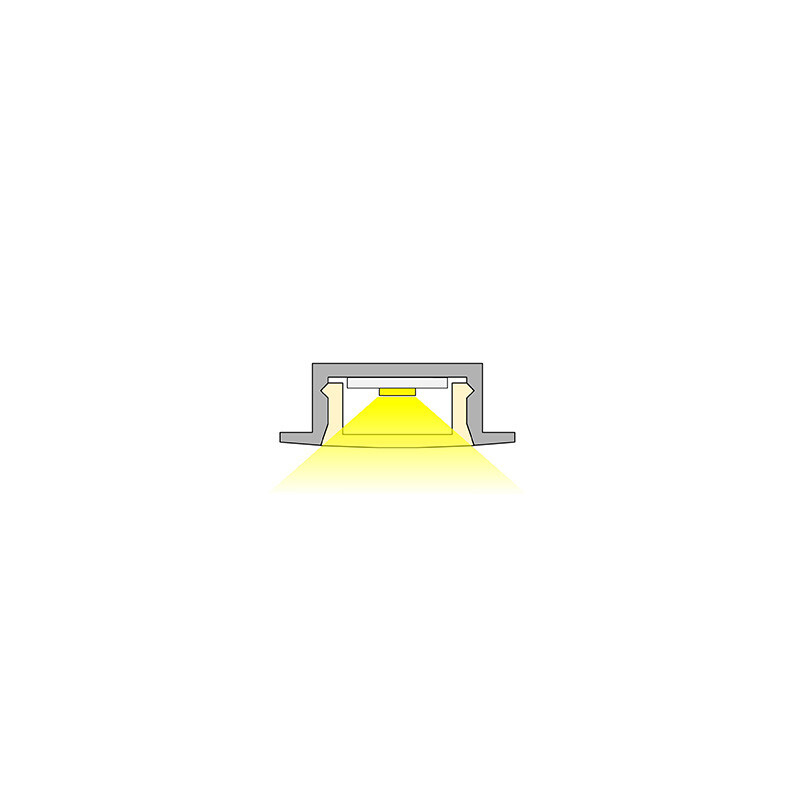

INSER aluminum profile is an aluminum profile designed for installation in furniture. The profile is recessed flush with the furniture surface, leaving only a sleek and narrow edge visible. The profile's diffuser is slightly curved, whereas in the LIMENTE INSER MINI profile it is completely straight. Applications include kitchen partitions as well as all types of shelves and surfaces requiring task lighting. Similarly, as indirect lighting, the profile can be used beneath tabletops, in baseboards, or on top of shelves/cabinets. LED-INSER is only 8.5 mm deep, enabling installation in almost any type of panel. The aluminum profile is always 2 m in length and can be cut to size. The required end caps are included with the profile.
Installing the INSER aluminum profile is easy, and the aluminum strip not only finishes the installation neatly but also extends the LED strip's lifespan by acting as a heat sink. You can choose from various options for the LED-RIBBON light strip, available in different lengths, power ratings, and protection classes. Note that the LED strip and power supplies must be ordered separately. When selecting any LIMENTE LED-RIBBON light strip and a LIMENTE SMART 350 or LIMENTE SMART 500 series dimmer, you can achieve seamless dimming of light output.
LIMENTE LED-RIBBON IP20 and LIMENTE LED-RIBBON IP44 are dimmable with the LIMENTE SMART 350 (no. 640350) and LIMENTE SMART 500 series 24 V dimmer (no. 640540), and can be controlled by wireless wall switches (no. 640541, 640542, and 640544). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mini/maxi trunking (EC000059)

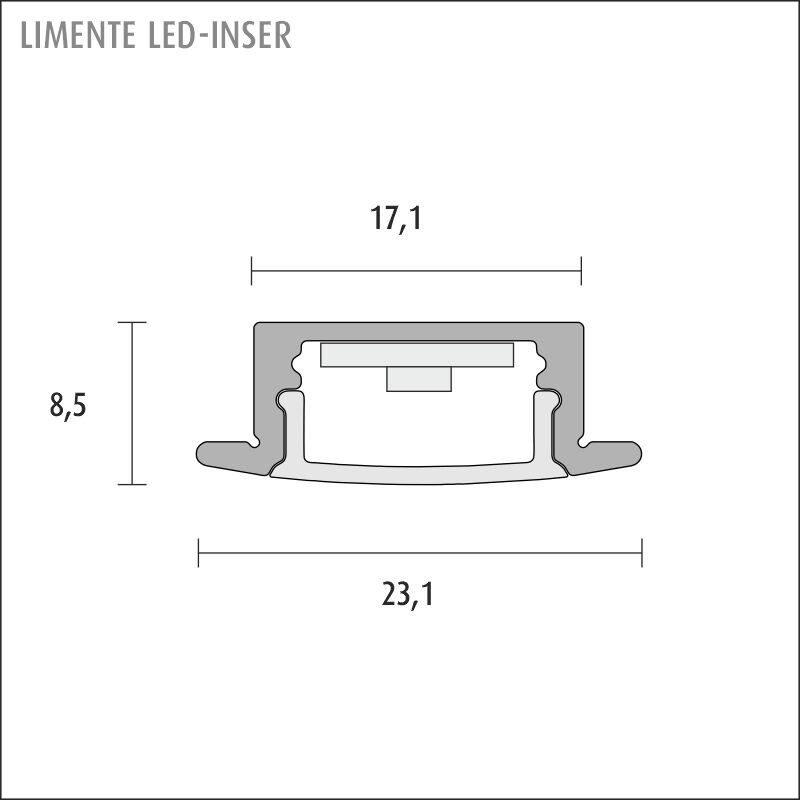

Height8.5 mm
Width23.5 mm
Length2000 mm
MaterialAluminium
Material qualityOther
Halogen freeyes
Surface protectionAnodised
Suitable for circuit integrityno
ColourAluminium
Transparentno
Type of fasteningOther
Cover modelLoose
With cable fixing clipno
With protective foilno
With duct connectorno
Product codes
SAPCZG473
STK4118868
PLC4118868
GTIN/EAN6438400000650
Manufacturer part number68901
Vendor material number68901
Basic information
Package measurements (L x W x H)2050 x 35 x 35 mm
Package volume2.511 l
Package weight0.55 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandLIMENTE
VendorLIMENTE OY AB
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)7.15
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameOy Limente Ab
Websitehttps://www.limente.fi
Postal addressHermannin Rantatie 2B, B9, 00580 Helsinki, Finland
