LED STRIP LINEA 200 17X8X200 MUS
Product code
4129610

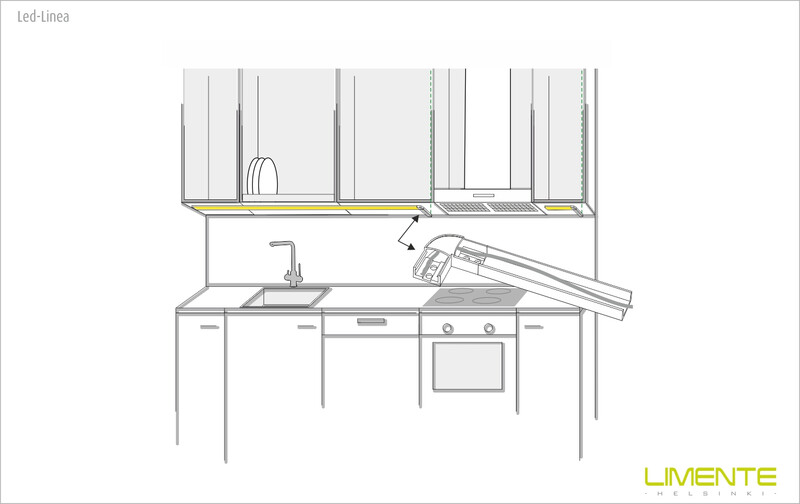

Aluminum profile LIMENTE LED-RIBBON – for mounting LED strips. The profile encloses the LED strip and allows installation in spaces such as between kitchen or bathroom cabinets. Each aluminum profile is 2 m long and can be cut to the desired length with a hacksaw or circular saw, after which the LED strip is inserted into the profile. The shorter 1 m light strip included can be used either as a light strip or as a conduit for the LED strip’s power cable.

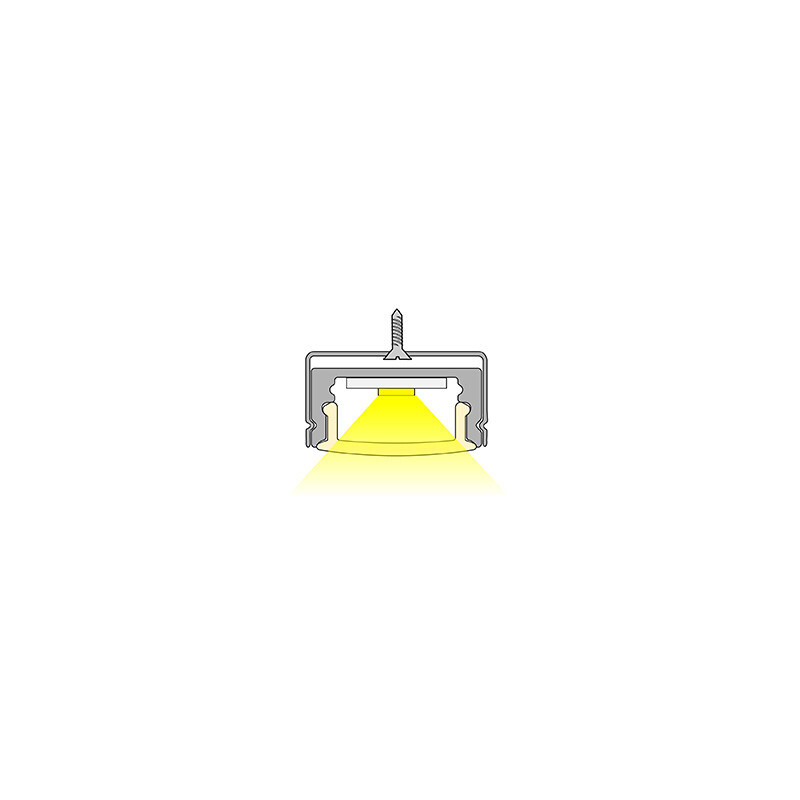

Installation of the aluminum profile is easy, and the aluminum profile not only finishes the installation neatly but also extends the lifespan of the LED strip by acting as a heat dissipation surface. The LED-RIBBON strip can be selected from various options available in different lengths, power ratings, and protection classes.
The profile comes with all necessary mounting brackets and end caps.
Delivery contents:
- aluminum profiles 2 m and 1 m
- diffuser 2 m and 1 m (cover)
- mounting brackets x 7
- end caps x 4

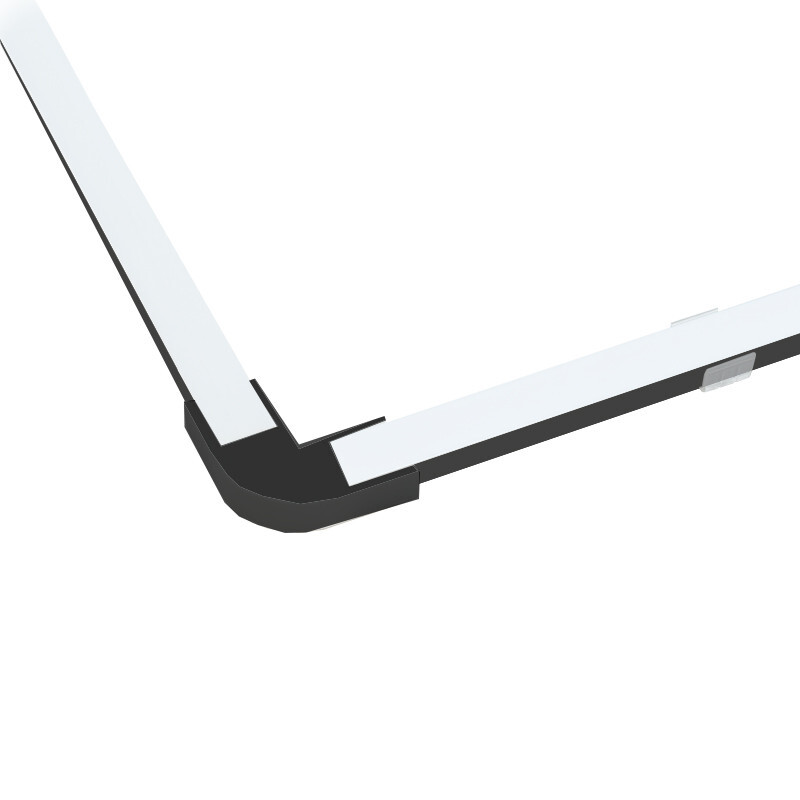

- plastic corner pieces (90°) x 3 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mini/maxi trunking (EC000059)

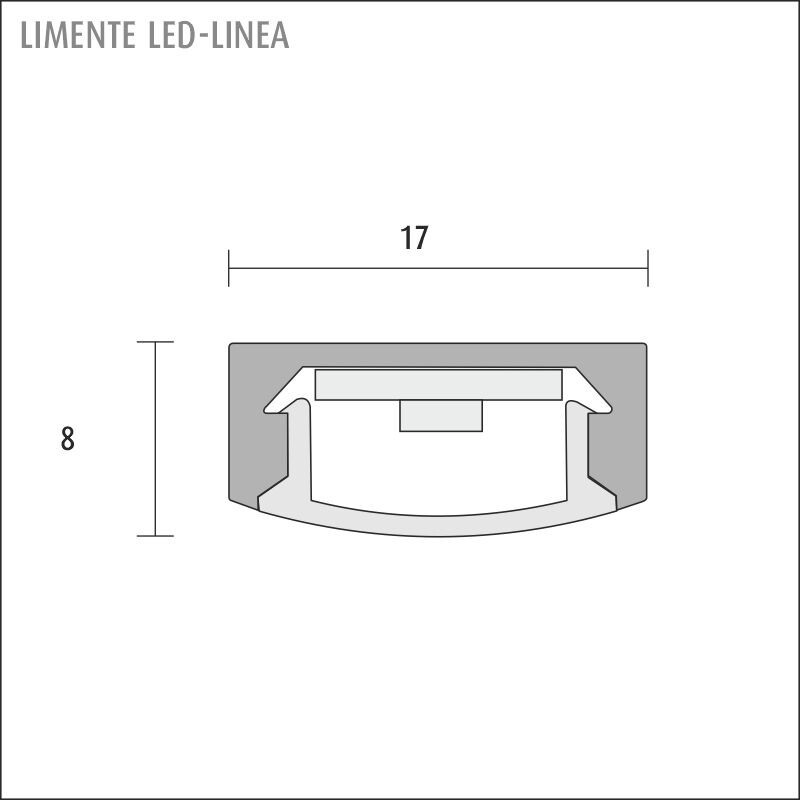

Height8 mm
Width17 mm
Length2000 mm
MaterialAluminium
Material qualityOther
Halogen freeyes
Surface protectionAnodised
Suitable for circuit integrityno
ColourBlack
Transparentno
Type of fasteningOther
Cover modelLoose
With cable fixing clipno
With protective foilno
With duct connectoryes
Product codes
SAPCZG490
STK4129610
PLC4129610
GTIN/EAN6438400005303
Manufacturer part number682306
Vendor material number682306
Basic information
Package measurements (L x W x H)2115 x 57 x 57 mm
Package volume6.872 l
Package weight0.6 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39111544
BrandLIMENTE
VendorLIMENTE OY AB
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)7.8
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameOy Limente Ab
Websitehttps://www.limente.fi
Postal addressHermannin Rantatie 2B, B9, 00580 Helsinki, Finland
