LED STRIP LUXOR 17,4X23X2000 MUS
Product code
4129607

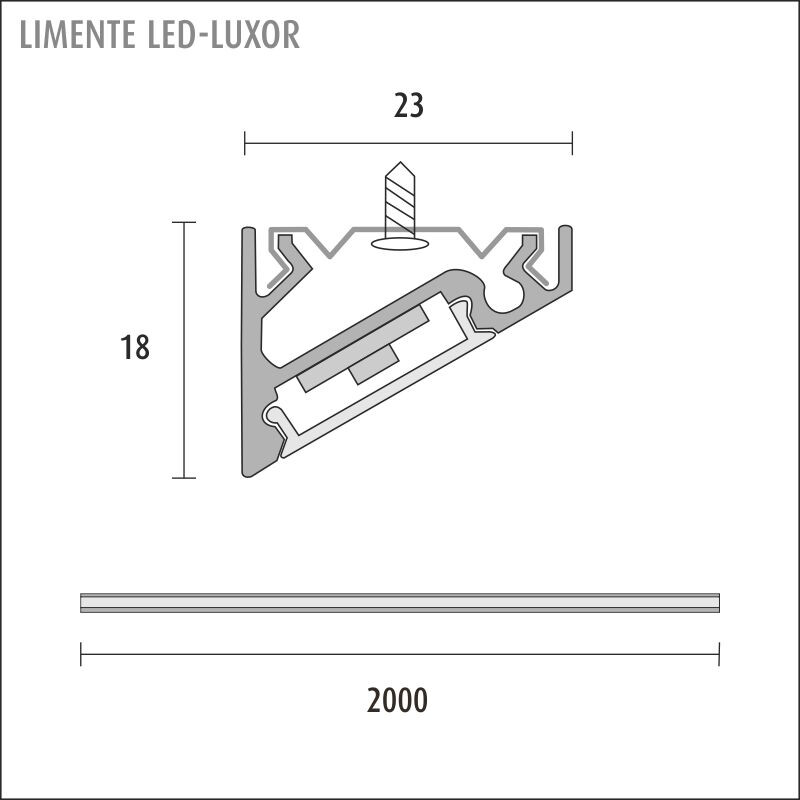

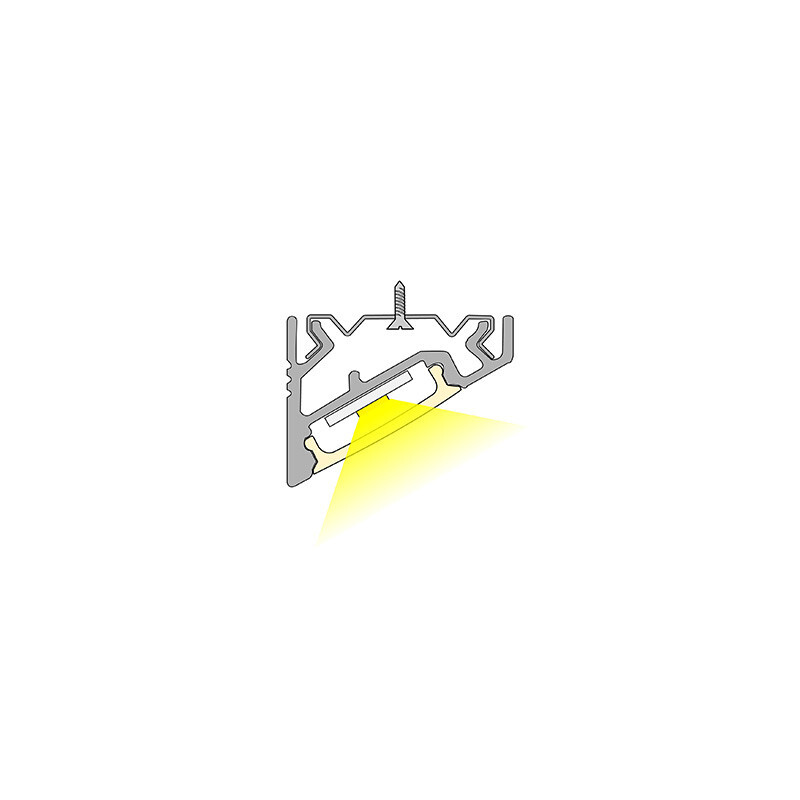

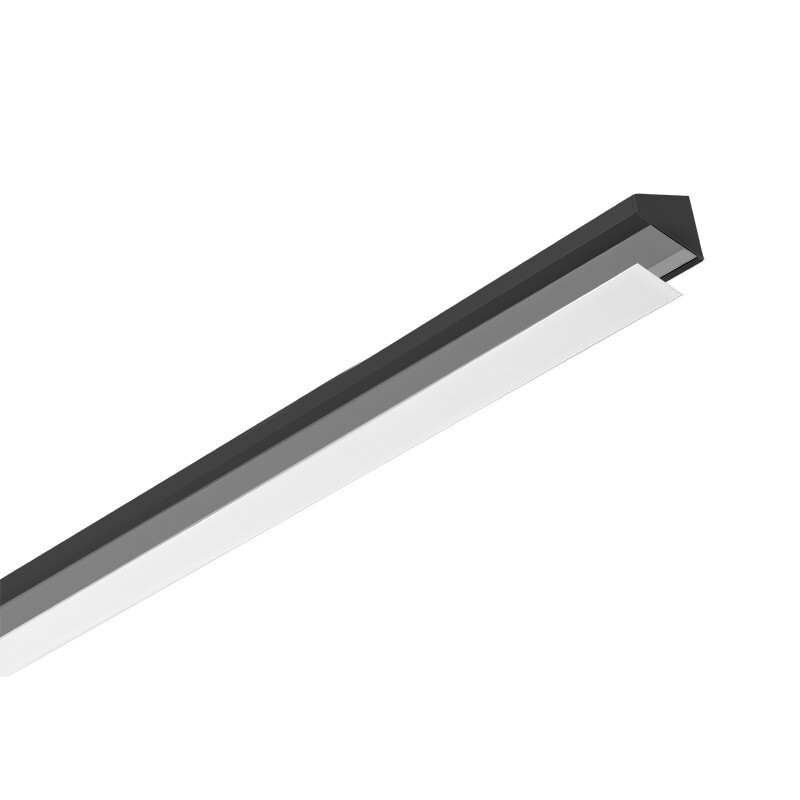

Aluminum profile for mounting LED ribbon. The profile encloses the LED strip and allows you to install it, for example, in the space between kitchen or bathroom cabinets. Each aluminum profile is 2 m long and can be cut to the desired length with a hacksaw or circular saw, after which the LED strip is inserted into the profile.
Installing the aluminum profile is easy; the aluminum channel not only finishes the installation neatly but also extends the LED strip's lifespan by acting as a heat sink. The LED-RIBBON strip can be selected from various options, available in different lengths, power ratings, and protection classes.
The profile comes with all necessary mounting clips and end caps. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mini/maxi trunking (EC000059)
Height17.4 mm
Width23 mm
Length2000 mm
MaterialAluminium
Material qualityOther
Halogen freeyes
Surface protectionCoated
Suitable for circuit integrityno
ColourBlack
Transparentno
Type of fasteningOther
Cover modelLoose
With cable fixing clipno
With protective foilno
With duct connectorno
Product codes
SAPCZG487
STK4129607
PLC4129607
GTIN/EAN6438400003651
Manufacturer part number68916
Vendor material number68916
Basic information
Package measurements (L x W x H)2070 x 25 x 25 mm
Package volume1.294 l
Package weight0.69 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandLIMENTE
VendorLIMENTE OY AB
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)8.97
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameOy Limente Ab
Websitehttps://www.limente.fi
Postal addressHermannin Rantatie 2B, B9, 00580 Helsinki, Finland
