LED STRIP RIBBON 40 DOB 36W 3000K

Product code
4158003

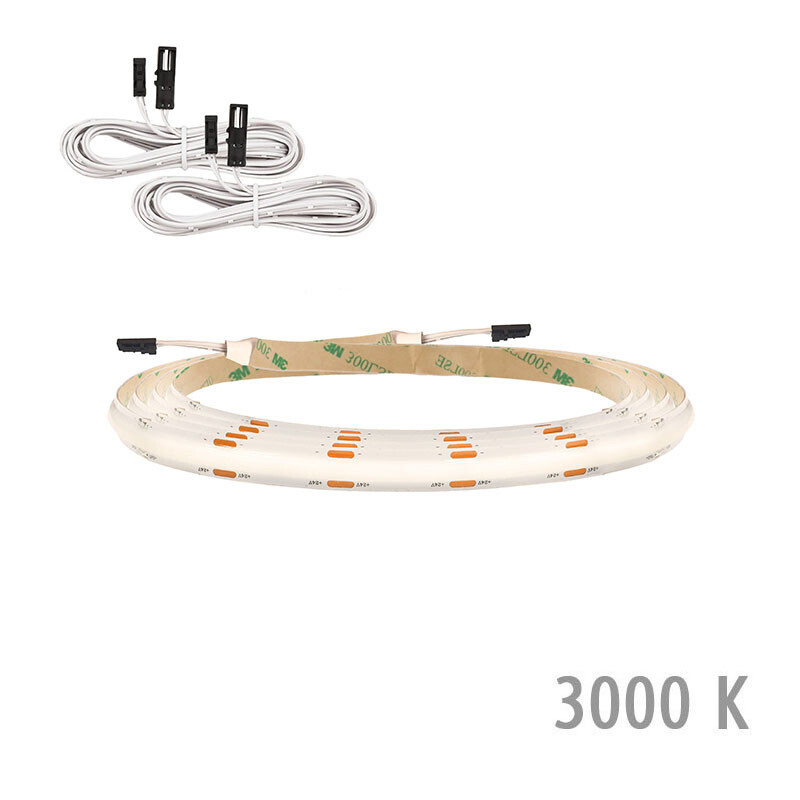

Multi-purpose and completely dot-free IP44 LED strip, LIMENTE RIBBON IP44 DOB 8 mm LED strip, belongs to the LIMENTE RIBBON product family. The new DOB technology provides a completely dot-free light that can be used in a profile even without a diffuser. RIBBON IP44 DOB is an efficient, cuttable LED strip with LEDs placed extremely close together (288 LEDs/meter). The strip is used not only for kitchen worktop lighting but also as indirect lighting behind mirrors, in skirting boards, furniture, ceilings, and anywhere a light source needs to be nearly invisible. Standard lengths for LIMENTE RIBBON DOB are 2, 3, and 4 m, and the LED strip can be cut to desired lengths at approximately 3 cm intervals, enabling various customized solutions. Only the best components are used as standard in the DOB model, offering excellent efficiency, nearly perfect color rendering (colors of the illuminated object are reproduced as naturally as possible), and color temperatures of either 3000K or 4000K. Both ends of the LED strip come standard with a fixed 5 cm cable and a detachable 300 cm cable. If this is insufficient, you can order an extension cable (3 m), product number 681588. A maximum of one extension cable can be connected per light’s cable, allowing a maximum total cable length of up to 6 meters. The power supply cables on both ends enable the RIBBON to be used in two separate sections, thus avoiding unnecessary waste and allowing installation from the power source in two different directions. The RIBBON strip must be used with a compatible 24 V power supply. Suitable options are listed with the products. Dimming and lighting control: With a stepless dimmer, it is easy to create atmosphere and new moods in a space. By dimming LIMENTE lights, you transform home lighting from bright and functional to cozy and warm. With the same controller, you can adjust all LIMENTE lights in the room, including various ceiling, panel, and recessed lights. The lights adjust smoothly and pleasantly, changing the overall ambiance of the space. LIMENTE RIBBON IP44 DOB is dimmable with the LIMENTE SMART CLASSIC, LUXUS, and GREENLINE series (24 V dimmer no. 640540 and wireless wall controllers no. 640541, 640542, 640543, 640544, 640546, and 640547). The dimmer is installed between the power supply and the lights and includes matching connectors as the power supply. Up to six LIMENTE lights can be connected to the dimmer, provided the maximum load (W) of the power supply is not exceeded. Read more about light control under PRODUCTS -- LIGHT CONTROL. LIMENTE RIBBON IP44 DOB is also dimmable with a DALI power supply (LEDDALI100). This power supply is controlled either by a 240 V DALI controller or a push-button switch, utilizing the "Push Dim" function. Installation

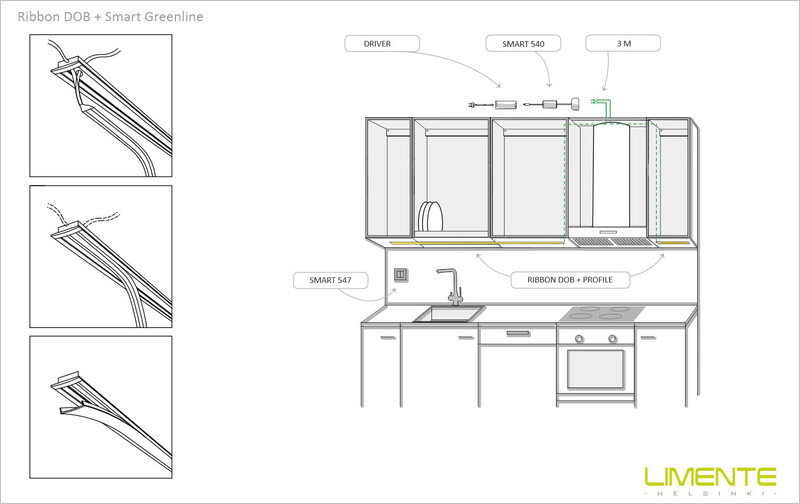

Installing the LIMENTE RIBBON IP44 DOB strip is quick and easy. The power supply cable, often hidden behind cabinets, is pre-positioned so that the male end is near the power supply and the female end is near the RIBBON DOB strip. Remove the protective film from the strip and press it firmly into place. Finally, connect the power supply cable to the strip and the power source using quick-connectors. RIBBON DOB can be cut every 3 cm, and both ends have power supply connections, allowing you to use both ends independently if needed. RIBBON DOB must always be mounted on a heat-conductive material, such as the optional aluminum profile. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter288
Number of nodes per foot88
Lamp power per meter9 W
Lamp power per foot2.7 W
Luminous flux per meter1300 lm
Voltage typeDC
Lamp voltage24 - 24 V
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno
Exchangeable control gearno
Energy efficiency class of the light source according to EU regulation 2019/2015E
Rated lifetime L70/B50 at 25 °C102000 h

Product codes

SAPDNF785
STK4158003
PLC4158003
GTIN/EAN6430022825727
Manufacturer part number628882
Vendor material number4158003

Basic information

Package measurements (L x W x H)230 x 195 x 25 mm
Package volume1.121 l
Package weight0.35 kg
Base uniteach
Package units1
Package contents
UNSPSC39111544
BrandLIMENTE
VendorLIMENTE OY AB

Environment and safety

Manufacturer

NameOy Limente Ab
Postal addressHermannin Rantatie 2B, B9, 00580 Helsinki, Finland
