LED STRIP RIBBON 40 LUX 2C 3000/4000K

Product code
4158008

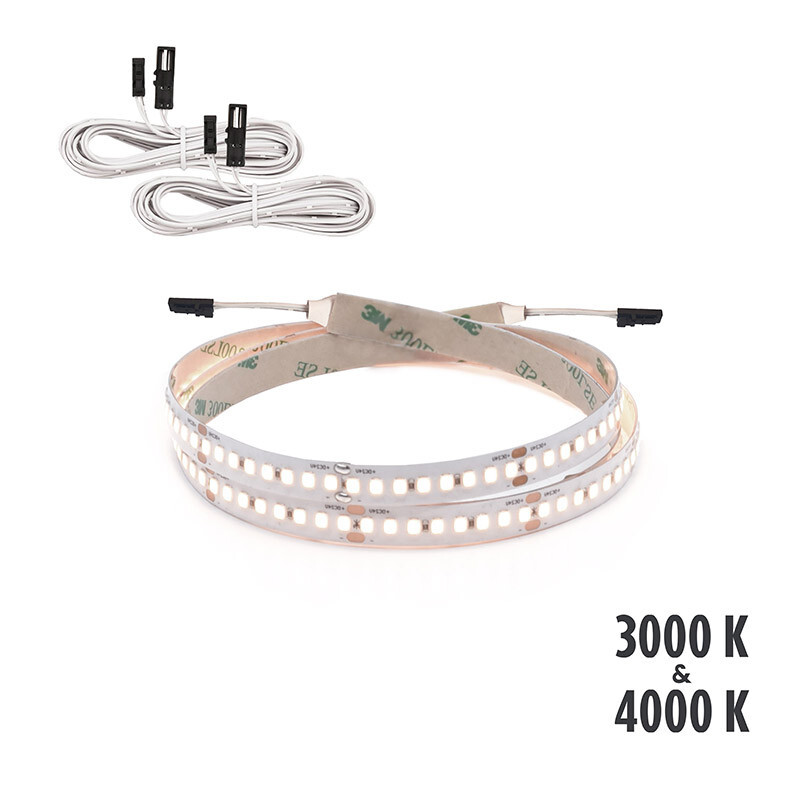

RIBBON LUX 2C is an efficient, cuttable LED strip with LEDs placed close together (192 LEDs/m). This strip is used not only for kitchen task lighting but also as indirect lighting behind mirrors, in skirting boards, furniture, ceilings, and anywhere a light source needs to be nearly invisible. The RIBBON LUX 2C LED strip offers high efficiency (126 lm/W) and excellent color rendering (CRI 90), providing the highest quality light while consuming minimal electricity. Standard lengths for LIMENTE RIBBON LUX 2C are 2 m and 4 m, and the LED strip can be cut to desired lengths at approximately 4 cm intervals, enabling various custom solutions. Both ends of the LED strip come with a fixed 5 cm cable and a detachable 300 cm cable. If this is insufficient, you can order an extension cable (3 m), product number 681588. A maximum of one extension cable can be connected per light’s cable, allowing a maximum total cable length of up to 6 meters. The power supply cables on both ends enable the RIBBON to be used in two separate sections, thus avoiding unnecessary waste and allowing installation from the power source in two different directions. The RIBBON strip must be used with a compatible 24 V power supply. Suitable options are listed with the products. A stepless dimmer makes it easy to create atmosphere and new moods in a space. By dimming LIMENTE lights, you can transform home lighting from bright and functional to warm and cozy. With the same controller, you can adjust all LIMENTE lights in the room, including various ceiling, panel, and recessed lights. The lights dim smoothly and pleasantly, changing the overall ambiance of the space. LIMENTE RIBBON LUX 2C is dimmable with the LIMENTE SMART CLASSIC, LUXUS, and GREENLINE series (24 V dimmer no. 640540 and wireless wall controllers no. 640541, 640542, 640543, 640544, 640546, and 640547). The dimmer is installed between the power supply and the lights and has matching connectors as the power supply. Up to six LIMENTE lights can be connected to the dimmer, provided the maximum load (W) of the power supply is not exceeded. For more information on light control, see PRODUCTS --> LIGHT CONTROL. LIMENTE RIBBON LUX 2C is also dimmable with a DALI power supply (LEDDALI100). This power supply is controlled either by a 240 V DALI dimmer or a push-button switch using the "Push Dim" function. Installation of the LIMENTE RIBBON LUX 2C strip is quick and easy. The power supply cable, often hidden behind cabinets, is pre-positioned so that the male end is near the power supply and the female end is near the RIBBON LUX 2C light strip. Remove the protective film from the light strip and press it firmly into place. Finally, connect the power supply cable to the light strip and the power source using quick-connectors. RIBBON LUX 2C can be cut every 4 cm and has power supply connections on both ends, allowing both ends to be used separately if needed. RIBBON LUX 2C must always be mounted on a heat-conductive material, such as the optional aluminum profile. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter192
Number of nodes per foot58
Lamp power per meter12 W
Lamp power per foot3.6 W
Luminous flux per meter1510 lm
Voltage typeDC
Lamp voltage24 - 24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno
Exchangeable control gearno
Energy efficiency class of the light source according to EU regulation 2019/2015F

Product codes

SAPDNF790
STK4158008
PLC4158008
GTIN/EAN6430022825697
Manufacturer part number630052
Vendor material number4158008

Basic information

Package measurements (L x W x H)230 x 195 x 25 mm
Package volume1.121 l
Package weight0.35 kg
Base uniteach
Package units1
Package contents
UNSPSC39111544
BrandLIMENTE
VendorLIMENTE OY AB

Documents (3)

Environment and safety

Manufacturer

NameOy Limente Ab
Postal addressHermannin Rantatie 2B, B9, 00580 Helsinki, Finland
