MOTION DETECTOR SMART 551 LX-1 SET 24V WH
Product code
2600874

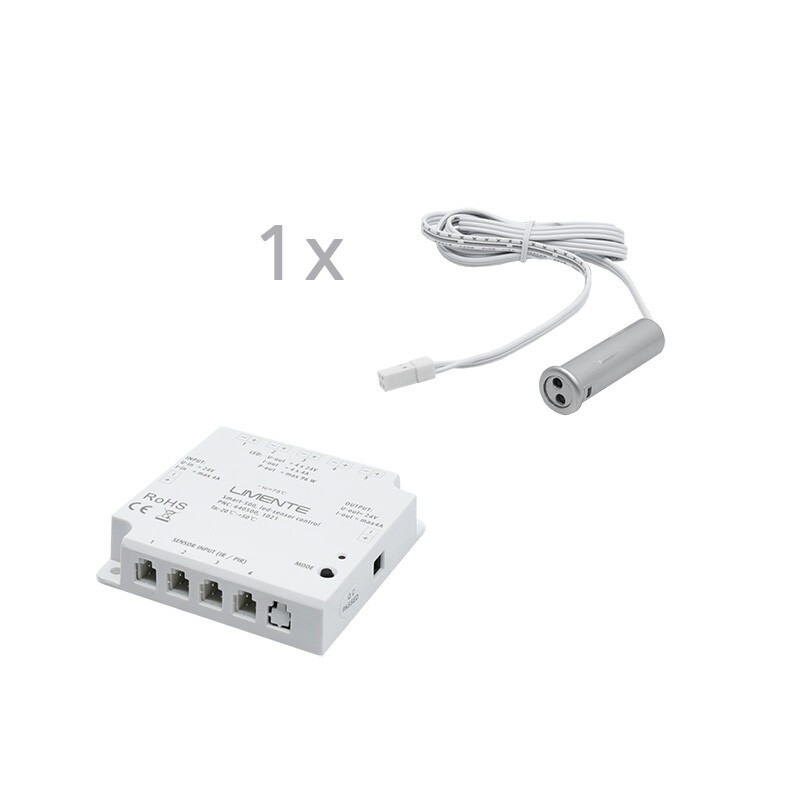

LIMENTE SMART 512 is, for example, a switch that responds to hand or door movement and is installed between the power source and the light fixture. The sensor has an infrared detector that reacts to motion. The compact sensor can be installed, for example, at the bottom of a cabinet. When moving a hand under the sensor, the lights connected behind the power source turn on, off, or dim.
The dimmers and sensors in the LIMENTE SMART 500 series are simple and quick to install and do not require separate electrical wiring. The compact dimmer features a male top push connector and integrated female connectors for both sensors and LED lights. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelMovement sensor
Constant light controlno
HVAC-controlno
Forced switch onno
Forced switch offno
Animal zoneno
Creep-under protectionno
Networkableno
Scan angle360 °
Optimum mounting height2 m
Staircase light controllerno
Bridging switchno
Max. reach sideways0.05 m
Max. reach frontally0.05 m
Suitable for wireless transmissionno
Product codes
SAPCZK961
STK2600874
PLC2600874
GTIN/EAN6438400004771
Manufacturer part number640512S1
Vendor material number640512S1
Basic information
Package measurements (L x W x H)132 x 45 x 25 mm
Package volume0.148 l
Package weight0.08 kg
Base uniteach
Package units1
Package contents–
UNSPSC46171608
BrandLIMENTE
VendorLIMENTE OY AB
Documents (2)
Images
Links
Environment and safety
Features
Motion sensorYes
Door and window sensorYes
Manufacturer
NameOy Limente Ab
Websitehttps://www.limente.fi
Postal addressHermannin Rantatie 2B, B9, 00580 Helsinki, Finland
