AIRY FRONTPLATE AIRYFP-100-SQUARE

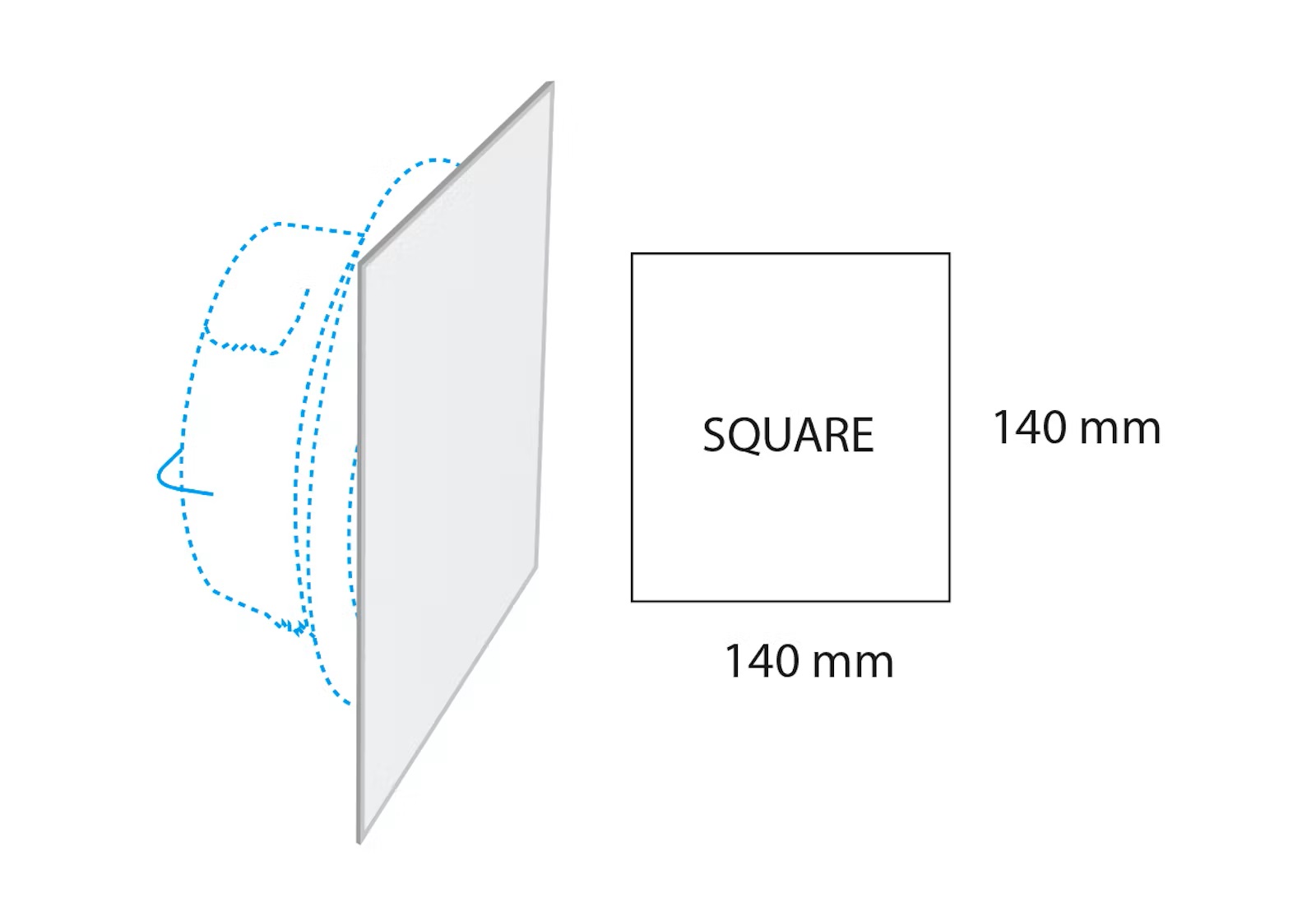

The Lindab front panel AIRYFP-100-SQUARE is designed to be mounted onto the AIRYFB body vent housing. The square flat front panel measures 140 x 140 mm and is made of durable galvanized steel. The standard color is white RAL 9003 with a gloss level of 30. The front panel is available in other colors and can be painted with wall paint or wallpapered. Lindab’s high-quality Airy vents consist of two parts: the vent housing (AIRYB) and a flat front panel (AIRYFP).

Lindab front panel AIRYFP-100-SQUARE

Lindab Airy vents have unique acoustic properties, making them suitable even for demanding applications. The adjustment cone located behind the front panel enables the use of high pressures at low noise levels. The noise data, performance, and adjustment values for the quietest vent on the market can be found in the attached files.

Five different front panel designs for the Lindab Airy vent are available in the online store: BOW – square with rounded edges, ELLIPSE – elliptical, RECTANGLE – rectangular, ROUND – circular, and SQUARE – square. Custom shapes and sizes are available upon special order to meet specific requirements.

Installation and maintenance

The Lindab front panel AIRYFP-100-SQUARE is easy to install thanks to its very simple mounting mechanism. We recommend the ILVRU type as the outlet collar. The Airy supply and exhaust air vent can also be installed into existing systems. The Airy supply and exhaust air vent extends only about 5–25 mm from the wall, making it suitable for wall or ceiling mounting and easy to attach. The vent housing is easily secured to ducts, duct fittings, and vent frames using the springs provided, but it can also be easily installed into various vent frames such as VRGU, VRGL, VRFU, and VRFM.

The Lindab front panel AIRYFP-100-SQUARE is easy to maintain and can be wiped clean with a damp cloth. The front panel can be easily removed by simply pressing it.

Explore other Lindab high-quality products and the full range available at our Express store or online shop.
