ELECTRONIC HEAT CONTROLLER LK 110 SMARTCOMFORT OT

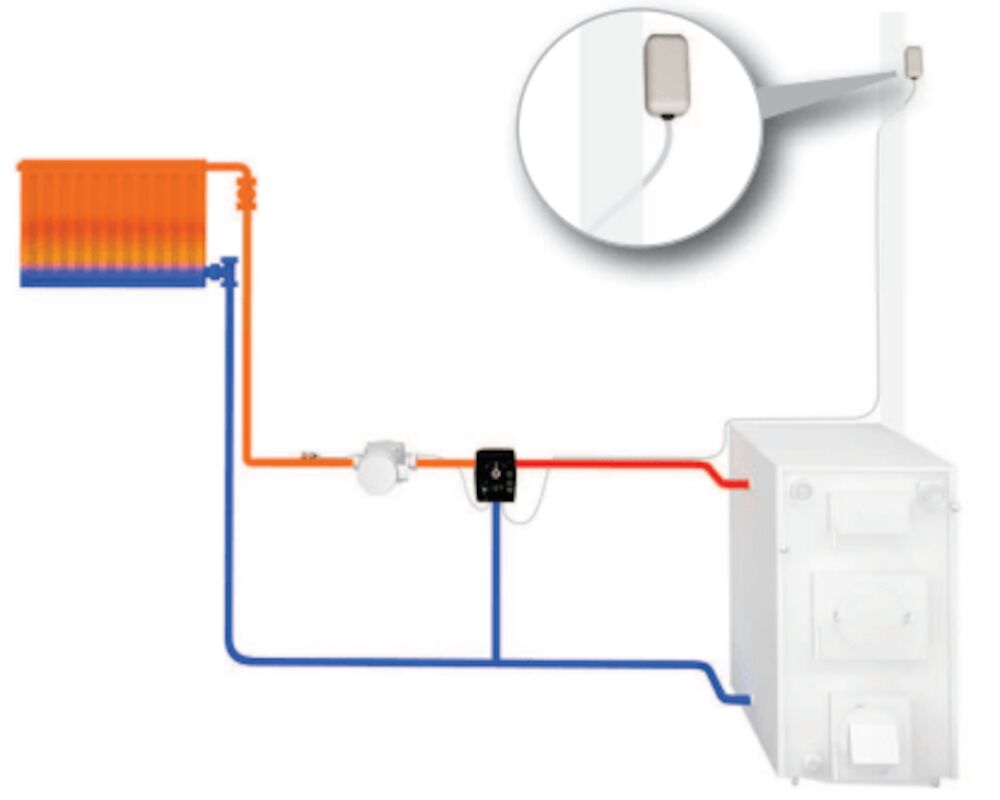

LK SmartComfort is an electronic control automation with automatic direction selection suitable for the opening direction of the mixing valve. LED lights indicate whether the motor is opening or closing the valve. The desired temperature is easily set using the + and – buttons. The selected value is displayed on the LED screen. LK SmartComfort is easy to connect to both new and existing mixing valves. A wide range of installation kits is available for connecting to mixing valves from other manufacturers. Electrical connections are made quickly and easily with plug-in connectors, eliminating the need for an electrician. In the event of a power outage, the automation saves the settings and the motor stops at its current position. When the automation is turned off, the mixing valve can be operated manually. LK 110 SmartComfort is an electronic outdoor temperature-controlled automation for hydronic heating systems. By measuring the supply water temperature and outdoor air temperature, LK 110 SmartComfort adjusts the mixing valve so that the supply water temperature of the heating system always matches the building’s heat demand. Outdoor temperature and supply water temperature can be read from the automation’s display. Technical specifications

• Primary voltage, mains device: 100–240 VAC, 50/60 Hz
• Secondary voltage, mains device: 24 VDC
• Power consumption: < 3 VA
• Environmental temperature: min. 0 °C / max. 50 °C
• Minimum supply temperature: 5–40 °C
• Maximum supply temperature: 20–99 °C
• Control range: min. 5 °C / max. 35 °C

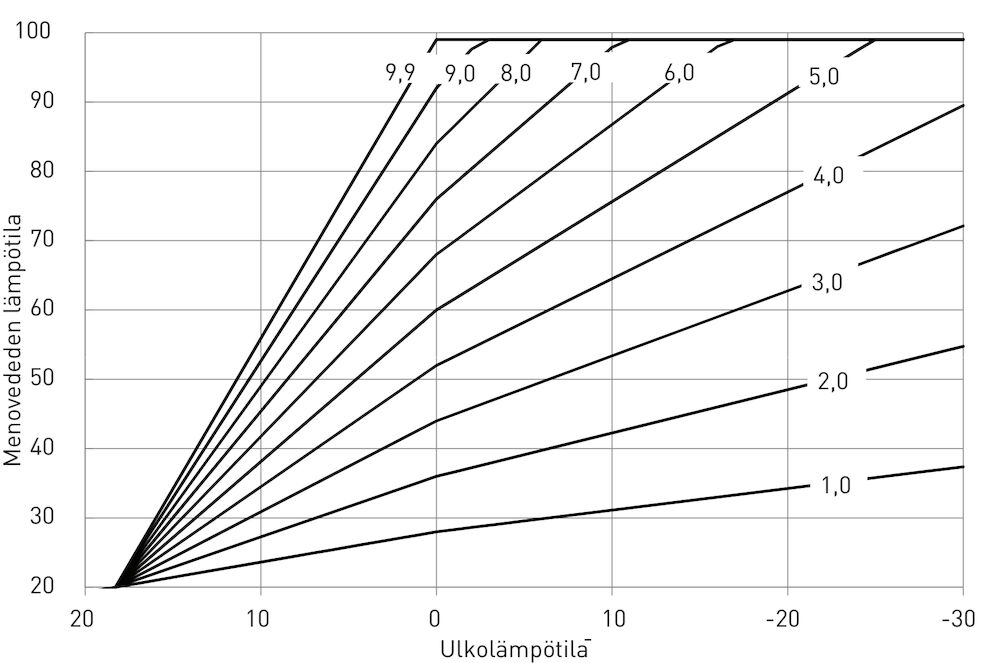

• Control curve: 1.0–9.9
• Directional shift: ± 10 °C
• Rotation angle: 90°
• Torque: 5 Nm
• Protection class: Automation: IP40, outdoor sensor: IP66
• Type approval: CE

This product description is an automated translation of the original Finnish description.
