PRESENCE INDICATOR LUXOMAT PD11-M-DACO-FLAT-FP DALI-2
Product code
2603344

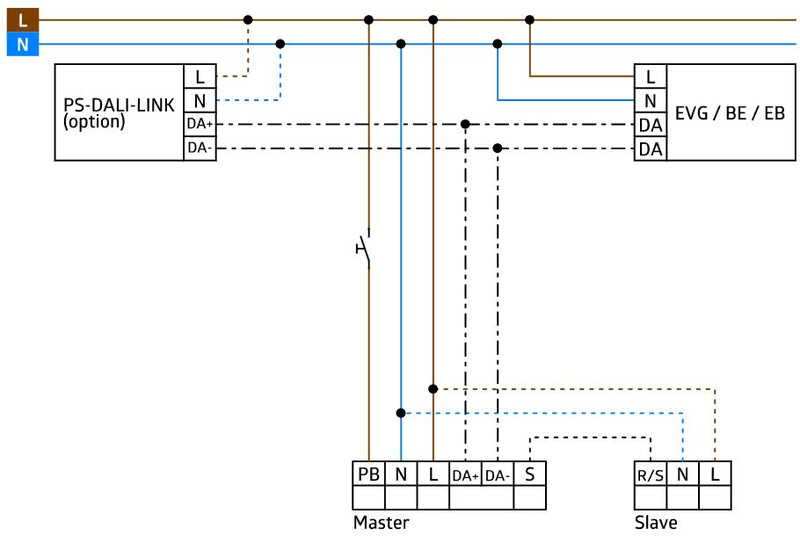

The PD11-M-DACO controls one lighting group of DALI-2 and DALI luminaires via broadcast control. The slim profile design is suitable for ceiling voids where the technology needs to be installed as inconspicuously as possible. With DACO sensors, an energy-efficient, comfortable, and user-friendly lighting solution can be easily implemented for controlling all DALI luminaires. The DACO system is an independent control solution and operates completely without central units. A simple solution for controlling lighting in typical office and learning spaces. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelPresence detector
Constant light controlyes
HVAC-controlno
Forced switch onno
Forced switch offyes
Animal zoneno
Creep-under protectionyes
Background monitoringno
Networkableno
Scan angle360 °
Optimum mounting height2.5 m
Staircase light controlleryes
Bridging switchno
Max. reach sideways4.5 m
Max. presence range7 m²
Product codes
SAPCVI946
STK2603344
PLC2603344
GTIN/EAN4007529934591
Manufacturer part number93459
Vendor material number2603344
Basic information
Package measurements (L x W x H)70 x 70 x 60 mm
Package volume0.294 l
Package weight0.1 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC46171608
BrandLUXOMAT
VendorNYLUND-GROUP OY AB
Documents (6)
Certificates
Links
Environment and safety
Sustainability categories
Energy efficiency
Features
emissions calculated according to EN 15821:2010Yes
Motion sensorYes
Wireless and remote control switchesYes
