GENERAL LUM. SURFACE DELIA 2 DELIA 2 28W 4000K PC RADAR

Delia 2 LED

• Classic general lighting fixture for dry and damp locations.

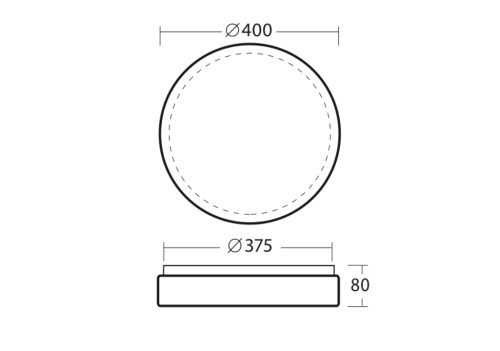

• Surface-mounted or suspended, ř400 mm.
• Durable general lighting fixture for residential and public spaces.
• Mountable on ceiling or wall surfaces for indoor or outdoor lighting.
• Available equipped with motion sensor and/or emergency lighting feature.
• Construction
• Frame: Powder-coated metal frame
• Glare shield: Opal acrylic (PMMA); also available in opal polycarbonate (PC), impact resistance 40 Nm (IK10)

Installation

• Mount on ceiling or wall surface, chain-suspended, two cable entries at base
• To junction box, mounting hole spacing 78 mm
• Surface mounting using separately ordered surface mounting frame
• Wiring
• -o- 3x2.5mm˛, controllable 5x2.5mm˛, screw terminal connector

Applications:

• Homes, schools, hotels, public spaces
• Indoor and outdoor lighting with LED module using Osram/Samsung LEDs
• LED power approx. 0.5W
• Instant start to full brightness
• Color rendering index CRI: Ra > 80
• LED module lifespan over 50,000 h

EVG = Electronic ballast DALI = Digital dimming Available with radar sensor (type designation -R)

• Duration of illumination adjustable 5-300 s
• Can be connected in series, max inductive load 400W
• Flicker-free switching
• 2-year warranty with motion sensor

Available with emergency lighting feature (type designation -T)

• Duration of illumination during power failure: 3h
• Available with 2-circuit wiring (type designation -2P)
• Dimming using partial power

Catalog features PMMA diffuser models. Also available with PC diffuser. Also available with cable suspension (IP41)

• Models Delia T2 (29 and 38 W)
• Polycarbonate or acrylic diffuser
• Cable suspension length 1m

Five-year warranty This product description is an automated translation of the original Finnish description.
