GENERAL LUM. SURFACE OMEGA 2 OMEGA 2 LED 36W 4000K PC PIR

Omega 2 LED

• Classic general lighting fixture for dry and damp locations

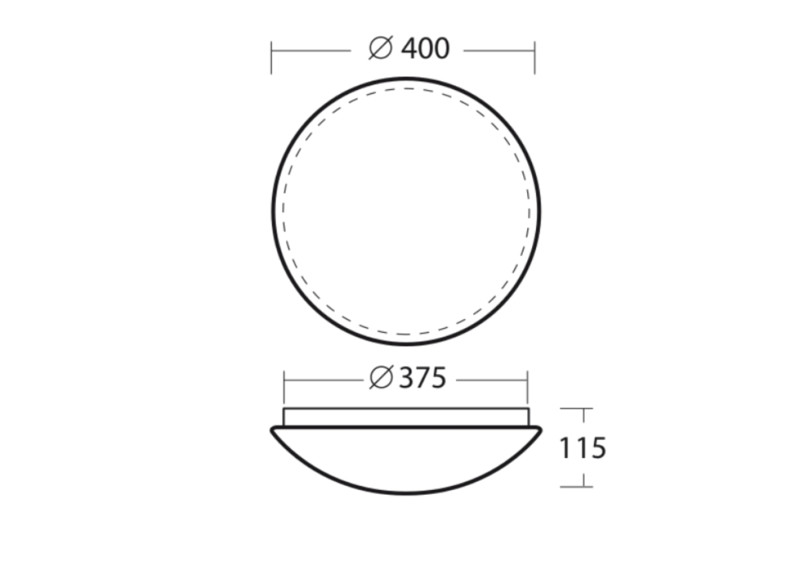

• PC/PMMA dome ř400 mm
• Surface-mounted or suspended.
• Impact-resistant general lighting fixture for residential and public spaces.
• Installation on ceiling or wall surfaces, for indoor or outdoor lighting.
• Available equipped with motion sensor and/or emergency lighting feature.

Construction Housing: Powder-coated metal housing Glare shield: Opal acrylic (PMMA)

• Also available in opal polycarbonate (PC), impact resistance 40 Nm (IK10)

Installation

• Mounting on ceiling or wall surface, chain-suspended
• Connection box, mounting hole spacing 78mm
• Available with frame for surface-mounted cable
• Connection -o- 3x2.5mm˛, controllable 5x2.5mm˛, screw terminal

Applications:

• Residences, schools, hotels, public spaces
• Indoor and outdoor lighting using Osram/Samsung LED modules
• LED power approx. 0.5W
• Instant start to full brightness
• Color rendering index CRI: Ra > 80
• LED module service life over 50,000 h

EVG = Electronic ballast DALI = Digital dimming Available with Radar sensor (R)

• Duration of illumination adjustable 5-300 s
• Can be daisy-chained, max inductive load 400W
• Flicker-free switching
• 2-year warranty with motion sensor

Available with PIR sensor, master-slave function Available with emergency lighting feature (T)

• Duration of illumination during power failure: 3h
• Also available with suspension cable
• Model Omega T2, versions 28W and 36W
• Acrylic or polycarbonate diffuser
• Suspension cable length 1m

Five-year warranty. This product description is an automated translation of the original Finnish description.
