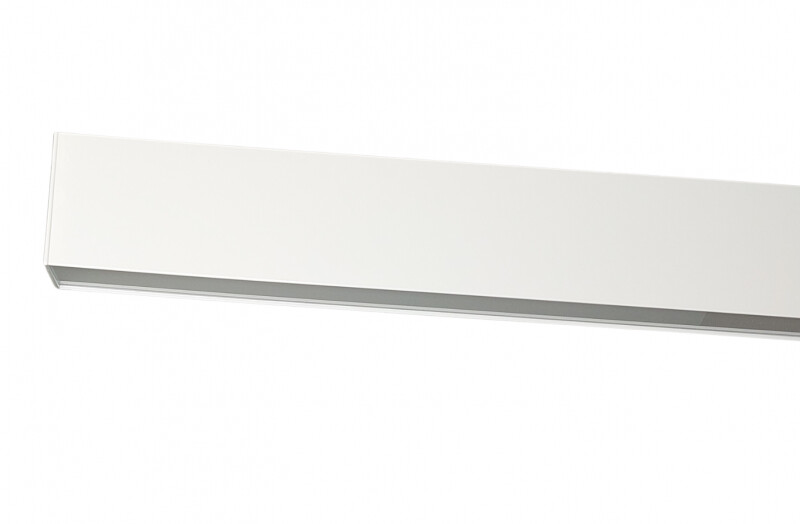

SURFACE MOUNTED/SUSPENSION L. 5021-1200-1900 4000K WH
Product code
4152638
The maintenance-free LED luminaire with aluminum profile housing, surface-mounted and designed for series connection via coupling components, manufactured in Muurama. Basic features:
- Optics options: microprism, opal acrylic, clear lens, or daisy optics
- Clear lens available with integrated optics (30, 60, 90°)
- Unidirectional asymmetric light distribution possible in any lens configuration (default opal)
- Standard power outputs: 1800, 3100, or 5600 lm per meter (A, B, C), or custom selectable (500 - 5000 lm/m)
- Color temperature options: 3000, 4000 (default), and 6500 Kelvin; also available on request: 2700 or 5000 K
Photometric specifications:
- Osram linear LED modules
- CRI 80, available on request >90
- DALI available on request, also tunable white available
- Luminaire efficacy approx. 130 lm/W
Mechanical specifications:
- Width 70 mm, height 80 mm
- Luminaire lengths: 600, 900, 1200, 1500, 2400, and 3000 mm
(see installation instructions for further details) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
No technical specifications available
Product codes
SAPDJL078
STK4152638
PLC4152638
GTIN/EAN6429811156906
Manufacturer part numberM5021120A4KV
Vendor material number4152638
Basic information
Package measurements (L x W x H)1230 x 130 x 110 mm
Package volume17.589 l
Package weight3.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandM-LIGHT
VendorM-LIGHT OY
The country of origin stated by the supplierFinland
