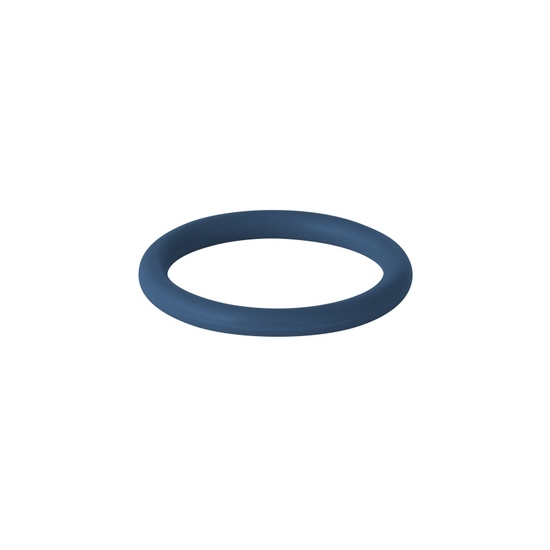

O-RING FKM OIL/SOLAR 22 BLUE MAPRESS

The Geberit Mapress crimp connection system consists of a system pipe, a fitting, and an O-ring. Thanks to the crimp connection, the system is mechanically robust, and the O-ring ensures tightness. The Geberit Mapress crimp connection system offers options for transporting various media. The O-ring is selected based on the medium to be transported.

The blue Geberit Mapress O-ring (FKM) is suitable for both solar energy and industrial applications. It is appropriate for various oil applications, including the transport of solar energy fluids, mineral oil, and heating oil. The operating temperature range for the blue O-ring is -30 to +180 °C.

Geberit Mapress O-ring 22 mm blue FKM applications and properties

• industrial gases
• district heating water up to 140 °C
• heat exchangers (solar)
• mineral oils
• fuels
• compressed air (oil cleanliness class 0 - X)
• solar energy technology, industry, and shipbuilding
• pipe sizes ř 76.1–108 mm exclusively for Geberit Mapress Carbon Steel, Geberit Mapress Stainless Steel, and Geberit Mapress CuNiFe products
• DN 20
• inner diameter: 22 mm

Other components for Geberit Mapress systems are also available from Onninen's online store and Express outlets.
