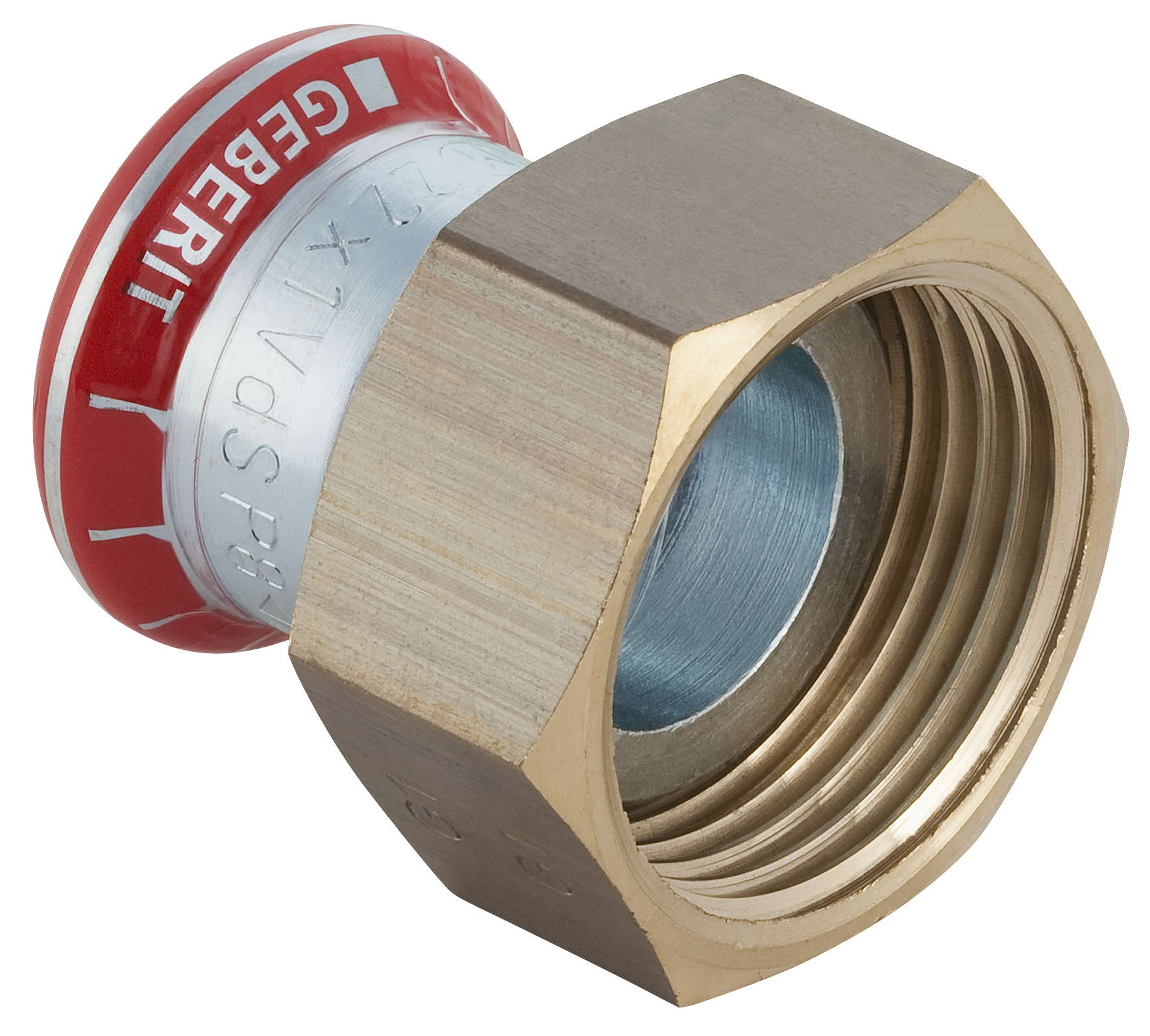

PRESS ADAPTER WITH FT ZN 35x1 1/2 UNION NUT MAPRESS

Product code
0482587
Geberit Mapress is an efficient system suitable for transporting various materials. Geberit's compression fitting technology ensures reliable and leak-proof connections. Thanks to highly compatible components, the system is durable. The Geberit Mapress system consists of Mapress compression fittings, system pipes, system valves, and compression tools. Geberit Mapress carbon steel Carbon steel Geberit Mapress components are used for heating, sprinklers, and industrial applications. Compression of Geberit Mapress carbon steel components is effortless and rapid, as the strength and tightness of the compression joint are achieved through cold working. This avoids exposing the joint to open flame and heat, as in soldering or welding, and eliminates the need for fire safety measures. Non-compressed joints are easily identifiable during inspection and pressure testing due to leakage caused by the O-ring design and the compression indicators. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Steel
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Galvanic/electrolytic zinc plated
Surface treatment connection 1Untreated
Material connection 2Steel
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Galvanic/electrolytic zinc plated
Surface treatment connection 2Untreated
ShapeStraight
Bend angle0 °
Reducingno
System specificyes
Nominal diameter connection 1DN 32
Outer pipe diameter connection 135 mm
Wall thickness, connection 11.5 mm

Product codes

SAPCAD178
HPAC0482587
PLC0482587
GTIN/EAN4024723250364
Manufacturer part number25036
Vendor material number0482587

Basic information

Package measurements (L x W x H)63 x 43 x 43 mm
Package volume0.116 l
Package weight0.28 kg
Base uniteach
Package units5 / 50
Package contents
UNSPSC40171702
BrandMAPRESS
VendorGEBERIT OY

Documents (3)

Environment and safety

Manufacturer

NameGeberit International AG
Postal addressSchachenstrasse 77 CH-8645 Jona
