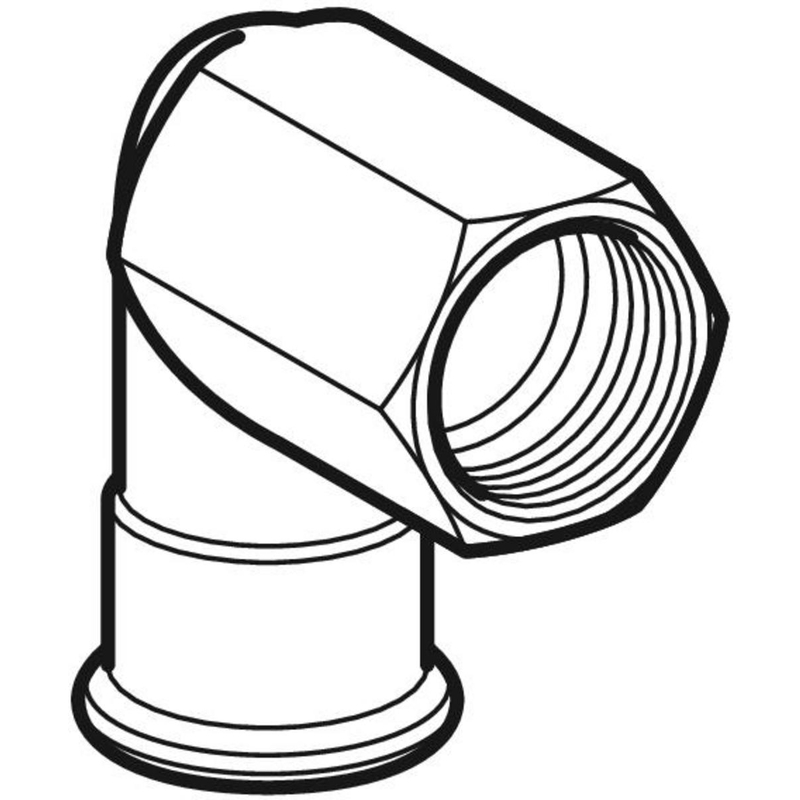

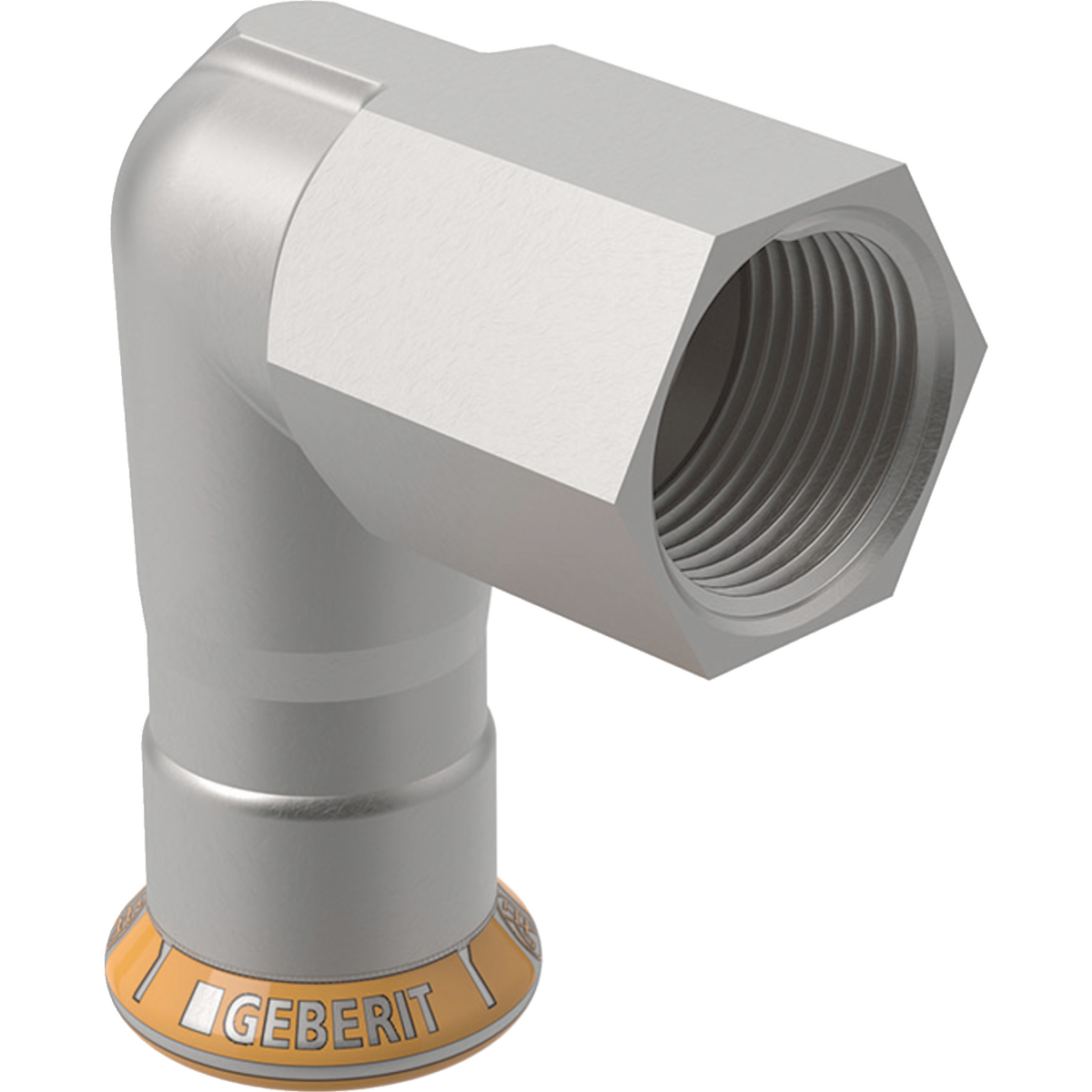

PRESS BEND 90 WITH FT SS 15x1/2 MAPRESS THERM

Product code
1273668

The low-alloy stainless steel Geberit Mapress Therm system is a corrosion-resistant and cost-effective solution for closed heating and cooling circuits, i.e., applications where moisture cannot always be avoided. Not suitable for potable water systems.

In cooling systems, temperature differences between the contents of the pipes and the external environment can lead to condensation. Potential corrosion risks in heating pipes include moisture from cement-based materials, insufficient drying times, and accidental exposure to construction-site moisture. Geberit Mapress Therm offers an ideal solution for these applications with cost-effective pricing without major modifications.

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeElbow (fitting)
Bend angle90 °
Reducingno
System specificno
Nominal diameter connection 1DN 12
Outer pipe diameter connection 115 mm
Connection 1Press sleeve
Nominal diameter connection 21/2 inch (15)
Connection 2Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

Product codes

SAPDDA192
HPAC1273668
PLC1273668
GTIN/EAN4025410097262
Manufacturer part number43803
Vendor material number1273668

Basic information

Package measurements (L x W x H)70 x 50 x 23 mm
Package volume0.081 l
Package weight0.114 kg
Base uniteach
Package units1 / 5 / 50
Package contents
UNSPSC40172607
BrandMAPRESS
VendorGEBERIT OY

Environment and safety

Manufacturer

NameGeberit International AG
Postal addressSchachenstrasse 77 CH-8645 Jona
