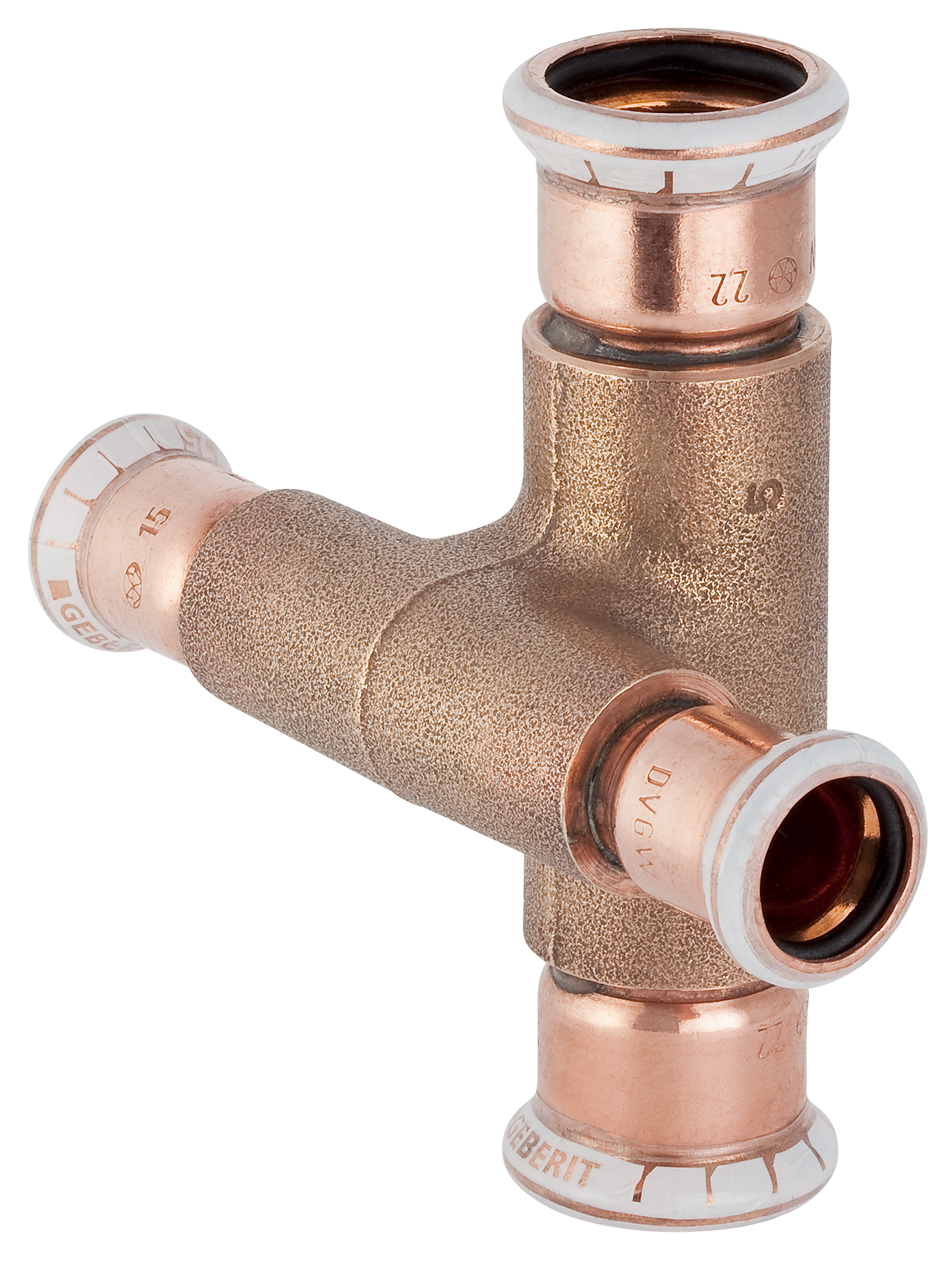

PRESS PIPE CROSS F/F CU 22x15 MAPRESS

Geberit Mapress is an efficient system suitable for transporting various materials. Geberit’s crimping technology ensures reliable and leak-proof connections. Thanks to highly compatible components, the system is durable. The Geberit Mapress system consists of Mapress crimp fittings, system pipes, system valves, and crimping tools. Geberit Mapress copper

Geberit Mapress copper components are used for domestic water, heating, and industrial applications. Crimping Geberit Mapress copper components is effortless and fast, as the strength and tightness of the crimp connection are achieved through cold working. This eliminates exposure to open flame and heat, as in soldering, and eliminates the need for fire safety measures. Un crimped connections are easily detected during inspection or pressure testing using crimp indicators and defined leak points. Geberit Mapress copper system components can be used up to 120 °C (180 °C in solar energy applications) and withstand pressures up to 1.6 MPa (16 bar).

Geberit Mapress copper reduced cross fitting 22x15 properties and dimensions

• DN 20/12
• d, ř: 22 mm
• d1, ř: 15 mm
• L: 10.8 cm
• L1: 11 cm
• L2: 2.5 cm
• I: 5.4 cm
• I1: 5.5 cm
• Z: 3.4 cm
• Z1: 3.4 cm
• material: Cu-DHP copper CW024A (EN 1412)

Also explore other Geberit Mapress system components and other Geberit products available at Onnisen online store and Express outlets.
