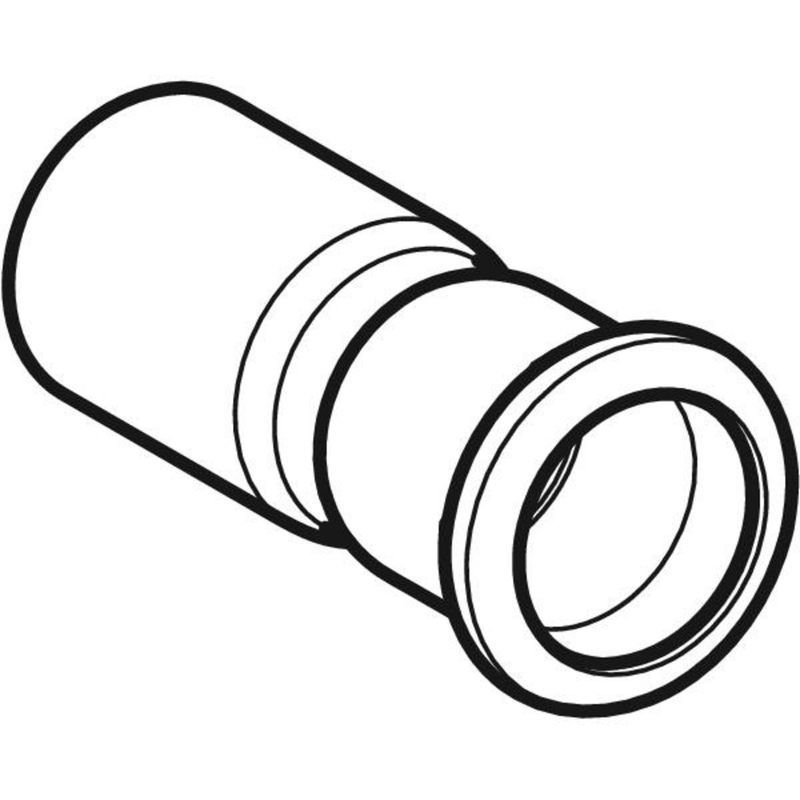

PRESS REDUCER M/F SS 108x76,1 MAPRESS THERM
Product code
1273617
The low-alloy stainless steel Geberit Mapress Therm system is a corrosion-resistant and cost-effective solution for closed heating and cooling circuits, i.e., applications where moisture cannot always be avoided. Not suitable for potable water systems.
In cooling systems, temperature differences between the contents of the pipes and the external environment can lead to condensation. Potential corrosion risks in heating pipes include moisture from cement-based materials, insufficient drying times, and accidental exposure to construction-site moisture. Geberit Mapress Therm offers an ideal solution for these applications with cost-effective pricing without major modifications.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Bend angle0 °
Reducingyes
System specificno
Nominal diameter connection 1DN 100
Outer pipe diameter connection 1108 mm
Connection 1Press sleeve
Nominal diameter connection 2DN 65
Outer pipe diameter connection 276.1 mm
Product codes
SAPDDA141
HPAC1273617
PLC1273617
GTIN/EAN4025410096753
Manufacturer part number42446
Vendor material number1273617
Basic information
Package measurements (L x W x H)190 x 108 x 108 mm
Package volume2.216 l
Package weight0.989 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC40172607
BrandMAPRESS
VendorGEBERIT OY
Documents (7)
Brochures & documents
Links
Environment and safety
Manufacturer
NameGeberit International AG
Postal addressSchachenstrasse 77 CH-8645 Jona
