SERVICE MANIFOLD MASTERCOOL 2-WAY DIGITAL BLACK SERIES

Product code
K8401130

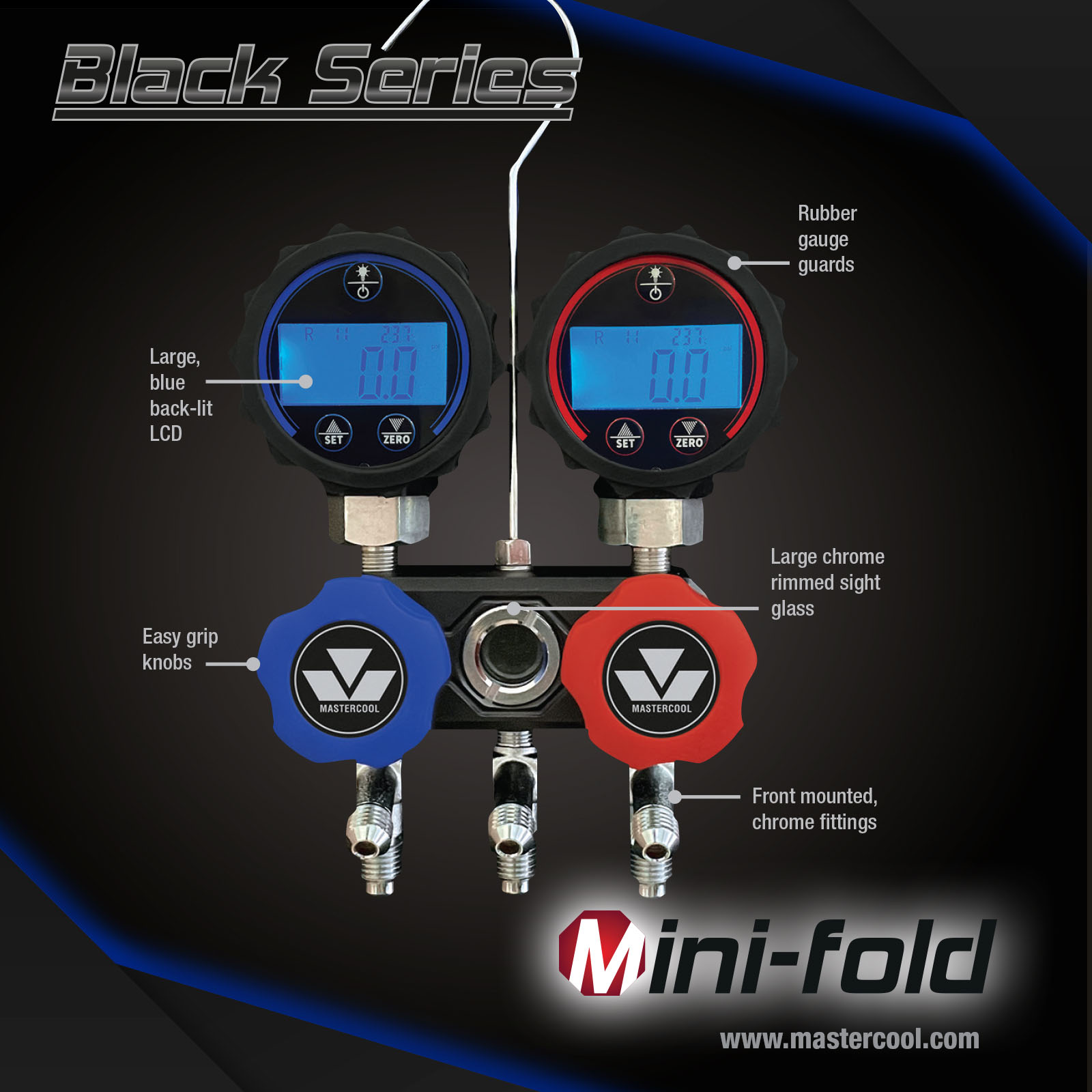

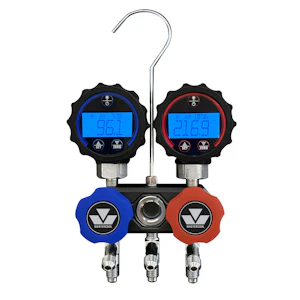

Mastercool's compact Black Series Compact 2-Way Digital Manifold Gauge Set effortlessly performs pressure and temperature calculations and displays them on a large blue backlit LCD screen. This compact multi-function gauge is constructed from premium materials and precision-engineered to the highest quality standards. It offers automatic shut-off, unit conversion, over-range alarm, maximum and minimum values, and refrigerant selection, making it an efficient tool for hardworking technicians.

Features
  • Compact black anodized aluminum block with matte chrome fittings provides an extremely portable solution for every busy technician
  • Easily perform pressure/temperature calculations for up to 91 different refrigerants, including R134a, R410a, and R32
  • Unit conversion between MPa, kPa, bar, psi, kg/cm˛, inHg
  • Large 4-digit "blue" backlit LCD display provides clear readings even in the darkest environments
  • Displays over-range alarm, Celsius or Fahrenheit scale, and low battery warning directly on the LCD screen
  • Large inspection window for quick visual refrigerant checks
  • Easily gripped knobs
Includes refrigerants: R12, R1234yf, R1234ze, R124, R125, R134a, R141B, R142B, R413A, R152A, R21, R218, R22, R23, R290, R32, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R406A, R407A, R407B, R407C, R407D, R407E, R407F, R408A, R409A, R409B, R410A, R410B, R412A, R413A, R414A, R414B, R415B, R416A, R417A, R419A, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R423A, R427A, R437A, R438A, R441A, R442A, R443A, R444A, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R454C, R455A, R470B, R471A, R472A, R50, R500, R502, R503, R504, R507A, R508A, R508B, R509A, R513A, R515B, R600, R600a, R601, R601a, R740, R744 (80bar) Technical Specifications
  • Pressure Range:
  • Low Pressure Range: -14.5 – 500 psi (-0.1 – 3.4 MPa)
  • High Pressure Range: -14.5 – 800 psi (-0.1 – 5.5 MPa)
  • Resolution: 0.5 psi
  • Accuracy: +/-0.5 % FS
  • Units: MPa, kPa, bar, psi, kg/cm˛, inHg
  • Temperature Unit: ?C/?F
  • Over-range Alarm: Display -OL-
  • Operating Temperature: -10?C – 60?C
  • Battery: CR2450
  • Battery Life: Approximately 6 months
  • Sampling Rate: This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Type of refrigerantMultiple
Carrying casefalse

Product codes

SAPDID702
PLCK8401130
Manufacturer part number94103
Vendor material number94103

Basic information

Package measurements (L x W x H)270 x 110 x 210 mm
Package volume6.237 l
Package weight0.9 kg
Base uniteach
Package units1
Package contents
UNSPSC40141621
BrandMASTERCOOL
VendorMASTERCOOL EUROPE N.V.
