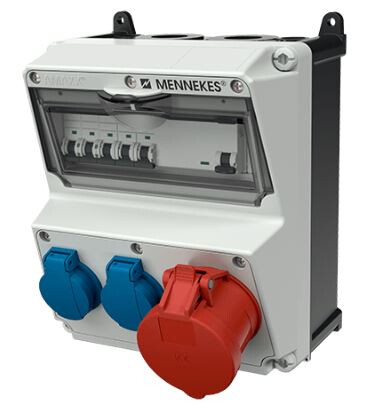

COMBINATION UNIT 92422 245X160MM1X32A2XSCHUKO
Product code
2425310
With the AMAXX® socket center, connection is performed intelligently, saving valuable installation time. Only one supply line, fewer drilling holes, fewer cables and pipe fittings, and just one externally mounted enclosure enable installation by a single person. The hinged side-opening enclosure cover, retractable mounting rails, and ample connection space simplify installation.
AMAXX® is pre-wired for connection, and its electrical safety and quality have been verified in accordance with the IEC 61439 standard. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE socket outlet combination (IEC 60309) (EC000379)
CEE socket outlet 16 ANone
CEE socket outlet 32 A1x32A5p400V
CEE socket outlet 63 ANone
CEE socket outlet 125 ANone
Number of socket outlets with protective contact CEE 7/3 (type F)2
Number of socket outlets Danish standard (earthing pin, type K)0
Number of socket outlets Swiss standard type 130
Number of socket outlets Swiss standard type 150
Number of socket outlets Swiss standard type 230
Number of socket outlets Swiss standard type 250
Other fixtures and/or empty locations0
ProtectionOvercurrent switch
Leakage current typeA
Earth leakage switchEarth leakage switch with IFN 30 mA (standard)
Housing materialPlastic
Product codes
SAPABV327
STK2425310
PLC2425310
GTIN/EAN4015394223146
Manufacturer part number920015
Vendor material number920015
Basic information
Package measurements (L x W x H)260 x 230 x 230 mm
Package volume13.754 l
Package weight3.9 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (4)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
