CONNECTOR 746 16A7P 6H400V-IP44
Product code
2424564

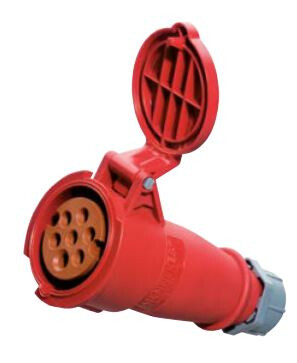

Connector AM-TOP, 16A7p6h400V, IP44
Extension socket AM-TOP 7467 plug-in extension socket 16A 400V.
- screw terminals
- highly heat-resistant contact covers
- nickel-plated contacts
- one-piece housing
- cable entry and seal
- strain relief and twist protection This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE coupling (IEC 60309) (EC001320)
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Number of poles7
Voltage according to EN 60309-2380-415 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP44
Connection systemScrewed terminal
Insert directionStraight
Cable entryGland nut
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated
Military modelno
Product codes
SAPABV212
STK2424564
PLC2424564
GTIN/EAN4015394005735
Manufacturer part number746
Vendor material number746
Basic information
Package measurements (L x W x H)165 x 100 x 77 mm
Package volume1.271 l
Package weight0.27 kg
Base uniteach
Package units1 / 10 / 840
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
