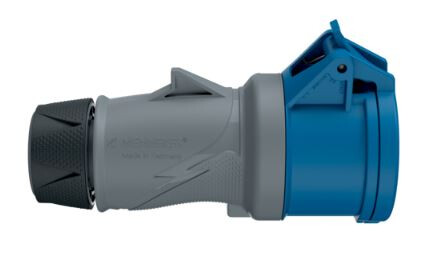

EXTENTION S-O POWERTOPXTRA 14509 16A5P 9h230V IP54
Product code
2425123
One product family for all applications – the PowerTOP® Xtra product family now also covers 16 A currents. New 16 A variants for professional to professional:
- 3 P plugs and extension sockets
- 5 P plugs and extension sockets for different voltages
- 5 P plugs and extension sockets with heat-resistant and nickel-plated contacts
Regardless of configuration and application area, all PowerTOP® Xtra plugs impress with proven and tested features: ergonomic design, ease of installation, safe and easy connection, and X-CONTACT® inside. Thanks to innovative contact pins, connecting and disconnecting is light and effortless. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE socket outlet (IEC 60309) (EC001321)
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Number of poles5
Voltage according to EN 60309-2230 V (50+60 Hz) blue
Clock hour position9 h
Identification colourBlue
RAL-number5007
Degree of protection (IP)IP54
Connection systemScrewed terminal
Cable entryGland nut
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated
Insulated mountingno
Lockableno
Product codes
SAPCMI099
STK2425123
PLC2425123
GTIN/EAN4015394293927
Manufacturer part number14509
Vendor material number14509
Basic information
Package measurements (L x W x H)174 x 98 x 69 mm
Package volume1.177 l
Package weight0.215 kg
Base uniteach
Package units1 / 10 / 880
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (5)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
