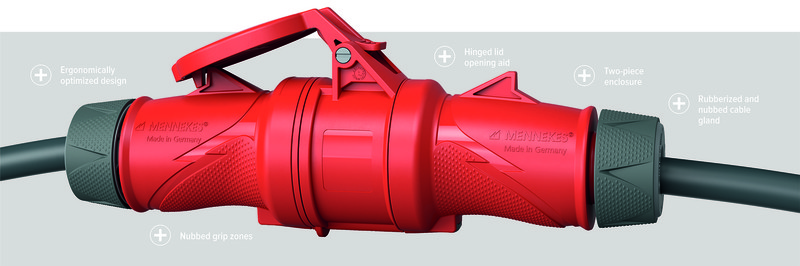

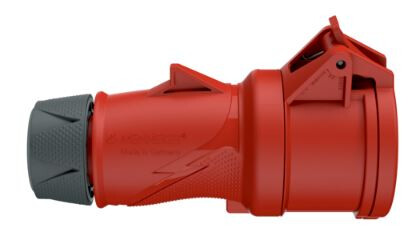

EXTENTION S-O POWERTOPXTRA 14520 32A5P 6h400V IP54
Product code
2425118
PowerTOPXtra Redesigned extension cord. The range includes screw connection versions and quick-connect versions. High-quality and durable product. Screw connection ergoCONTACT. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE coupling (IEC 60309) (EC001320)
IEC-amperage32 A
Amperage according to UL/CSA (for UL-version)30 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP54
Connection systemScrewed terminal
Insert directionStraight
Cable entryGland nut
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated
Military modelno
Product codes
SAPCLJ756
STK2425118
PLC2425118
GTIN/EAN4015394289364
Manufacturer part number14520
Vendor material number14520
Basic information
Package measurements (L x W x H)205 x 65 x 60 mm
Package volume0.8 l
Package weight0.42 kg
Base uniteach
Package units1 / 10 / 540
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (5)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
