EXTENTION S-O POWERTOPXTRA 14561 16A5P 4h110V IP54
Product code
2425133

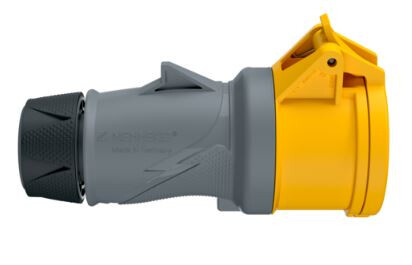

PowerTOP® Xtra R – with ErgoCONTACT® screw connection – featuring heat-resistant and nickel-plated contacts. One product family for all applications – the PowerTOP® Xtra product family now also covers 16 A currents. New 16 A product variants for professional to professional:
- 3 P plugs and extension sockets
- 5 P plugs and extension sockets for different voltages
- 5 P plugs and extension sockets with heat-resistant and nickel-plated contacts
Regardless of assembly and application area, all PowerTOP® Xtra plugs impress with proven and tested features: ergonomic design, ease of installation, safe and easy connection, and X-CONTACT® inside. Thanks to innovative contact pins, connection and disconnection are light and effortless. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE socket outlet (IEC 60309) (EC001321)
Mounting methodSurface mounted
IEC-amperage16 A
Number of poles5
Voltage according to EN 60309-2110 V (50+60 Hz) yellow
Clock hour position4 h
Identification colourYellow
Degree of protection (IP)IP54
Connection systemScrewed terminal
Cable entryGland nut
MaterialPlastic
Surface treatment contactsNickel-plated
Insulated mountingno
Lockableno
Text fieldno
Military modelno
Product codes
SAPCMT627
STK2425133
PLC2425133
GTIN/EAN4015394293958
Manufacturer part number14561
Vendor material number14561
Basic information
Package measurements (L x W x H)180 x 100 x 70 mm
Package volume1.26 l
Package weight0.3 kg
Base uniteach
Package units1 / 10 / 1120
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (5)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
