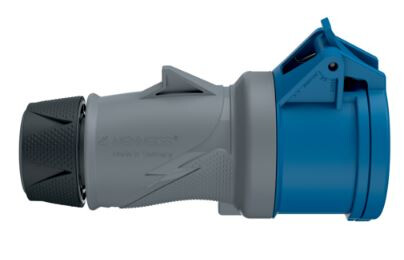

EXTENTION S-O POWERTOPXTRA 14562 16A5P 9h230V IP54
Product code
2425134
PowerTOP® Xtra R – with ErgoCONTACT® screw connection – featuring heat-resistant and nickel-plated contacts. One product family for all applications – the PowerTOP® Xtra product family now also covers 16 A currents. New 16 A product variants for professional to professional:
- 3 P plugs and extension sockets
- 5 P plugs and extension sockets for different voltages
- 5 P plugs and extension sockets with heat-resistant and nickel-plated contacts
Regardless of assembly and application area, all PowerTOP® Xtra plugs impress with proven and tested features: ergonomic design, ease of installation, safe and easy connection, and X-CONTACT® inside. Thanks to innovative contact pins, connection and disconnection are light and effortless. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE socket outlet (IEC 60309) (EC001321)
Mounting methodSurface mounted
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Number of poles5
Voltage according to EN 60309-2230 V (50+60 Hz) blue
Clock hour position9 h
Identification colourBlue
RAL-number5007
Degree of protection (IP)IP54
Connection systemScrewed terminal
Cable entryGland nut
MaterialPlastic
Contact materialCuZn
Surface treatment contactsNickel-plated
Insulated mountingno
Product codes
SAPCMT626
STK2425134
PLC2425134
GTIN/EAN4015394293965
Manufacturer part number14562
Vendor material number14562
Basic information
Package measurements (L x W x H)180 x 100 x 70 mm
Package volume1.26 l
Package weight0.3 kg
Base uniteach
Package units1 / 10 / 1120
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
