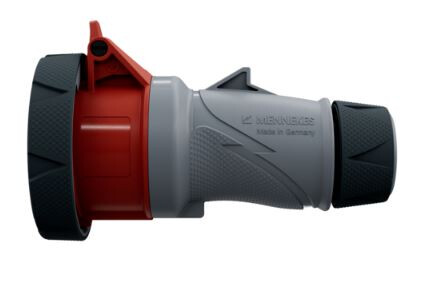

EXTENTION S-O POWERTOPXTRA 14629 32A5P 6h400V IP67/IP69
Product code
2425175
PowerTOP® Xtra extension cord. Robust technology for demanding environmental conditions. PowerTOP® Xtra extension cords make an impression with their features: ergonomic design, easy installation, safe and quick connection.
PowerTOP® Xtra family extension cords meet protection class IP67/IP69, providing protection not only against temporary immersion but also against high-pressure washing.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)CEE socket outlet (IEC 60309) (EC001321)
Mounting methodSurface mounted
IEC-amperage32 A
Amperage according to UL/CSA (for UL-version)30 A
Number of poles5
Voltage according to EN 60309-2380-415 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Housing colourGrey
Degree of protection (IP)IP67
Connection systemScrewed terminal
Cable entryGland nut
MaterialPlastic
Surface treatment contactsUntreated
Insulated mountingyes
Product codes
SAPDIK756
STK2425175
PLC2425175
GTIN/EAN4015394302476
Manufacturer part number14629
Vendor material number14629
Basic information
Package measurements (L x W x H)220 x 120 x 120 mm
Package volume3.168 l
Package weight0.51 kg
Base uniteach
Package units1 / 10 / 10 / 540
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.5505
GWP, uniteach
Source for GWP dataEandoX
Responsible party
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
