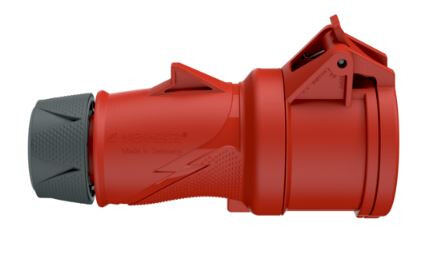

EXTENTION S-OUTL POWERTOP XTRA 14522 - 16A5P6H400V IP54
Product code
2425113

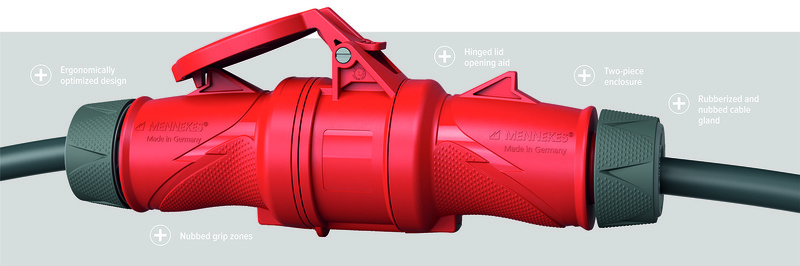

PowerTOPXtra Redesigned extension cord. The range includes both screw connection and quick-connect versions. High-quality and durable product. Quick-connects SafeCONTACT. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE coupling (IEC 60309) (EC001320)
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP54
Connection systemScrewless terminal
Insert directionStraight
Cable entryGland nut
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated
Military modelno
Product codes
SAPCIR502
STK2425113
PLC2425113
GTIN/EAN4015394289333
Manufacturer part number14522
Vendor material number2425113
Basic information
Package measurements (L x W x H)180 x 100 x 75 mm
Package volume1.35 l
Package weight0.3 kg
Base uniteach
Package units1 / 10 / 880
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.3401
GWP, uniteach
Source for GWP dataEandoX
Responsible party
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
