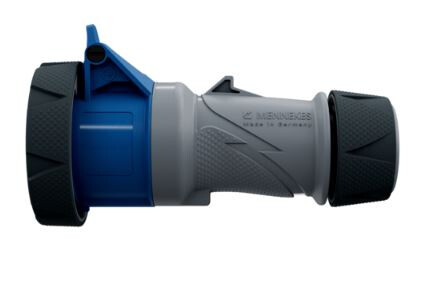

EXTENTION SOCKET-OUTLET PXTRA 14620 16A3P6H230V IP67/IP69
Product code
2425181
PowerTOP® Xtra extension cord. Robust technology for demanding environmental conditions. PowerTOP® Xtra extension cords make an impression with their features: ergonomic design, easy installation, safe and quick connection.
PowerTOP® Xtra family extension cords meet protection class IP67/IP69, providing protection not only against temporary immersion but also against high-pressure washing.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)CEE socket outlet (IEC 60309) (EC001321)
Mounting methodSurface mounted
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Number of poles3
Voltage according to EN 60309-2200-250 V (50+60 Hz) blue
Clock hour position6 h
Identification colourBlue
RAL-number5007
Housing colourGrey
Degree of protection (IP)IP67
Connection systemScrewed terminal
Cable entryGland nut
MaterialPlastic
Surface treatment contactsUntreated
Insulated mountingno
Product codes
SAPDJT561
STK2425181
PLC2425181
GTIN/EAN4015394302438
Manufacturer part number14620
Vendor material number14620
Basic information
Package measurements (L x W x H)167 x 73 x 89 mm
Package volume1.085 l
Package weight0.24 kg
Base uniteach
Package units10 / 100 / 1120
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
