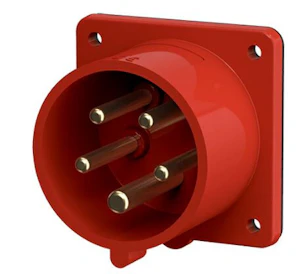

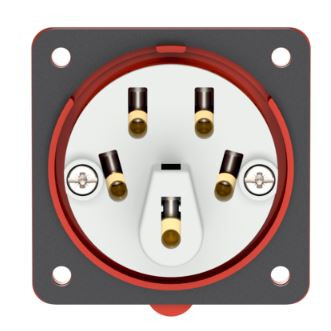

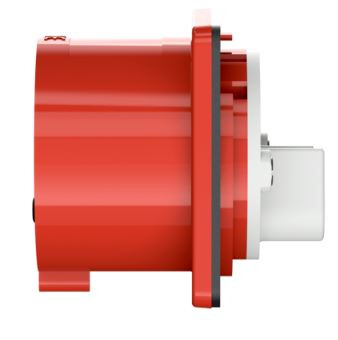

PANEL MOUNTED INLET 1409 32A5P 6H400V - IP44
Product code
2424625
Uppo-asenteinen kojevastake 32A 5P 400V. Laipan koko 78x72 ja siinä reikäväli 52x52. Ruuviliittimet. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE appliance inlet (IEC 60309) (EC001319)
IEC-amperage32 A
Amperage according to UL/CSA (for UL-version)30 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage399-400 V
Rated frequency50-60 Hz
Number of poles5
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP44
Connection systemScrewed terminal
Construction typeBuilt-up device plug
Phase inverterno
Insert directionStraight
MaterialPlastic
Product codes
SAPABV230
STK2424625
PLC2424625
GTIN/EAN4015394010395
Manufacturer part number1409
Vendor material number1409
Basic information
Package measurements (L x W x H)82 x 78 x 78 mm
Package volume0.499 l
Package weight0.172 kg
Base uniteach
Package units1 / 10 / 1520
Package contents–
UNSPSC26121538
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (5)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
