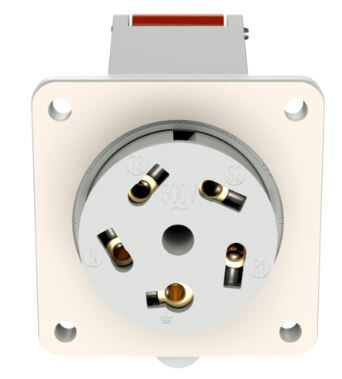

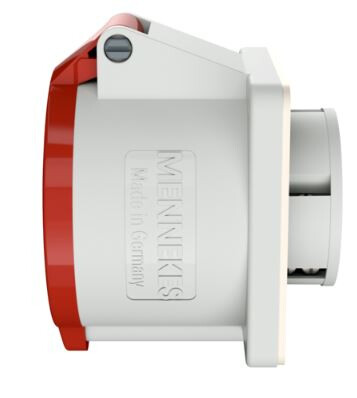

PANEL MOUNTED RECEPTACLE 1276 32A5P400V IP44
Product code
2424986
Panel mounted recept. TA, 32A5p 6h400V
IP66-rated power socket 32A 5P 400V. Cover size 75x75 mm with hole spacing 60x60 mm. Screw terminals. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Panel-mounted CEE socket outlet (IEC 60309) (EC001317)
IEC-amperage32 A
Amperage according to UL/CSA (for UL-version)30 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage399 - 400 V
Rated frequency50 - 60 Hz
Number of poles5
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP44
Connection systemScrewed terminal
Insert directionStraight
MaterialPlastic
Military modelno

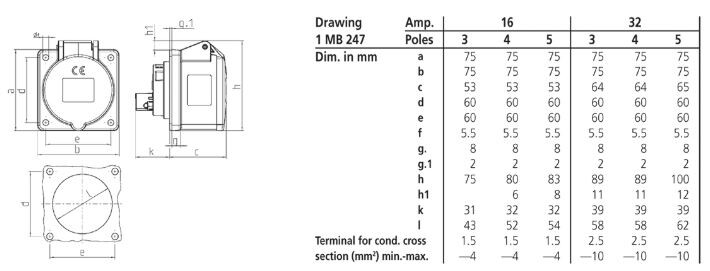

Flange size vertical75 mm
Product codes
SAPACT223
STK2424986
PLC2424986
GTIN/EAN4015394009139
Manufacturer part number1276
Vendor material number1276
Basic information
Package measurements (L x W x H)95 x 75 x 78 mm
Package volume0.556 l
Package weight0.218 kg
Base uniteach
Package units1 / 10 / 880
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
